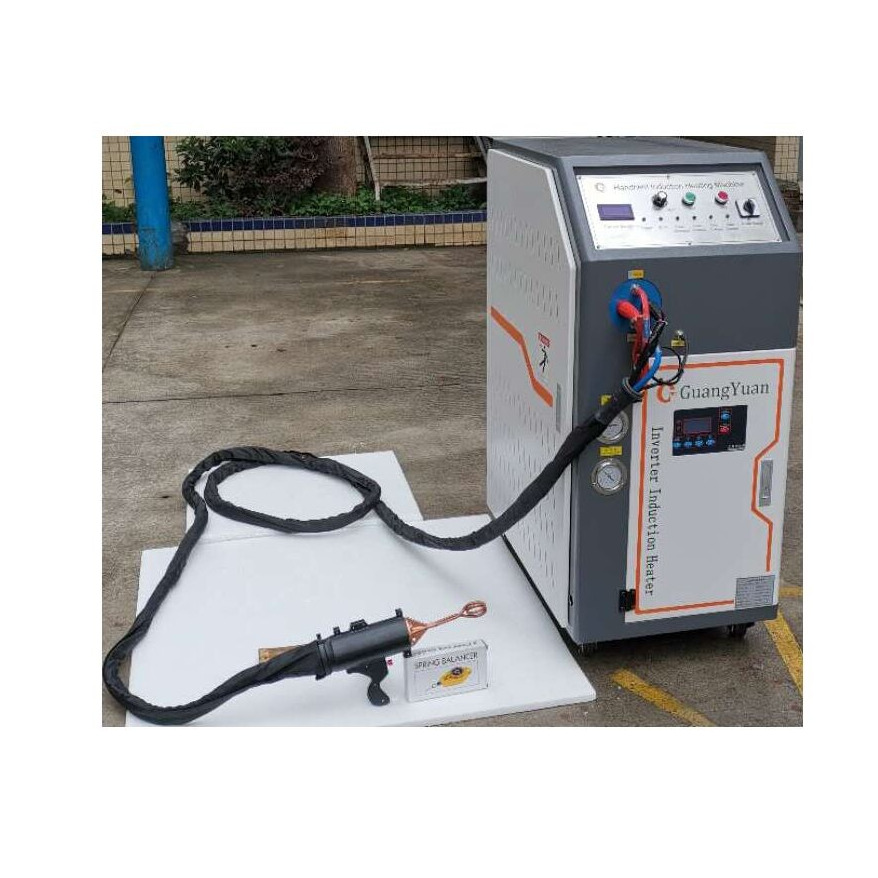

Water Cooling Handheld Induction Brazing 220v-380v

Water Cooling Handheld Induction Brazing 220v-380v
Features Gallery Product Description Request A Quote
Cooling Method: Water Cooling
Frequency: 30-80Khz
Power: 15-60KW
Application: Metal Heating, Hot Forging, Hot Fitting, Smelting,Induction Quenching, Induction Hardening, Induction Annealing
Induction Coil: Copper
Warranty: 1 Year
Heating Material: All Kinds Of Metals
Handheld Length: More Than 5 Meters
High Light:

water cooling handheld induction brazing


220v handheld induction brazing


380v portable induction brazing machine

Basic Infomation
Place of Origin: China
Brand Name: GY
Certification: CE FCC ROHS SGS
Model Number: custom made
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 7-10 workdays
Payment Terms: 100%TT before shipment
Supply Ability: 500sets per month
Product Description

Product Description:

A handheld induction heating machine is a portable device that uses induction heating to melt, weld, braze, harden, or anneal various materials. It works by generating an alternating magnetic field in a coil of conductive material, which induces an electric current in the workpiece and causes it to heat up.



  • Precise control of temperature and heating rate
  • Uniform heat distribution
  • Reduced energy consumption and emissions
  • Improved product quality and performance
  • Enhanced process flexibility and efficiency


  • Copper pipe or bar welding
  • Air conditioning copper tube brazing
  • Automobile parts brazing
  • Aluminum tube brazing
  • Power transformer joints brazing
  • Mold heating
  • Weld preheating


This all-in-one portable induction brazing machine with a chiller is suitable for different heating coils, and its stable design ensures IGBT runs well. The temperature is controllable and the hand-held head is made with an amorphous core, while the integral shell design provides an exposed-free exterior. No water pressure increase is necessary and the AC withstand voltage can reach 10,000 volts, leakage current 2MA, and 6 kg water pressure test without water leakage.

The machine is relatively light and compact in size. Compared with traditional transformers, it saves more than 80% of space and more than 75% of weight, and its stable magnetic field output guarantees the best long-term heating effect. Additionally, it is designed with wheels for easy portability, and the water and electricity separation design makes it simple to install and operate.


Technical Parameters:

Model Power Supply Output Power Max input current Fluctuating frequency Hand held length Cooling Pressure Flexible Weight
GYT-15AB-1P-2 220V 50KHZ 15KW 35A 30-80KHZ 5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-2 380V 50KHZ 25KW 25A 30-80KHZ 5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-4.5 380V 50KHZ 25KW 25A 30-80KHZ 5m 0.15-0.3Mpa 4.5KG
GYT-30AB-2P-4.5 380V 50KHZ 30KW 32A 30-80KHZ 5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-4.5 380V 50KHZ 30KW 32A 30-80KHZ 5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-6.5 380V 50KHZ 30KW 32A 30-80KHZ 5m 0.15-0.3Mpa 6.5KG
GYT-40AB-3P-6.5 380V 50KHZ 40KW 40A 30-80KHZ 5m 0.15-0.3Mpa 6.5KG
GYT-60AB-5P-10 380V 50KHZ 60KW 60A 30-80KHZ 5m 0.15-0.3Mpa 10KG


The hardware industry mainly involves welding accessories such as lighting, precision molds, and handles, as well as egg beaters, drill bits, alloy steel and steel, steel and copper, copper and copper equivalent metals, and different metals as well.


Tool industry generally engages welding of diamond tools, carbide turning tools, tungsten steel tools, milling cutters, reamers, and planer tools.


Home appliance industry includes welding of composite pot bottoms, stainless steel flat bottoms, aluminum sheets, and electric heat pipelines.


The plumbing industry requires welding for faucets, water pipe joints, and other items in the same category.


Refrigeration industry involves welding of air conditioning shunts, air conditioning mirrors, air conditioning condensers, air conditioning pipes, and copper pipes.


In the medical industry, welding of needles, detectors, scalpels, and other items is necessary.


The welding of mine tools also needs to be done, such as “One” word bit, column bit, dovetail bit, riveting bit, all kinds of shearer cutting teeth, and all kinds of road header cutting teeth, and brazing welding, etc.

protable induction heating machine

Support and Services:

Technical Support and Service for Portable Induction Heating Machine

We provide our customers with professional technical support and service for the Portable Induction Heating Machine. Our technical support team includes experienced engineers and technicians who are available to answer any questions you might have.

We offer a range of services to ensure that your Portable Induction Heating Machine is running smoothly and efficiently. Our services include:

  • Regular maintenance and troubleshooting
  • Software and hardware updates
  • Installation and customization
  • Training and Education

If you have any questions or need assistance, please contact us and we will be happy to help.


Packing and Shipping:

For our Portable Induction Heating Machine, the packaging and shipping process is as follows:

  • The product is placed in a wooden box, surrounded by foam or other cushioning material to protect it from damage.
  • The wooden box is sealed with saboteur and labeled with the product information.
  • The shipping box is sealed with tape and labeled with the product information and shipping address.
  • The shipping box is placed in a protective package, such as a wooden box, for added protection.
  • The package is placed in a shipping carrier's truck or aircraft for delivery to the customer.


Q: What is GY Portable Induction Heating Machine?
A: GY Portable Induction Heating Machine is an innovative induction heating product that is used for heating metals.
Q: What is the model number for GY Portable Induction Heating Machine?
A: The model number for GY Portable Induction Heating Machine is custom made.
Q: Where is GY Portable Induction Heating Machine manufactured?
A: GY Portable Induction Heating Machine is manufactured in China.
Q: What certifications does GY Portable Induction Heating Machine have?
A: GY Portable Induction Heating Machine has CE, FCC, ROHS and SGS certifications.
Q: What is the minimum order quantity for GY Portable Induction Heating Machine?
A: The minimum order quantity for GY Portable Induction Heating Machine is 1 SET.
