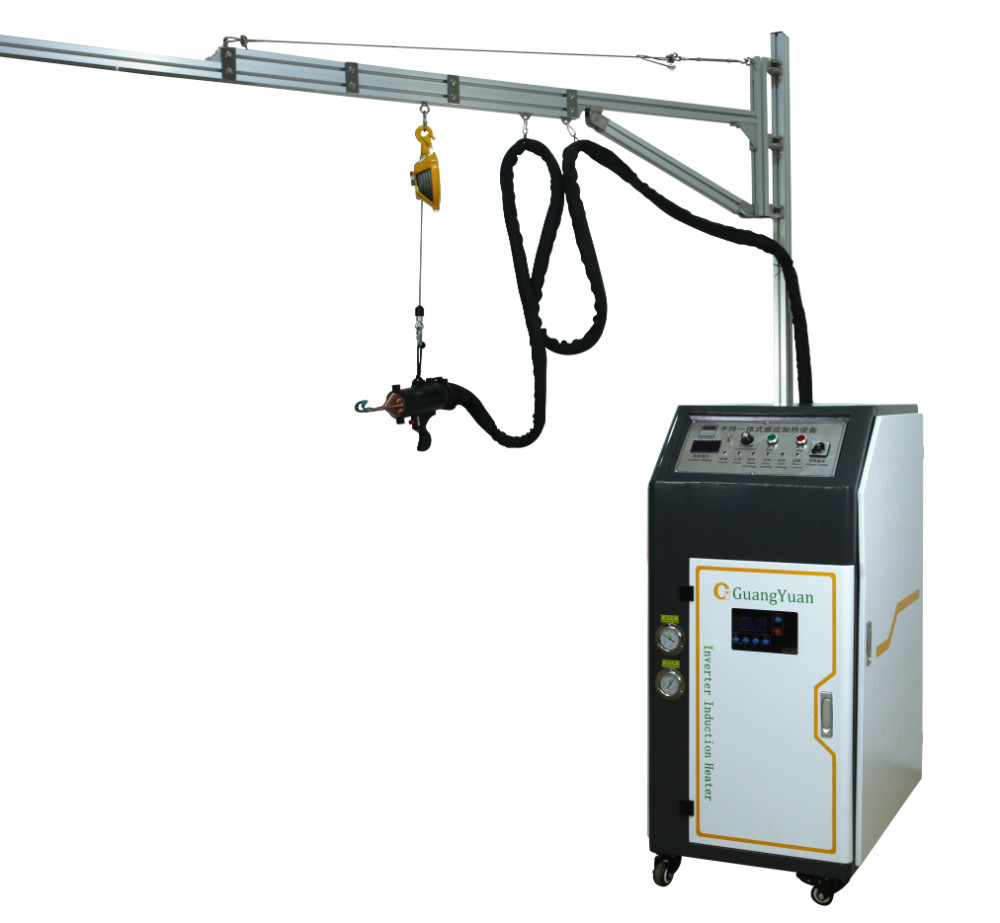

Small Lightweight Portable Induction Heating Machine For Brazing Aluminum Pipe

Small And Light Weight Hand-held Protable Induction Heating Machine For Brazing

Protable Inductio Heating Machine Features:

GY portable induction heating machine adopts a parallel resonant circuit, the heating head(we call the induction heating coil) is equipped with the capacitor, directly resonant with the induction coils, this is the highest heating efficiency of the portable induction heating machine structure.

The GY portable induction heating machine uses the most advanced parallel resonance technology and operates at working frequencies between 30 and 80KHZ. High frequencies help reduce the volume and weight of the induction heating head for easy operation.  This structure is our best-selling portable induction heating machine product, is your first choice of hand-held induction brazing machine.

The parameters of the Hand Held Transformer Protable Induction Heating Machine:


However, due to the great difference in magnetic induction performance of heating materials, different heating requirements, and different shapes, and sizes of induction heating coils, the portable induction heating machine needs to make corresponding adjustments to achieve a good heating effect. GY is a customized portable induction heating machine for different heating purposes. It is only suitable for customized induction coils and products and can be used for heating close induction coils and close workpieces at most. Therefore, when ordering the related portable induction brazing machine, you need to provide us with the corresponding detailed information:

• The heating parts material, shape, size, and pictures.
• The heating purpose, heating temperature, and the heating time requests.





Applications of hand-held induction heating machine:

• Air conditioning industry, a portable induction heating machine is mainly used for the online copper pipe induction brazing welding process.

• Induction welding transformer copper joint on-site.

• Heat correction of ship planks.

• Heat the metal surface to remove the paint

Advantages of hand-held induction heating machine:

• Adopt water and electricity separation design, easy ot installation andoperation;

• Integral shell design,no patching,no metal exposed;

• No need to increase the water pressure, matching same with the main power supply water pressure;

• Save more than 80%of space and more than 75% of weight than traditional transformers;

• No need to gather magnetism, stable magnetic fieldoutput, to ensure the best long-term heating effect;

• AC withstand voltage test 10,000 volts, leakage current 2 mA, water pressure test 6 kg without water leakage.
