IGBT Digital Induction Brazing Equipment , Mobile Induction Heater For Aluminum Pipe

1 SET
MOQ
Negotiation
Price
IGBT Digital Induction Brazing Equipment , Mobile Induction Heater For Aluminum Pipe
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Protable Induction Heating Machine
Hand Held Length: 5 Meters
Frequency: 30-80KHZ
Work Power: 240V-380V
Application: Aluminum Pipe Induction Brazing
Warranty: 1 Year
Feature: Touch Screen, Safe, Easy Operation
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

IGBT Induction Brazing Equipment

,

Mobile Induction Brazing Equipment

,

Aluminum Pipe Mobile Induction Heater

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS
Model Number: DSP
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

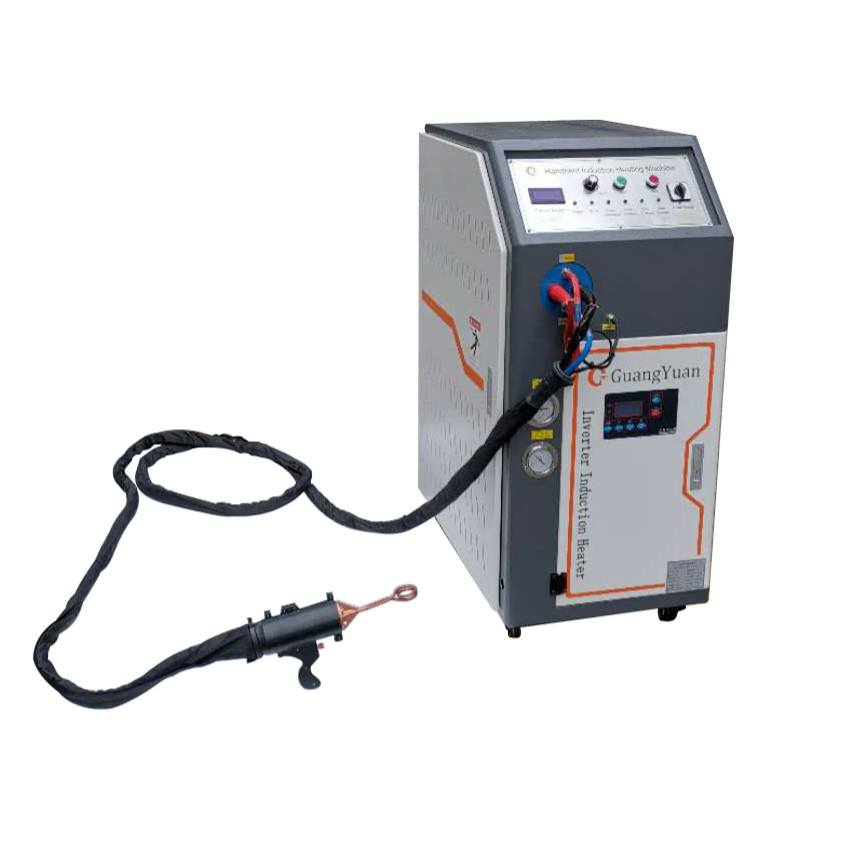

IGBT Digital All-in-one Mobile Induction Heating Machine With Water Cooling Chiller

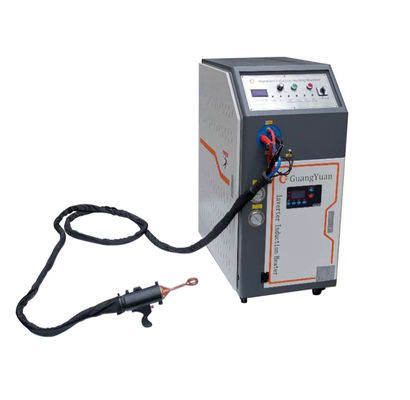

IGBT Digital Induction Brazing Equipment , Mobile Induction Heater For Aluminum Pipe 0
Protable Inductio Heating Machine Features:

GY portable induction welding machine has professional temperature control functions. Can be used in different parts induction welding, induction shrink fitting and etc. No matter what kinds of parts you heat, how complex the induction heating process you need, it all depends on all our professional induction heating machine service teams, we can always help you to find suitable portable induction welding machine solutions.



Major Features:

1. All-in-one portable induction brazing machine with chiller.
2. Have wheels easy to moving heating.
3. High control precision, suitable for different heating coil.
4. Stable design to ensure IGBT running well.
5. More efficiency, high power factor.
6. Can control the heating temperature.





technical parameters
The parameters of the Hand Held Transformer Protable Induction Heating Machine:

         Model Power Supply Output Power Max input current Fluctuating frequency Hand held length Cooling Pressure Flexible Weight
GYT-15AB-1P-2 220V 50KHZ     15KW       35A    30-80KHZ       5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-2 380V 50KHZ     25KW       25A    30-80KHZ       5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-4.5 380V 50KHZ     25KW       25A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-2P-4.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-4.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-6.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 6.5KG
GYT-40AB-3P-6.5 380V 50KHZ     40KW       40A    30-80KHZ       5m 0.15-0.3Mpa 6.5KG
GYT-60AB-5P-10 380V 50KHZ     60KW       60A    30-80KHZ       5m 0.15-0.3Mpa 10KG



However, due to the great difference in magnetic induction performance of heating materials, different heating requirements, and different shapes, and sizes of induction heating coils, the portable induction heating machine needs to make corresponding adjustments to achieve a good heating effect. GY is a customized portable induction heating machine for different heating purposes. It is only suitable for customized induction coils and products and can be used for heating close induction coils and close workpieces at most. Therefore, when ordering the related portable induction brazing machine, you need to provide us with the corresponding detailed information:

  • The heating parts material, shape, size, and pictures.
  • The heating purpose, heating temperature, and the heating time requests.


induction heating machine

protable induction heating machine
induction heating machine application
Applications of hand-held induction heating machine:



● Hardware industry: lighting accessories, precision mold accessories, hardware handle, egg beater, drill bit, alloy steel and steel, steel and copper, copper and copper equivalent metal or different metal brazing welding.

● Tool industry: diamond tool, carbide turning tool, tungsten steel tool, milling cutter, reamer, planer tool welding;

● Home appliance industry: composite pot bottom, stainless steel flat bottom, aluminum sheet, and electric heat pipelines welding.

● Plumbing industry: welding of the faucet, water pipe joints, etc.;

● Refrigeration industry: air conditioning shunt, air conditioning mirror, air conditioning condenser, air conditioning pipe, copper pipe welding.

● Medical industry: welding needle, detector, scalpel, etc.

● The welding of mine tools, such as “one” word bit, column bit, dovetail bit, riveting bit, all kinds of shearer cutting teeth, all kinds of road header cutting teeth brazing welding

induction heating



IGBT Digital Induction Brazing Equipment , Mobile Induction Heater For Aluminum Pipe 6

Advantages of hand-held induction heating machine:



● Combine the portable induction brazing machine and the industrial chiller together. Easy to move, can flexible finish the heating brazing jobs.

● High heating efficiency: With a very high coupling coefficient, reduce consumption, and save electricity.

● Fewer water pipelines, very simple installation, portable operation, better heat dissipation.

● Do complex workpiece brazing: the portable induction machine can do the complex workpiece with remote water-cooled cables, can realize the long-distance brazing welding jobs.

● The working environment is very clean, with no flame, no gas, green to the environment.

● With the HMI touch screen, all the working data can display on the touch screen.

● Meet high strength automatic working environment.

● With patented main cards and durable quality.
