80KHZ High Frequency Portable Induction Heating Equipment Light Weight

80KHZ High Frequency Portable Induction Heating Equipment Light Weight
Features Gallery Product Description Request A Quote
Product Name: Protable Induction Heating Machine
Hand Held Length: 5 Meters
Frequency: High Frequency, 30-80KHZ
Work Power: 240V-380V
Application: Welding, Hardening, Quenching, Annealing, Shrink Fit, Melting
Warranty: 1 Year
Feature: Touch Screen, Safe, Easy Operation
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

High Frequency Portable Induction Heating Equipment


Portable Induction Heating Equipment LightWeight


80KHZ high frequency induction heating equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS
Model Number: DSP
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

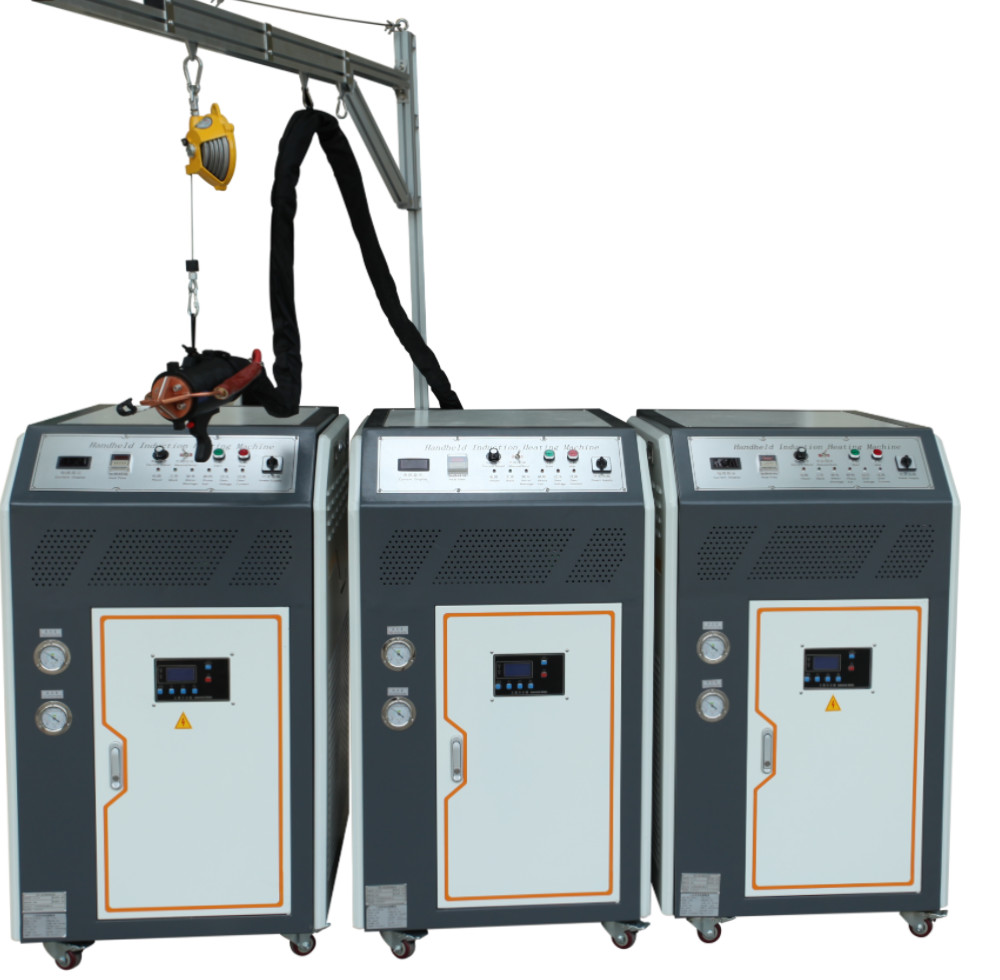

30-80KHZ Light Weight Easy To Hold Protable Induction Heating Machine
80KHZ High Frequency Portable Induction Heating Equipment Light Weight 0
Protable Inductio Heating Machine Features:

  • Hand-held transformer inner adopt amorphous material core;
  • Adopt water and electricity separation design, easy to installation and operation;
  • Integral shell design,no patching,no metal exposed;
  • No need to increase the water pressure, matching same with the main power supply water pressure;
  • Save more than 80% of space and more than 75% of weight than traditional transformers;
  • No need to gather magnetism, stable magnetic field output, to ensure the best long-term heating effect;
  • AC withstand voltage test 10,000 volts, leakage current 2 mA, water pressure test 6 kg without water leakage.

technical parameters
The parameters of the Hand Held Transformer Protable Induction Heating Machine:

         ModelPower SupplyOutput PowerMax input currentFluctuating frequencyHand held lengthCooling PressureFlexible Weight
GYT-15AB-1P-2220V 50KHZ    15KW      35A   30-80KHZ      5m0.15-0.3Mpa2KG
GYT-25AB-2P-2380V 50KHZ    25KW      25A   30-80KHZ      5m0.15-0.3Mpa2KG
GYT-25AB-2P-4.5380V 50KHZ    25KW      25A   30-80KHZ      5m0.15-0.3Mpa4.5KG
GYT-30AB-2P-4.5380V 50KHZ    30KW      32A   30-80KHZ      5m0.15-0.3Mpa4.5KG
GYT-30AB-3P-4.5380V 50KHZ    30KW      32A   30-80KHZ      5m0.15-0.3Mpa4.5KG
GYT-30AB-3P-6.5380V 50KHZ    30KW      32A   30-80KHZ      5m0.15-0.3Mpa6.5KG
GYT-40AB-3P-6.5380V 50KHZ    40KW      40A   30-80KHZ      5m0.15-0.3Mpa6.5KG
GYT-60AB-5P-10380V 50KHZ    60KW      60A   30-80KHZ      5m0.15-0.3Mpa10KG

induction heating machine
protable induction heating machine
induction heating machine application
Applications of hand-held induction heating machine:

1. Welding of diamond tools and cemented carbide tools;


2. High frequency welding of various metal steel-steel, steel-copper, copper-copper equivalent metals or dissimilar metals:


3. Heat treatment of metal materials such as hardening, annealing, modulation and tempering, and so on.


4. Metal hot forging and hot forming;


5. Powder metallurgy sintering and metal smelting;


6. Curing of organic coatings;


7. Heating and stretching of monocrystalline silicon;


8. Other application wheremetals need to be heated.


9. Copper pipe elbow welding and joint welding in the air conditioning industry
 80KHZ High Frequency Portable Induction Heating Equipment Light Weight 5
