Water Cooled Portable Induction Heating Machine For Copper Pipe Welding Brazing

Water Cooled Portable Induction Heating Machine For Copper Pipe Welding Brazing
Features Gallery Product Description Request A Quote
Product Name: Protable Induction Heating Machine
Hand Held Length: 5 Meters
Frequency: 30-80KHZ
Work Power: 240V-380V
Application: Aluminum Pipe Induction Brazing
Warranty: 1 Year
Feature: Touch Screen, Safe, Easy Operation
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

Water Cooled Portable Induction Heating Machine


Welding Portable Induction Heating Machine


water cooled induction welding brazing machine

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS
Model Number: DSP
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

Light Heating Head Hand-held Protable Induction Heating Machine For Copper Pipe Welding

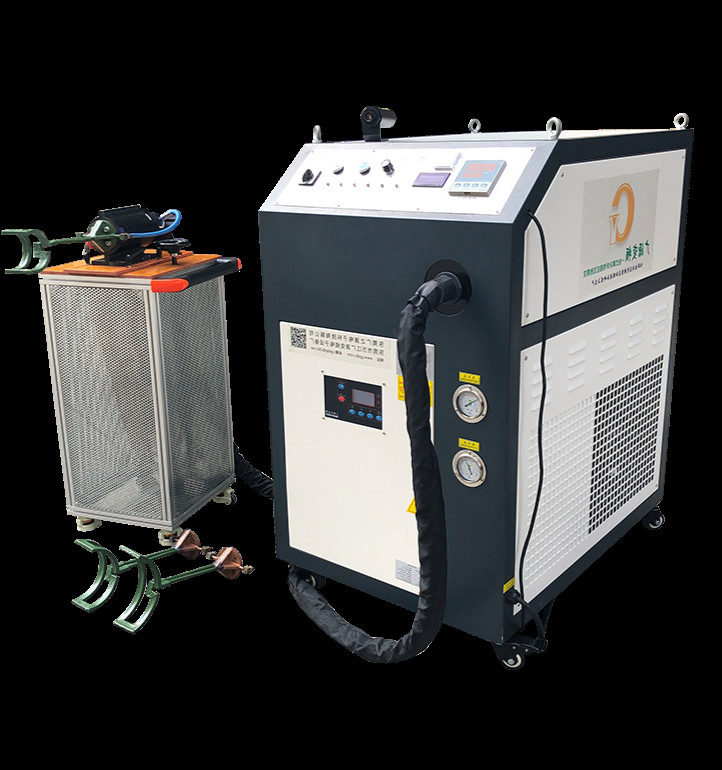

Water Cooled Portable Induction Heating Machine For Copper Pipe Welding Brazing 0
Protable Inductio Heating Machine Features:

GY portable induction welding machine has professional temperature control functions. Can be used in different parts induction welding, induction shrink fitting and etc. No matter what kinds of parts you heat, how complex the induction heating process you need, it all depends on all our professional induction heating machine service teams, we can always help you to find suitable portable induction welding machine solutions.


Major Features:

1. Portable induction welding machine for refrigeration pipe brazing.
2. With Siemens IGBT module, more stable functions.
3. Match temperature measure device.
4. Differet faulty alarm,easy to find the problem.
5. With HIM touch screen, set different language.
6. Supply customized logo, color and so on.


technical parameters
The parameters of the Hand Held Transformer Protable Induction Heating Machine:

         Model Power Supply Output Power Max input current Fluctuating frequency Hand held length Cooling Pressure Flexible Weight
GYT-15AB-1P-2 220V 50KHZ     15KW       35A    30-80KHZ       5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-2 380V 50KHZ     25KW       25A    30-80KHZ       5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-4.5 380V 50KHZ     25KW       25A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-2P-4.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-4.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-6.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 6.5KG
GYT-40AB-3P-6.5 380V 50KHZ     40KW       40A    30-80KHZ       5m 0.15-0.3Mpa 6.5KG
GYT-60AB-5P-10 380V 50KHZ     60KW       60A    30-80KHZ       5m 0.15-0.3Mpa 10KG


However, due to the great difference in magnetic induction performance of heating materials, different heating requirements, and different shapes, and sizes of induction heating coils, the portable induction heating machine needs to make corresponding adjustments to achieve a good heating effect. GY is a customized portable induction heating machine for different heating purposes. It is only suitable for customized induction coils and products and can be used for heating close induction coils and close workpieces at most. Therefore, when ordering the related portable induction brazing machine, you need to provide us with the corresponding detailed information:

  • The heating parts material, shape, size, and pictures.
  • The heating purpose, heating temperature, and the heating time requests.

induction heating machine
protable induction heating machine
induction heating machine application
Applications of hand-held induction heating machine:

As a leading induction heating machine manufacturer in China, We have users all over the world. This kind of portable induction welding machine is mainly used for the compressor copper tubes, pipe to pipes, joints, water tap tubes, and base induction brazing. Also, it is widely used in auto parts tubes induction brazing jobs.


  • High-frequency induction brazing welding of tube, connecting tube, and reservoir B tube of compressor main housing.


  • Motor wire connection joint induction brazing welding.


  • Slip ring lead welding, rotor, stator coil, lead wire induction brazing solutions.


  • Whole induction brazing guide bar rotor end ring of AC traction motor.


  • Wind turbine winding copper brazing, rotor winding DC drying equipment welding.


  • Four-way valve brazing equipment, pressure valve soldering equipment.

induction welding

Water Cooled Portable Induction Heating Machine For Copper Pipe Welding Brazing 6

Advantages of hand-held induction heating machine:


Handheld induction heater is the hand-held heating equipment recommended by our company at present. Because of its advantages of energy saving and light heating head, it has been widely used in the field of copper pipe welding. The main advantages and disadvantages are as follows:

  • The handheld induction brazing machine’s heating head is small and light, such as the heating head is only 2KG, which is suitable for the operator to hold the heating, and it is also convenient to operate the heating by the multi-joint robot hand.
  • Heating head is durable, not easy to damage, and easy to maintain; Heating head inside only one or two resonant capacitors, simple water cooling, simple structure, strong and durable;
  • High heating efficiency and energy saving. Handheld induction brazing machine is a series and parallels resonant structure, only the resonant capacitor and induction ring are relatively large induction current, the current on the cable is small, small loss, high heating efficiency, energy saving.
  • Handheld induction brazing machines are generally designed for special purposes, and the range of heating materials and induction rings is limited. You need to know this when you order.
