Hand Held Water Cooled Induction Heater All In One For Aluminum Pipe Brazing

Hand Held Water Cooled Induction Heater All In One For Aluminum Pipe Brazing
Features Gallery Product Description Request A Quote
Product Name: Protable Induction Heating Machine
Hand Held Length: 5 Meters
Frequency: 30-80KHZ
Work Power: 240V-380V
Application: Aluminum Pipe Induction Brazing
Warranty: 1 Year
Feature: Touch Screen, Safe, Easy Operation
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

HandHeld Water Cooled Induction Heater


Brazing Water Cooled Induction Heater


Aluminum Pipe induction heater for brazing

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS
Model Number: DSP
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

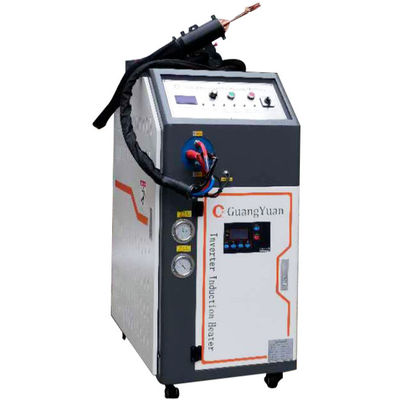

IGBT Digital All-in-One Mobile Induction Heating Machine With Water Cooling Chiller


Hand Held Water Cooled Induction Heater All In One For Aluminum Pipe Brazing 0
Protable Inductio Heating Machine Features:

GY portable induction welding machine has professional temperature control functions. Can be used in different parts induction welding, induction shrink fitting and etc. No matter what kinds of parts you heat, how complex the induction heating process you need, it all depends on all our professional induction heating machine service teams, we can always help you to find suitable portable induction welding machine solutions.


Major Features:

1. Portable handheld induction heater with wheels, easy move.
2. Handheld heating load, more energy intensive.
3 .Easy to operate, good to environment.
4. Intelligent control system.
5. Adopt famous international brand.


technical parameters
The parameters of the Hand Held Transformer Protable Induction Heating Machine:

         Model Power Supply Output Power Max input current Fluctuating frequency Hand held length Cooling Pressure Flexible Weight
GYT-15AB-1P-2 220V 50KHZ     15KW       35A    30-80KHZ       5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-2 380V 50KHZ     25KW       25A    30-80KHZ       5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-4.5 380V 50KHZ     25KW       25A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-2P-4.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-4.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-6.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 6.5KG
GYT-40AB-3P-6.5 380V 50KHZ     40KW       40A    30-80KHZ       5m 0.15-0.3Mpa 6.5KG
GYT-60AB-5P-10 380V 50KHZ     60KW       60A    30-80KHZ       5m 0.15-0.3Mpa 10KG


However, due to the great difference in magnetic induction performance of heating materials, different heating requirements, and different shapes, and sizes of induction heating coils, the portable induction heating machine needs to make corresponding adjustments to achieve a good heating effect. GY is a customized portable induction heating machine for different heating purposes. It is only suitable for customized induction coils and products and can be used for heating close induction coils and close workpieces at most. Therefore, when ordering the related portable induction brazing machine, you need to provide us with the corresponding detailed information:

  • The heating parts material, shape, size, and pictures.
  • The heating purpose, heating temperature, and the heating time requests.

induction heating machine
protable induction heating machine
induction heating machine application
Applications of hand-held induction heating machine:

Portable Handheld Induction Heater is applicable to induction brazing, induction heating installation, thermal removal, special quenching, and other fields, widely used in power plants, transformer plants, railway electric locomotives, air conditioning refrigerator compressors, and other industries, suitable for copper, aluminum, stainless steel and other metal materials heating jobs.


● Air conditioning industry, online copper pipe brazing welding.

● Transformer copper joint welding.

● The connection between evaporator and compressor(pipe welding, pipe with shell welding, pipe with box welding, steel and copper welding, etc.)

● The portable induction heating machine is mainly used for the welding parts not move, the induction brazing coil moving condition.

induction welding


Hand Held Water Cooled Induction Heater All In One For Aluminum Pipe Brazing 6

Advantages of hand-held induction heating machine:


Easy to move

  • The size is relatively small, convenient for customers to use on-site.

Handheld heating load

  • The power supply is matched with hand-held coaxial water-cooled cable and hand-held transformer, which has the characteristics of high energy density and small size of equipment

Easy operation

  • The portable hand-held induction heater is equipped with a switch for convenient control and easy operation. It has the characteristic of multi-azimuth heating without a dead Angle. Safe operation and good to the environment.

Intelligent control system

  • The fully automatic power supply of our company is controlled by DSP processor is equipped in this Portable Handheld Induction Heater, the parameters are all fixed in the program, the change of environment will not affect the internal parameter change, for the analog control system, the digital power supply has higher stability.

Intelligent protection system

  • When the power supply is working normally, it will automatically lock and alarm if it suddenly encounters bad working conditions. At this time, various protection signals will be judged and a fault alarms will be issued.

Simple debugging

  • GY full digital induction heating machine can finish the debugging jobs in 24 hours, greatly shortening the debugging time, the using time is almost no need maintenance.

This Portable Handheld Induction Heater With international brand components

  • The key components of the equipment are all imported high-performance components to ensure a more stable operation of the equipment.
