Immediate Heating Induction Heater Portable For Welding And Annealing

Immediate Heating Induction Heater Portable For Welding And Annealing
Features Gallery Product Description Request A Quote
Product Name: Protable Induction Heating Machine
Control System: IGBT, DSP Touch Control
Frequency: High Frequency, 30-80KHZ
Work Power: 380V 3phase
Application: Welding, Hardening, Quenching, Annealing, Shrink Fit, Melting
Warranty: 1 Year
Feature: Touch Screen, Safe, Easy Operation
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

Annealing Induction Heater Portable


Welding Induction Heater Portable

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS
Model Number: DSP
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

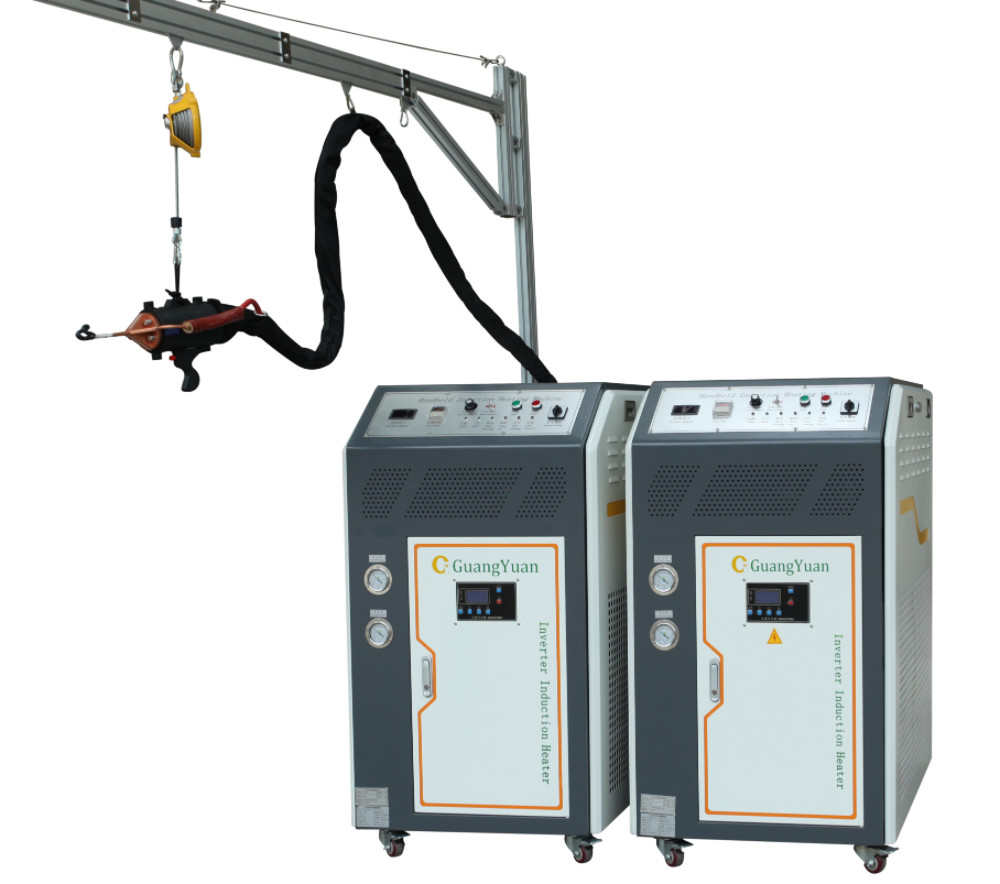

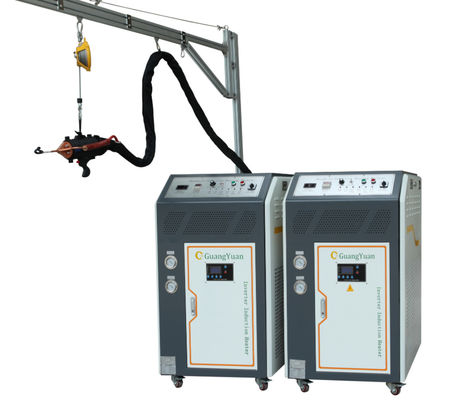

Immediate Heating Protable Induction Heating Machine For Welding and Annealing



Immediate Heating Induction Heater Portable For Welding And Annealing 0


The high frequency induction heating technology utilizes the eddy current loss caused by the electromagnetic field on the surface of the workpiece to locally heat the workpiece, and can perform processing such as quenching and metal welding. With the continuous development of power electronics technology and the improvement of high-power switch tubes, high frequency induction heating machines, portable induction heater, industrial induction heaters have been rapidly developed.


Induction heating becomes an indispensable energy source for metallurgy, national defense, mechanical processing and other sectors such as bearing, induction heating for bolt, induction nut heating, induction miller heating, billet induction heating, bearing induction heating, induction pipe heating, casting, forging and shipbuilding, aircraft and automobile manufacturing.


Protable Inductio Heating Machine Features:

  • Hand-heldtransformer inner adopt amorphous materialcore;
  • Adopt water and electricity separation design, easy ot installation and operation;
  • Integral shell design,no patching,no metal exposed;
  • No need to increase the water pressure, matching same with the main power supply water pressure;
  • Save more than 80% of space and more than 75% of weight than traditional transformers;
  • No need to gather magnetism, stable magnetic field output, to ensure the best long-term heating effect;
  • AC withstand voltage test 10,000 volts, leakage current 2 mA, water pressure test 6 kg without water leakage.


technical parameters

The parameters of the Hand Held Transformer Protable Induction Heating Machine For Welding of Diamond Tools


         Model Power Supply Output Power Max input current Fluctuating frequency Hand held length Cooling Pressure Flexible Weight
GYT-15AB-1P-2 220V 50KHZ     15KW       35A    30-80KHZ       5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-2 380V 50KHZ     25KW       25A    30-80KHZ       5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-4.5 380V 50KHZ     25KW       25A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-2P-4.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-4.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-6.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 6.5KG
GYT-40AB-3P-6.5 380V 50KHZ     40KW       40A    30-80KHZ       5m 0.15-0.3Mpa 6.5KG
GYT-60AB-5P-10 380V 50KHZ     60KW       60A    30-80KHZ       5m 0.15-0.3Mpa 10KG



induction heating machine


protable induction heating machine



Immediate Heating Induction Heater Portable For Welding And Annealing 4

The advantages of the induction heating machine:


1. The induction heating speed is fast. Induction heater solves the problem that the conventional heat treatment process causes the oxide layer to be too thick due to long heating time.


2. The heating position of magnetic induction heater can be controlled freely, and does not generate excessive heat for the position where heating is not required, which satisfies the heat treatment requirements of special workpieces.


3. The operation for high frequency induction heating is simple. There is no open flame, no high temperature, high voltage and it has good safety.


4. Induction metal heater is with small size, light weight, does not occupy too much production space, magnetic induction heater can move the working position at any time to facilitate production needs.


induction heating machine application

protable induction heating machine

Immediate Heating Induction Heater Portable For Welding And Annealing 7

Q1: Why should I trust your company and choose you?
A1: We are a professional induction heating equipment, set research and develop sales, service as one of the high-tech enterprises. We have 27 years of profession: equipment research and development experience, is China's most professional bra heating complete sets of automation equipment manufacturers.


Q2: Where is your company and can I come and visit it?
A2: Yes, Bajiaowo Industrial Park, Wanjiang District, Dongguan, Guangdong, China. You are welcome to visit our factory anytime


Q3: How do I set up your machine
A3: We have paper installation instructions and videos, and we'll teach them until you learn them.


Q4: Do you have any equipment in stock?
A4: Yes, we have some of our best-selling models in stock for immediate delivery upon payment


Q5: Can you provide free samples of the machines?
A5: Sorry, we can't give you a free sample because of the high price of the machines, we can sample test your workpiece for free.Our machines are sure to meet your requirements and give you satisfaction.


Q6: What is your quality control?
A6: We have A professional team responsible for product testing and packaging before delivery, you can rest assured to buy.


Q7: How many days will it arrive after I buy the machine?
A7: Usually 5-7 workdays, but 20-30 days for large machines


Q8: What should I do if the machine breaks down?
A8: Within the one year warranty of the machine, we will provide you with spare parts free of char For customers who buy the machines, if they have any problems with the machines, they can take pictures or record videos for us. We will guide the customer to carry out repairs. If we still can't sol the problem, we can send our engineer to your factory


Q9. What about the warranty?
A9: All of our products have a one-year warranty. During the warranty period, spare parts will be replaced free of charge. We provide lifelong technical support and other assistance.
