IGBT Digital Handheld Portable Induction Heating Machine For Welding Brazing

IGBT Digital Handheld Portable Induction Heating Machine For Welding Brazing
Features Gallery Product Description Request A Quote
Product Name: Protable Induction Heating Machine
Hand Held Length: 5 Meters
Frequency: 30-80KHZ
Work Power: 240V-380V
Application: Aluminum Pipe Induction Brazing
Warranty: 1 Year
Feature: Touch Screen, Safe, Easy Operation
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

IGBT Digital Portable Induction Heating Machine


Brazing Portable Induction Heating Machine


IGBT Digital Induction Brazing Equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS
Model Number: DSP
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

IGBT Digital Induction Brazing Equipment, Handheld Induction Heater For Welding

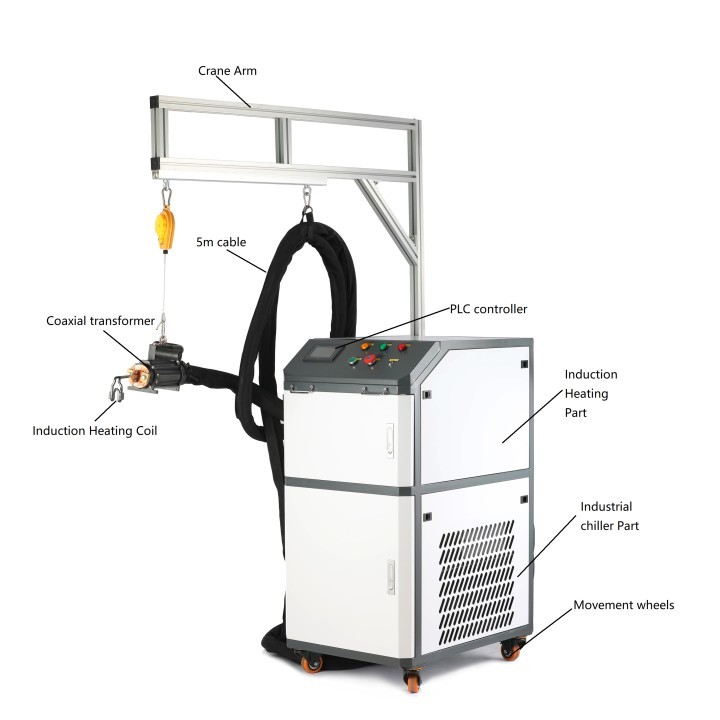

IGBT Digital Handheld Portable Induction Heating Machine For Welding Brazing 0
Portable Induction Heating Machine Features:

A handheld induction heating machine is a portable device that uses induction heating to melt, weld, braze, harden, or anneal various materials. It works by generating an alternating magnetic field in a coil of conductive material, which induces an electric current in the workpiece and causes it to heat up.


Some of the advantages of handheld induction heating machines are precise control of temperature and heating rate, uniform heat distribution, reduced energy consumption and emissions, improved product quality and performance, and enhanced process flexibility and efficiency.


Some of the applications of handheld induction heating machines are: copper pipe or bar welding, air conditioning copper tube brazing, automobile parts brazing, aluminum tube brazing, power transformer joints brazing, mold heating, weld preheating, and so on.


Major Features:

1. All-in-one portable induction brazing machine with chiller.
2. Have wheels easy to move heating.
3. High control precision, suitable for different heating coils.
4. Stable design to ensure IGBT running well.
5. More efficiency, high power factor.
6. Can control the heating temperature.



technical parameters
The parameters of the Hand Held Transformer Protable Induction Heating Machine:

         Model Power Supply Output Power Max input current Fluctuating frequency Hand held length Cooling Pressure Flexible Weight
GYT-15AB-1P-2 220V 50KHZ     15KW       35A    30-80KHZ       5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-2 380V 50KHZ     25KW       25A    30-80KHZ       5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-4.5 380V 50KHZ     25KW       25A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-2P-4.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-4.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-6.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 6.5KG
GYT-40AB-3P-6.5 380V 50KHZ     40KW       40A    30-80KHZ       5m 0.15-0.3Mpa 6.5KG
GYT-60AB-5P-10 380V 50KHZ     60KW       60A    30-80KHZ       5m 0.15-0.3Mpa 10KG


Features of the handheld induction heating machine:

  • GY handheld brazing system allows the operator to move to the part and access hard-to-reach areas;
  • The system offers the possibility to pre-program multiple heating profiles which can be controlled by the operator from the hand-held unit;
  • Durable lightweight design of the handheld device.
  • Optional 360° ring for counterweight mounting that allows the operator to work continuous hours;
  • Set of standard coils for tube diameters up to 1.5″. Custom design coils are offered on request;
  • The equipment can be upgraded with an automation unit and robotic arm for a fully automated induction brazing process.

induction heating machine
protable induction heating machine
induction heating machine application
Applications of hand-held induction heating machine:


● Hardware industry: lighting accessories, precision mold accessories, hardware handles, egg beaters, drill bit, alloy steel and steel, steel and copper, copper and copper equivalent metal, or different metal brazing welding.

● Tool industry: diamond tool, carbide turning tool, tungsten steel tool, milling cutter, reamer, planer tool welding;

● Home appliance industry: composite pot bottom, stainless steel flat bottom, aluminum sheet, and electric heat pipelines welding.

● Plumbing industry: welding of the faucet, water pipe joints, etc.;

● Refrigeration industry: air conditioning shunt, air conditioning mirror, air conditioning condenser, air conditioning pipe, copper pipe welding.

● Medical industry: welding needles, detectors, scalpels, etc.

● The welding of mine tools, such as “one” word bit, column bit, dovetail bit, riveting bit, all kinds of shearer cutting teeth, all kinds of road header cutting teeth brazing welding

induction heating


IGBT Digital Handheld Portable Induction Heating Machine For Welding Brazing 6

Advantages of hand-held induction heating machine:


● Combine the portable induction brazing machine and the industrial chiller together. Easy to move, can flexibly finish the heating brazing jobs.

● High heating efficiency: With a very high coupling coefficient, reduce consumption, and save electricity.

● Fewer water pipelines, very simple installation, portable operation, better heat dissipation.

● Do complex workpiece brazing: the portable induction machine can do the complex workpiece with remote water-cooled cables, and can realize the long-distance brazing welding jobs.

● The working environment is very clean, with no flame, no gas, and green to environment.

● With the HMI touch screen, all the working data can display on the touch screen.

● Meet high strength automatic working environment.

● With patented main cards and durable quality.
