Water Cooling Industrial Induction Annealing Equipment For Stainless Steel

1 Set
Water Cooling Industrial Induction Annealing Equipment For Stainless Steel
Features Gallery Product Description Request A Quote
Product Name: Induction Annealing Equipment
Voltage: 380V 3phase
Power: 60KW
Core Components: Circuit Board, Induction Coil
Duty Cycle: 24 Hours Non-stop
Application: Annealing, Normalizing, Forging, Quenching,Melting
Key Point: Safe, Environmentally, Energy Saving , High Efficient
High Light:

Water Cooling Induction Annealing Equipment


Stainless Steel Induction Annealing Equipment


Annealing Industrial Induction Heating Equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC,ROHS
Model Number: GYTS-60AB
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 5-8 workdays, based on orders
Payment Terms: T/T
Supply Ability: 500 Sets per month
Product Description

Water Cooling Industrial Induction Heating Equipment For Annealing Stainless Steel

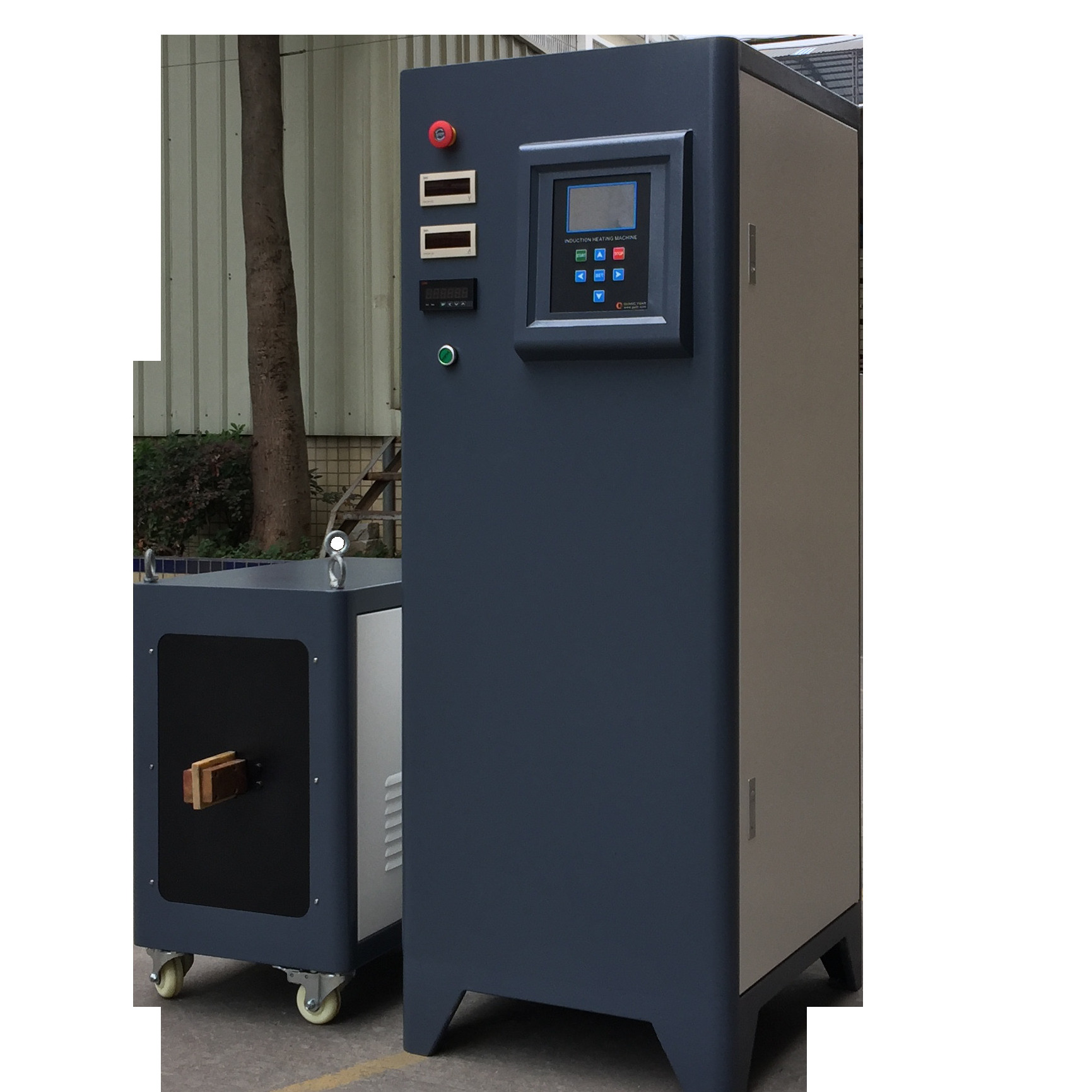

Water Cooling Industrial Induction Annealing Equipment For Stainless Steel 0



Equipment principle type: Series resonance for voltage type


Features of equipment :


In the early induction heating equipment, the high-frequency inverter device required by the inverter unit determines the form of the device. It has experienced the development process from electron tubes and thyristors to the current widespread use of IGBT. In the current mainstream IGBT-type induction heating products, there are still many differences in circuits and structures. From the rectifier unit, there are controllable rectification and uncontrollable rectification; from the inverter unit, there are pulse-width modulation inverter and chopper voltage regulation inverter; from the resonant output unit, there are parallel resonance and series resonance. Various circuits and structural methods have differences in performance such as efficiency, power factor, and reliability. Although great progress has been made by using  IGBT  to replace thyristors and electron tubes, there are still some common problems in the induction heating power supply equipment developed and produced by most manufacturers.


Water Cooling Industrial Induction Annealing Equipment For Stainless Steel 1

Brief Details:



60KW 5-20KHZ Light Touch Screen Induction Heating Equipment For Annealing

Application Annealing
Work power 340V-430V Out power 60KW
Product size main : 808X530X1260mm Certificate CE,SGS, ROHS
  transformer : 840X420X740MM


The paramerters of GYTS-60AB:

Model GYTS-60AB (Three phases)
work power 340v-430v
input current 90A
Fluctuating output power 60KW
fluctuating frequency 5-20KHZ
the flow rate of cooling water 0.15-0.3Mpa 7.6L/Min
water temperature protection point 40C
product size main: 808X530X1260MM
transformer : 840X420X740MM
net weight main: 115 kg
transformer: 76.5 kg



Water Cooling Industrial Induction Annealing Equipment For Stainless Steel 2



Bright annealed stainless steel has various applications in industries that require a clean, smooth, and corrosion-resistant surface. Some of these applications are:

  • Baking equipment, refrigeration, food processing, tanks and vessels, vacuum drum dryers, solar collector panels, pharmaceutical equipment, etc.


  • Military products, semiconductors, biological medicine, precision instruments and meters, hydraulic parts, etc.


  • Welded pipes for fluid transportation, heat exchangers, instrumentation tubing, etc.


  • Catering equipment, storage tanks, decorative cladding, work benches, etc.

stainless steel online annealing


What are the differences between bright annealed and polished stainless steel?

Bright annealed and polished stainless steel are smooth and shiny finishes, but they differ in some aspects. Some of the differences are:

  • Bright annealed stainless steel is cold rolled and then annealed in a protective atmosphere to prevent oxidation and scaling. Polished stainless steel is cold rolled and then mechanically polished with abrasives or etched with chemicals to achieve a smooth and reflective surface.


  • Bright annealed stainless steel has a non-directional finish that is favorable for the retention of lubricants and corrosion resistance. Polished stainless steel has a directional finish that may not match in appearance over large areas or between batches.


  • Bright annealed stainless steel is more economical than polished stainless steel, as it does not require additional processing after annealing. Polished stainless steel may have higher costs due to the polishing or etching operations.

Water Cooling Industrial Induction Annealing Equipment For Stainless Steel 4


induction heating machine



Water Cooling Industrial Induction Annealing Equipment For Stainless Steel 6

Welcome to GY

GY had developed many years of research and is committed to providing customers with all kinds of medium frequency, high frequency, super audio frequency, ultrahigh frequency induction heating equipment, and automation equipment. We provide solutions for project planning, development, design, manufacturing and comprehensive after-sales service according to your needs. One-stop solutions for customer heat treatment needs.The latest DSP+FPGA all-digital control system products provide more professional, more accurate solutions and personalized high-quality products for many users on the road of innovation, transformation and transformation breakthroughs.



From 1996, devoted

For more than 27 years, GY has always been adhering to the company philosophy of innovation, adherence to quality, and excellent operation. A single R&D office researches a single product. After more than 20 years of hard work, it has developed steadily. The current equipment users cover many industries such as manufacturing, electric power and nuclear power, government science reform, university scientific research, and special military industry. In view of the different voltage levels
in some countries, the company has developed special input voltage induction heating equipment for different frequency parameters. For example, the input voltage suitable for use i n the United States, Japan and other countries is single-phase 110V, three-phase 110V, three-phase 220V, and three-phase 480V. Heating equipment and heating equipment with input voltage of three-phase 415V and three-phase 440V are suitable for use in Southeast Asian countries such as Malaysia, Australia and Thailand Inheritance build trust.


Inherit and build trust

Made in China is facing global competition and challenges. To find a suitable position in the international and domestic markets and open up a larger market, we must use more advanced technology and good after-sales service to improve ourselves. We will always be committed to the application and promotion of GY series products in the market with the spirit of pursuing professionalism, excellence and perseverance, and seek cooperation with suppliers, agents and users with professional technical support and good business collaboration. Common development and progress.


market to world
