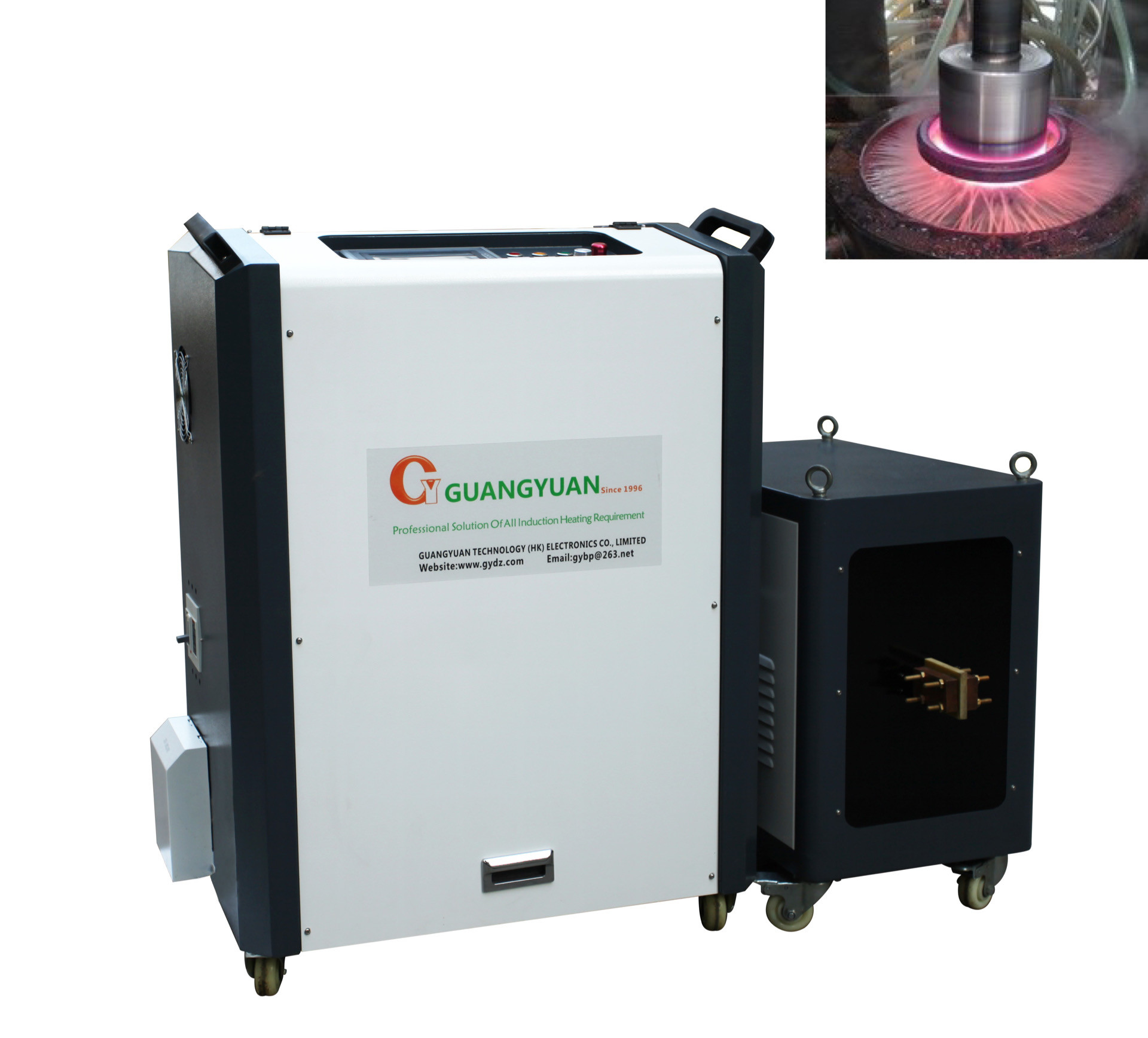

100KW Industrial Induction Heat Treatment Machine For Annealing Normalizing

1 Set
MOQ
Negotiation
Price
100KW Industrial Induction Heat Treatment Machine For Annealing Normalizing
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Induction Annealing Equipment
Voltage: 380V 3phase
Power: 100KW
Core Components: Circuit Board, Induction Coil
Duty Cycle: 24 Hours Non-stop
Application: Annealing, Normalizing, Forging, Quenching,Melting
Key Point: Safe, Environmentally, Energy Saving , High Efficient
High Light:

100KW Induction Heat Treatment Machine

,

Normalizing Induction Heat Treatment Machine

,

Annealing Industrial induction heater

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC,ROHS
Model Number: GYMD-100AB
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 5-8 workdays, based on orders
Payment Terms: T/T
Supply Ability: 500 Sets per month
Product Description

100KW Digtal Control Induction Annealing Equipment For Annealing and Normalizing



100KW Industrial Induction Heat Treatment Machine For Annealing Normalizing 0

WHAT IS ANNEALING AND NORMALIZING?

Annealing

In general, the main purpose of annealing heat treatment is to soften the steel, regenerate overheated steel structures or just remove internal tensions.

It basically consists of heating to austenitizing temperature (800ºC and 950ºC depending on the type of steel), followed by slow cooling.

Normalizing

Normalization is an annealing process. The objective of normalization is to intend to leave the material in a normal state, in other words with the absence of internal tensions and even distribution of carbon. For the process the high temperatures are maintained until the complete transformation of austenite with air cooling.

It is usually used as a post-treatment to forging, and pre-treatment to quenching and tempering.

Induction is used in most applications of annealing and normalizing in compared to conventional ovens.



100KW Industrial Induction Heat Treatment Machine For Annealing Normalizing 1



Name

100KW Digtal Control Induction Annealing Equipment For Annealing and Normalizing

Application Annealing and Normalizing
Work power 340V-430V Out power 100KW
Product size main : 874x520x1100 mm Certificate CE,SGS, ROHS
  transformer : 870x430x750mm



The paramerters of DSP 100KW Digtal Control Induction Annealing Equipment Stainless Online Annealing:



Model GYMD-100AB (Three phase)
Work power 340v-430v
Maximum input current 150A
Output power 100KW
Fluctuating frequency 1-10KHZ
The flow rate of cooling water 0.15-0.3Mpa 10L/Min
Water temperature protection point 40C
Product size main :874x520x1100 mm
transformer :870x430x750 mm
Net weight main : 115 kg
transformer : 76.5 kg





100KW Industrial Induction Heat Treatment Machine For Annealing Normalizing 2

APPLICATION RANGE:

Annealing (tempering and modulation)

  • Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
  • Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper fitting, kitchen knife handle, blade, aluminum pan, aluminum pail, aluminum radiator and various aluminum products.

stainless steel tube online annealing

100KW Industrial Induction Heat Treatment Machine For Annealing Normalizing 4

ADVANTAGES OF INDUCTION ANNEALING

Here is where induction heating technology has the ability to turn the annealing process on its head. Induction can be used to anneal parts in a continuously moving line at high speed. This can be done with individual parts such as bullet casings, or inline with a mill for wire or tube drawing. Removing the bottleneck caused by furnaces from the production line allows manufacturers more freedom to control their line speed, and decreases idle time in other stages of the process.

Induction heating provides improved control of annealing process. Repeatable heating profiles can easily be obtained by precise regultation of the heating power. Since the workpiece is directly heated by the magnetic field, a faster response can be achieved. Moreover, the high overall efficiency of the induction heating process is crucial for such lengthy treatment.

Induction heating can be done very rapidly. This allows induction coils for annealing to be very short compared to furnaces or infrared tunnels. This is particularly pertinent in continuous annealing operations where induction heating may facilitate plant layouts that save considerable floor space.

Induction annealing delivers energy only where it's need, resulting in faster heating times, reduced potential for process error, enhanced process control and energy savings.

ADVANTAGES OF THE MACHINE:

  • Processed in line with control of parameters in real time
  • Metallurgical results similar to those obtained in conventional ovens
  • Less environmental pollution
  • Increase energy efficiency
  • Reduced processing time
  • Ability to control the heat, temperature accuracy
  • Ability to heat small areas without changing the characteristics of the rest of the part
  • Cycle accurate and repetitive heat
  • Reduction of surface oxidation
  • Improved job environment

100KW Industrial Induction Heat Treatment Machine For Annealing Normalizing 5

100KW Industrial Induction Heat Treatment Machine For Annealing Normalizing 6



induction heating machine



100KW Industrial Induction Heat Treatment Machine For Annealing Normalizing 8
