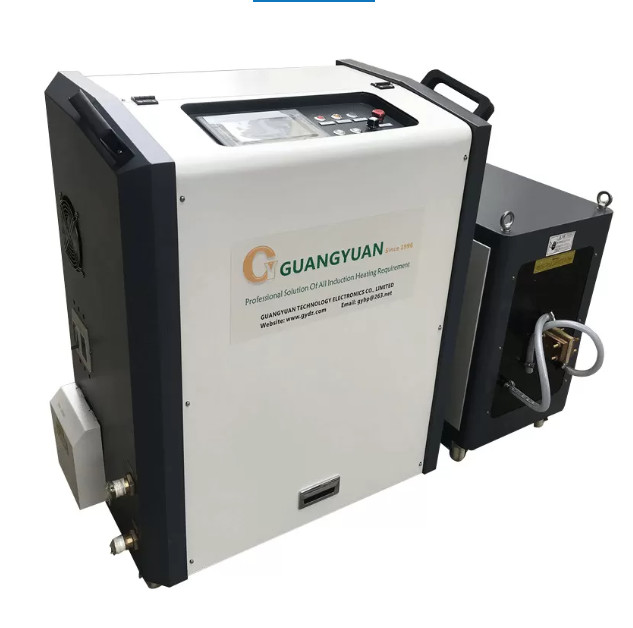

Multifunction Induction Annealing Equipment , HF Induction Heating Machine 380V

1 Set
MOQ
Negotiation
Price
Multifunction Induction Annealing Equipment , HF Induction Heating Machine 380V
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Induction Annealing Equipment
Voltage: 380V 3phase
Power: 100KW
Core Components: Circuit Board, Induction Coil
Duty Cycle: 24 Hours Non-stop
Application: Annealing, Normalizing, Forging, Quenching,Melting
Key Point: Safe, Environmentally, Energy Saving , High Efficient
High Light:

Multifunction Induction Annealing Equipment

,

HF Induction Annealing Equipment

,

HF Induction Heating Machine 380V

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC,ROHS
Model Number: GYHD-100AB
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 5-8 workdays, based on orders
Payment Terms: T/T
Supply Ability: 500 Sets per month
Product Description

100KW High Frequency Induction Annealing Equipment For Stainless Steel Tube



Multifunction Induction Annealing Equipment , HF Induction Heating Machine 380V 0

WHAT IS INDUCTION  ANNEALING



Induction annealing is a process in which a precise electromagnetic field is used to heat an electrically conductive material making it more workable by reducing its hardness. It slowly heats the metal to a specific temperature (the recrystallization temperature) for a sufficient time and then cools at a suitable rate. Induction annealing can reduce the hardness and internal stress of the workpiece, increase the ductility of the workpiece, and improve the reprocessing performance of the workpiece.



Induction annealing is widely used in the tube and wire processing industry. It is commonly used in annealing steel wires, pipes, blades, saw blades, copper pipes, aluminum rods, and aluminum pipes.



Multifunction Induction Annealing Equipment , HF Induction Heating Machine 380V 1

Brief Details:



Name

100KW Digtal Control Induction Annealing Equipment For Annealing and Normalizing

Application Annealing and Normalizing
Work power 340V-430V Out power 100KW
Product size main : 874x520x1100 mm Certificate CE,SGS, ROHS
  transformer : 870x430x750mm



The paramerters of GYHD-100AB:

Model GYHD-100AB (Three phase)
Work power 340v-430v
Max input current 150A
Max output power 100KW
Fluctuating frequency 100-200KHZ
The flow rate of cooling water 0.15-0.3Mpa 10L/Min
Water temperature protection point 40C
Product size main :874x520x1100 mm
transformer :870x430x750 mm
Net weight main : 115 kg
transformer : 76.5 kg







Multifunction Induction Annealing Equipment , HF Induction Heating Machine 380V 2

APPLICATION RANGE:

  • Stainless steel tableware annealing



  • Special-shaped hollow pipe fittings



  • Stainless steel tube solid solutions



  • Stainless steel sink annealing

Induction annealing



Multifunction Induction Annealing Equipment , HF Induction Heating Machine 380V 4

ADVANTAGES OF INDUCTION ANNEALING EQUIPMENT



1.FAST HEATING

  • The minimum rate of heating is less than 1 second (rate of heating is available for adjustment and control).



2. WIDE COVERAGE OF HEATING

  • It can be used to heat various metal parts (replace removable induction coil as per different operating switches).



3. EASY INSTALLATION

  • It can be used once it is connected with power source, induction coil as well as water supply pipe and rising pipe; it is small in size and light in weight.



4. EASY OPERATION

  • You can learn to operate it within several minutes.



5. FAST START-UP

  • It can be started to perform heating operation on condition that water and power supply is available.



6. LOW POWER CONSUMPTION

  • As compared with conventional vacuum tube high frequency equipment, it can save the power by approximately 70%. The smaller the size of the workpiece is, the lower power consumption would be.



7. HIGH EFFECTIVENESS

  • It has such features as uniform heating( it is applicable to adjust the spacing of the induction coil to ensure the appropriate temperature as required by each part of workpiece), fast warming and limited oxic horizon, and can guard against any waste after annealing.



8. COMPREHENSIVE PROTECTION

  • It has such function as overvoltage, over-current, overheat and water shortage alarm indication as well as automatic control and protection



9. CONTROLLABLE TEMPERATURE

  • Controllable temperature: it is applicable to control the temperature for heating workpiece as per the preset heating time, and the thereby control the heating temperature at a certain technical point.



10. COMPREHENSIVE FULL LOAD DESIGN

  • 100% full load design, it can work continuously for 24 hours.



11. SMALL SIZE AND LIGHT WEIGHT

  • Small area, saving workshop space, good work environment, enviornmental protection, energy saving, safety, no noise, exhaust gas, dust and other emissions.



12. ELIMINATION OF HIGH VOLTAGE

  • It requires no step-up transformer which may produce approximately ten thousand voltage, and thus can ensure the maximum safety.



Multifunction Induction Annealing Equipment , HF Induction Heating Machine 380V 5

induction heating machine
