DSP Digital Control Induction Annealing Equipment For Stainless Steel Online Annealing
Induction annealing is a process in which a precise electromagnetic field is used to heat an electrically conductive material making it more workable by reducing its hardness.
Induction annealing delivers energy only where it's needed, resulting in faster heating times, reduced potential for process error, enhanced process control and energy savings.
| Name |

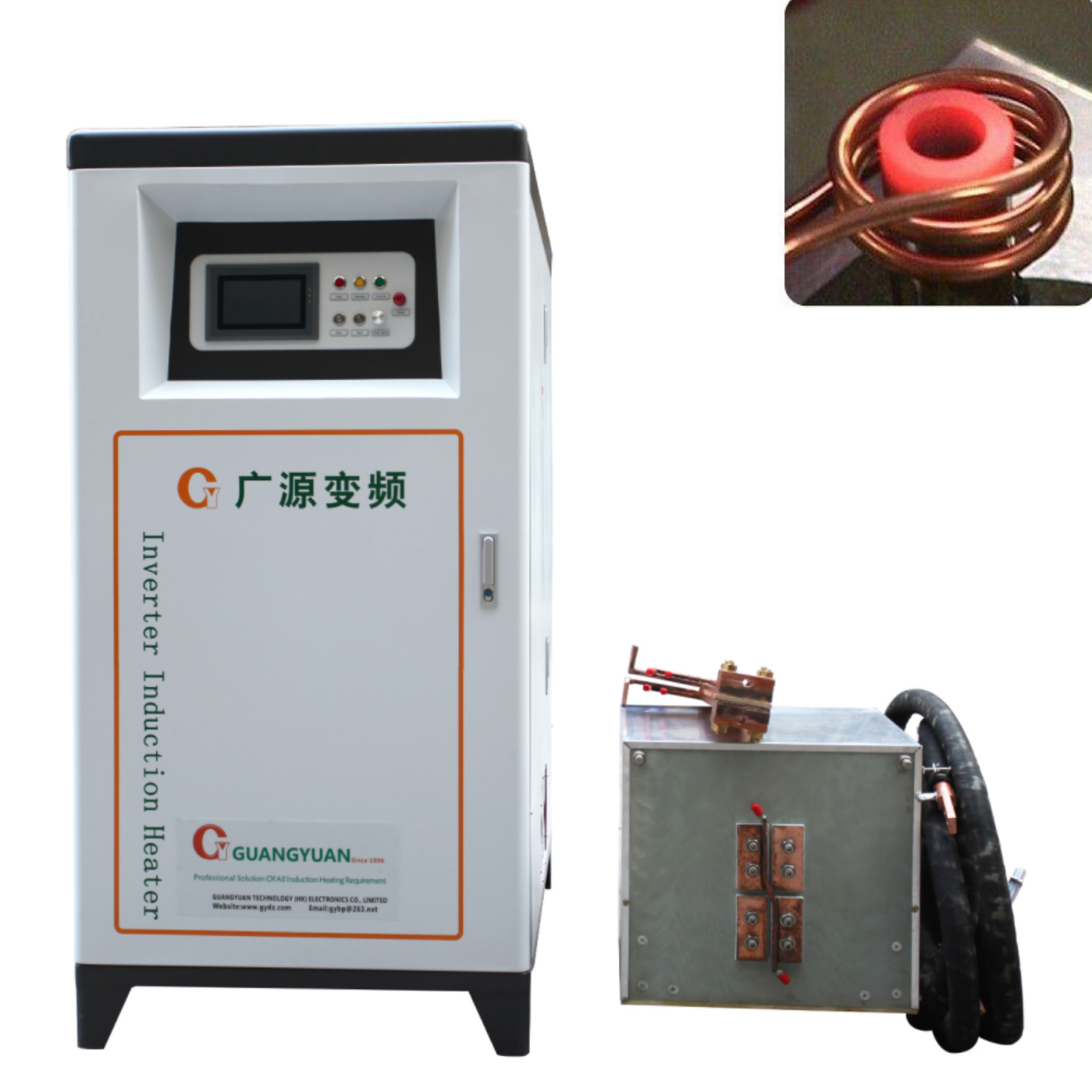

250KW DSP Digital Control Induction Annealing Equipment For Stainless Steel Tube Annealing
|
Application | Stainless steel annealing |
| Work power | 340V-430V | Out power | 250KW |
| Product size | main : 1090*650*1610MM | Certificate | CE,SGS, ROHS |
| transformer : 1070*480*850MM |
The paramerters of 250KW DSP Digital Control Induction Annealing Equipment For Stainless Steel Tube Annealing:
| Model | GYMD-250AB (Three phase) |
| Work power | 340V-430V |
| Maximum input current | 375A |
| Output power | 250KW |
| Fluctuating frequency | 1-81KHZ |
| The flow rate of cooling water | 0.08-0.16Mpa 12L/Min |
| Water temperature protection point | 50C |
| Product size | main : 1090*650*1610MM |
| transformer : 1070*480*850MM | |
| Net weight | main : 258kg |
| transformer : 178kg |
APPLICATION RANGE:
1. Heat treatment of metals: hardening, tempering, and annealing.
Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper fitting, kitchen knife handle, blade, aluminum pan, aluminum pail, aluminum radiator and various aluminum products.
2. Heating prior to deformation: forging, swaging, upsetting, bending, and piercing.
3. Brazing and Soldering: brazing of steel, brass, and copper to each other in combination and aluminum to aluminum.
4. Shrink fitting: In any manufacturing process, for example, shrink fitting of motor rotors to shafts, shrink fitting of shell casings for compressors.
5. Coating: Of dissimilar metals, prior to insulation, and curing, such as paint.
6. Melting: Of all types of metals.
7. Other applications include crystal growing, cap sealing, sintering, carbon vapor deposition, levitation, exit axial deposition, and plasma generation.
ADVANTAGES OF INDUCTION ANNEALING
Meets tight production tolerances with precise localized heat to small areas creating pinpoint accuracy
Increases production rates with faster heating cycles
Reduces defect rates with repeatable, reliable heat
Eliminates variability from operator-to-operator, shift-to-shift
Maintains metallurgical characteristics of the individual metals
