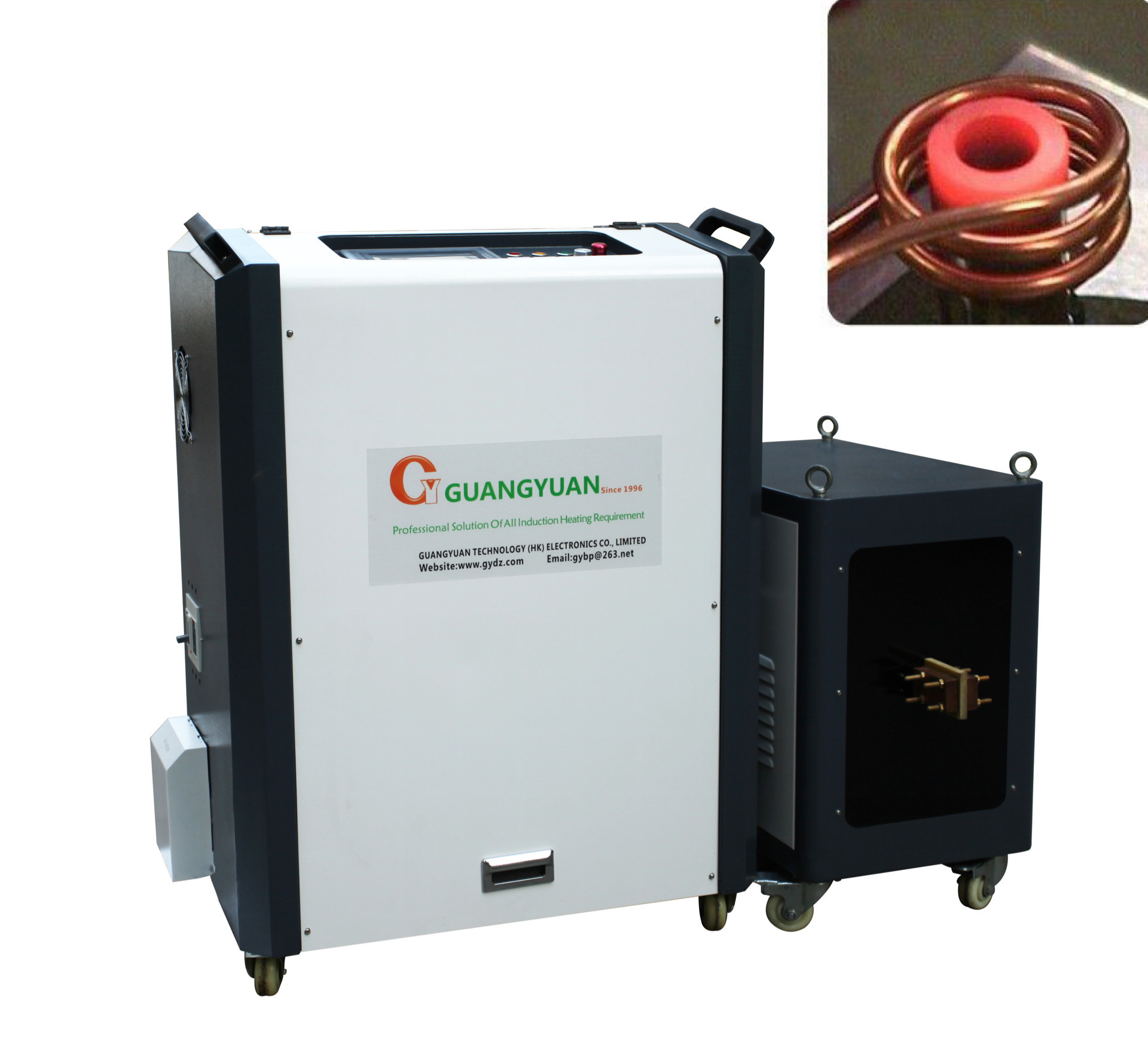

High Frequency Induction Annealing Equipment For Steel Wires, Pipes And Copper Pipes
WHAT IS INDUCTION ANNEALING
Induction annealing is a heat treatment process that uses induction heating to anneal metals. It slowly heats the metal to a specific temperature (the recrystallization temperature) for a sufficient time and then cools at a suitable rate. Induction annealing can reduce the hardness and internal stress of the workpiece, increase the ductility of the workpiece, and improve the reprocessing performance of the workpiece.
Induction heating can also precisely adjust the heating power to control the annealing temperature easily. It is a repeatable process for heating the workpiece, so it is easier to manage the heating result of the workpiece. Induction annealing equipment is easily integrated into the production line, enabling automation and improving production efficiency.
Induction annealing is widely used in the tube and wire processing industry. It is commonly used in annealing steel wires, pipes, blades, saw blades, copper pipes, aluminum rods, and aluminum pipes.
Brief Details:
| Name |
100KW Digtal Control Induction Annealing Equipment For Annealing and Normalizing |
Application | Annealing and Normalizing |
| Work power | 340V-430V | Out power | 100KW |
| Product size | main : 874x520x1100 mm | Certificate | CE,SGS, ROHS |
| transformer : 870x430x750mm |
The paramerters of GYHD-100AB:
| Model | GYHD-100AB (Three phase) |
| Work power | 340v-430v |
| Max input current | 150A |
| Max output power | 100KW |
| Fluctuating frequency | 100-200KHZ |
| The flow rate of cooling water | 0.15-0.3Mpa 10L/Min |
| Water temperature protection point | 40C |
| Product size | main :874x520x1100 mm |
| transformer :870x430x750 mm | |
| Net weight | main : 115 kg |
| transformer : 76.5 kg |
APPLICATION RANGE:
Induction annealing can be used to control the material properties of metals in different manufacturing scenarios. The process of induction annealing allows accurate and reliable control over the material properties of metals inside a part, including hardness, stiffness, and stress inside. Unlike conventional methods, induction annealing produces heat directly within a workpiece using alternating electromagnetic fields.
You can use induction to anneal parts on a continuous moving line quickly. It can be done on single parts, like casings, or in line with the milling machine to draw wires or tubes. Removing a bottleneck caused by furnaces from the manufacturing line allows manufacturers greater flexibility in controlling their line speeds and reducing idle times at other stages in the process.
The wire and cable industry typically uses induction annealing devices to anneal wire in-between and after the annealing step to improve malleability and electrical conductivity.
It is right at home on the modern high-speed spooling and rolling lines. Tube manufacturing typically requires annealing either at the time or after forming or painting. Both seamed and seamless pipes and tubes may need annealing to ensure that the products have the desired uniform and metal properties.
ADVANTAGES OF INDUCTION ANNEALING
Although primarily used for annealing with softer, stress-relieving materials, induction offers excellent advantages over conventional methods.
Induction heating uses less energy than flame-based and oven-based heating techniques. Yet, it produces precisely controlled temperatures and can accurately vary heat throughout the shell’s length.
Induction heating guarantees that every instance is quality-annealed, reducing the variations and damage common to mass annealing processes.
