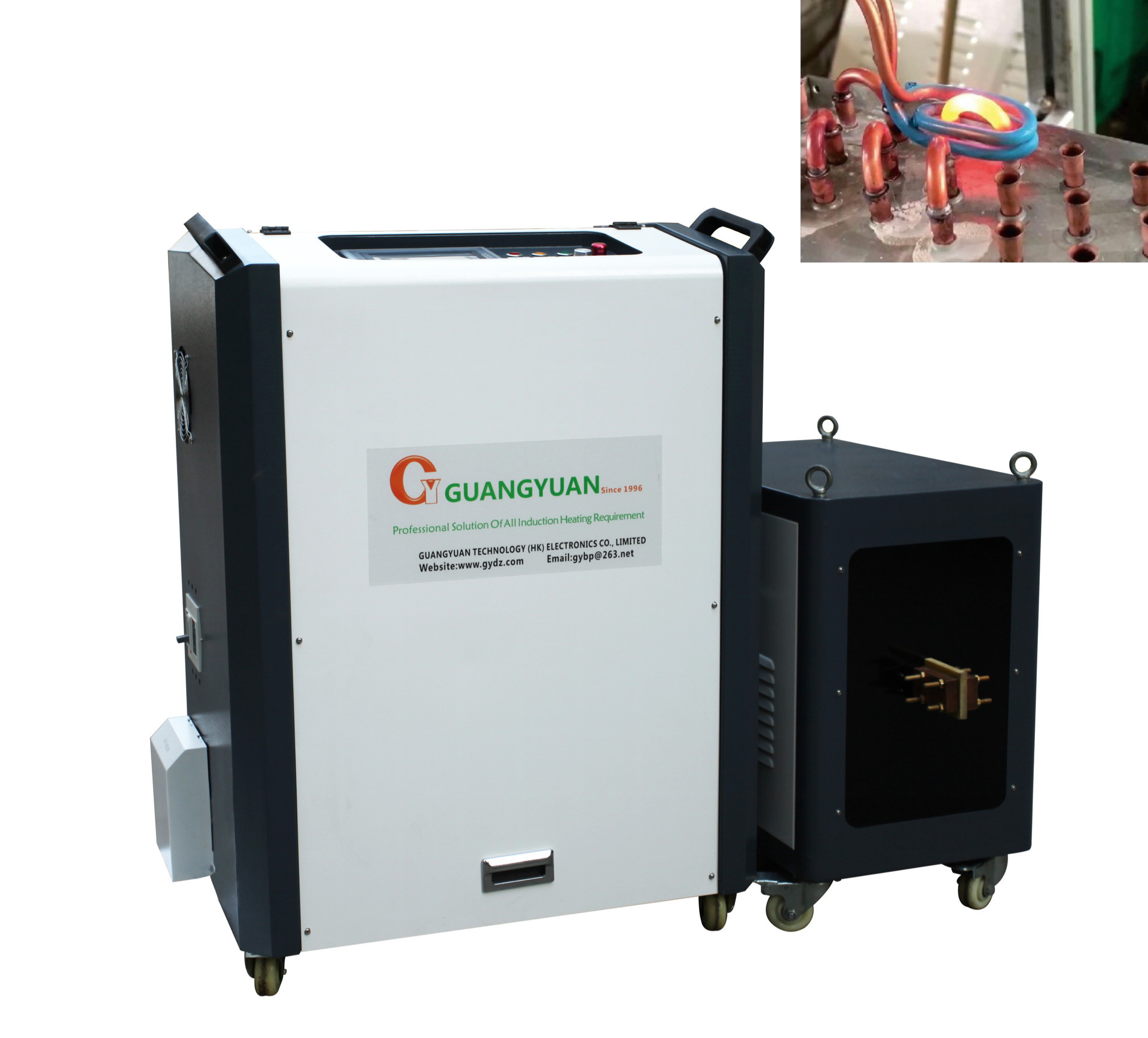

100KW DSP Industrial Induction Annealing Equipment Energy Saving

1 Set
100KW DSP Industrial Induction Annealing Equipment Energy Saving
Features Gallery Product Description Request A Quote
Product Name: Induction Annealing Equipment
Voltage: 380V 3phase
Power: 100KW
Core Components: Circuit Board
Duty Cycle: 100% Hours Non-stop
Application: Annealing,Forging, Quenching,Melting,heat Treatment
Key Point: Safe, Environmentally, Energy Saving , High Efficient
High Light:

100KW Induction Annealing Equipment


Industrial Induction Annealing Equipment


DSP Induction Annealing Equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC,ROHS
Model Number: GYMD-100AB
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 5-8 workdays, based on orders
Payment Terms: T/T
Supply Ability: 500 Sets per month
Product Description

DSP 100KW Digtal Control Induction Annealing Equipment Stainless Online Annealing


100KW DSP Industrial Induction Annealing Equipment Energy Saving 0


Induction annealing is a process in which a precise electromagnetic field is used to heat an electrically conductive material making it more workable by reducing its hardness.

Induction Annealing is a heat treatment process which involves heating of material above its recrystallization temperature. The aim is to reach and maintain a suitable temperature for enough time followed by proper cooling. It is often used in metallurgy and material science to make the treated sample more workable by reducing its hardness and increasing its ductility (ability to undergo a change of form without breaking).


100KW DSP Industrial Induction Annealing Equipment Energy Saving 1


DSP 100KW Digtal Control Induction Annealing Equipment Stainless Online Annealing

Application Stainless steel online annealing
Work power 340V-430V Out power 160KW
Product size main : 1000x695x1100mm Certificate CE,SGS, ROHS
  transformer : 870x430x750mm


The paramerters of DSP 100KW Digtal Control Induction Annealing Equipment Stainless Online Annealing:

Model GYMD-100AB (Three phase)
Work power 340v-430v
Maximum input current 150A
Output power 100KW
Fluctuating frequency 1-10KHZ
The flow rate of cooling water 0.15-0.3Mpa 10L/Min
Water temperature protection point 40C
Product size main :874x520x1100 mm
transformer :870x430x750 mm
Net weight main : 115 kg
transformer : 76.5 kg



100KW DSP Industrial Induction Annealing Equipment Energy Saving 2



1. Heat treatment of metals: hardening, tempering, and annealing.


2. Heating prior to deformation: forging, swaging, upsetting, bending, and piercing.


3. Brazing and Soldering: brazing of steel, brass, and copper to each other in combination and aluminum to aluminum.


4. Shrink fitting: In any manufacturing process, for example, shrink fitting of motor rotors to shafts, shrink fitting of shell casings for compressors.


5. Coating: Of dissimilar metals, prior to insulation, and curing, such as paint.


6. Melting: Of all types of metals.


7. Other applications include crystal growing, cap sealing, sintering, carbon vapor deposition, levitation, exit axial deposition, and plasma generation.

stainless steel tube online annealing

100KW DSP Industrial Induction Annealing Equipment Energy Saving 4


Here is where induction heating technology has the ability to turn the annealing process on its head. Induction can be used to anneal parts in a continuously moving line at high speed. This can be done with individual parts such as bullet casings, or inline with a mill for wire or tube drawing. Removing the bottleneck caused by furnaces from the production line allows manufacturers more freedom to control their line speed, and decreases idle time in other stages of the process.

Induction heating provides improved control of annealing process. Repeatable heating profiles can easily be obtained by precise regultation of the heating power. Since the workpiece is directly heated by the magnetic field, a faster response can be achieved. Moreover, the high overall efficiency of the induction heating process is crucial for such lengthy treatment.

Induction heating can be done very rapidly. This allows induction coils for annealing to be very short compared to furnaces or infrared tunnels. This is particularly pertinent in continuous annealing operations where induction heating may facilitate plant layouts that save considerable floor space.

Induction annealing delivers energy only where it's need, resulting in faster heating times, reduced potential for process error, enhanced process control and energy savings.

100KW DSP Industrial Induction Annealing Equipment Energy Saving 5





100KW DSP Industrial Induction Annealing Equipment Energy Saving 8

Welcome to GY

GY had developed many years of research and is committed to providing customers with all kinds of medium frequency, high frequency, super audio frequency,ultrahigh frequency induction heating equipment, and automation equipment. We provide solutions for project planning, development, design, manufacturing and comprehensive after-sales service according to your needs. One-stop solutions for customer heat treatment needs.The latest DSP+FPGA all-digital control system products provide more professional, more accurate solutions and personalized high-quality products for many users on the road of innovation, transformation and transformation break throughs.



From 1996, devoted

For more than 27 years, GY has always been adhering to the company philosophy of innovation, adherence to quality and excellent operation. A single R&D office researches a single product. After more than 20 years of hard work, it has developed steadily. The current equipment users cover many industries such as manufacturing, electric power and nuclear power,government science reform, university scientific research, and special military industry. In view of the different voltage levels
in some countries, the company has developed special input voltage induction heating equipment for different frequency parameters. For example, the input voltage suitable for use i n the United States, Japan and other countries is single-phase 110V, three-phase 110V, three-phase 220V, and three-phase 480V. Heating equipment and heating equipment with input voltage of three-phase 415V and three-phase 440V suitable for use in Southeast Asian countries such as Malaysia, Australia and Thailand Inheritance builds trust.


Inherit and build trust
Made in China is facing global competition and challenges. To find a suitable position in the international and domestic markets and open up a larger market, we must use more advanced technology and good after-sales service to improve ourselves. We will always be committed to the application and promotion of GY series products in the market with the spirit of pursuing professionalism, excellence and perseverance, and seek cooperation with suppliers, agents and users with professional technical support and good business collaboration. Common development and progress.
