ODM Induction Heating Coil Machine , Induction Heater Portable 5 Meters

ODM Induction Heating Coil Machine , Induction Heater Portable 5 Meters
Features Gallery Product Description Request A Quote
Product Name: Protable Induction Heating Machine
Hand Held Length: 5 Meters
Frequency: 30-80KHZ
Work Power: 240V-380V
Application: Aluminum Pipe Induction Brazing
Warranty: 1 Year
Feature: Touch Screen, Safe, Easy Operation
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

ODM Induction Heating Coil Machine


Induction Heating Coil Machine Portable


Induction Heater Portable 5Meters

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS
Model Number: DSP
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

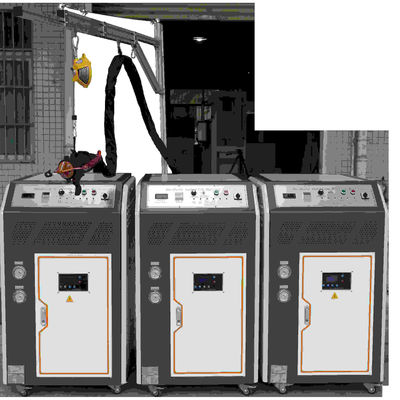

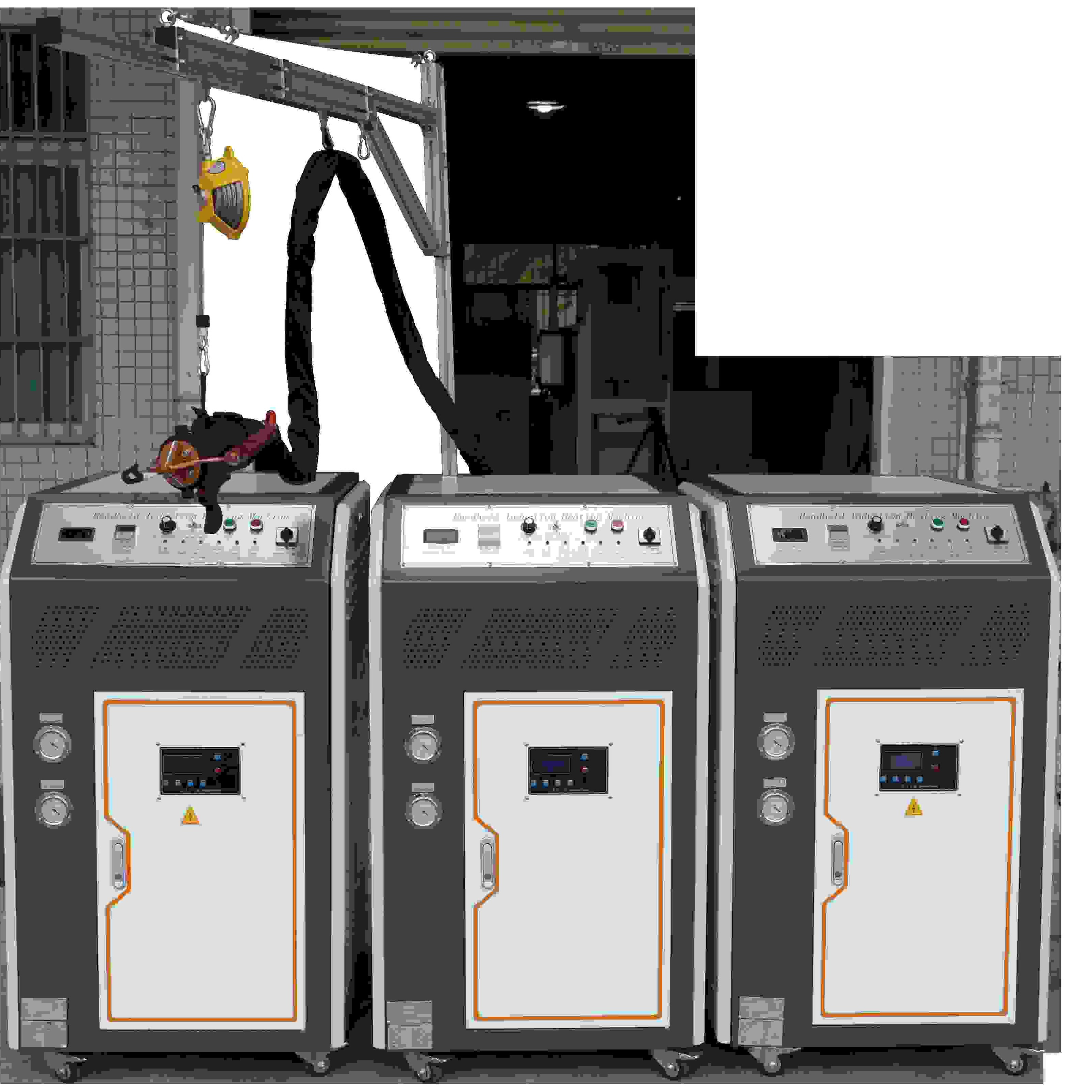

Customized Induction Heating Coil Mobile Induction Heating Machine 5meters Hand Held


ODM Induction Heating Coil Machine , Induction Heater Portable 5 Meters 0
Protable Inductio Heating Machine Features:

GY portable induction welding machine has professional temperature control functions. Can be used in different parts induction welding, induction shrink fitting and etc. No matter what kinds of parts you heat, how complex the induction heating process you need, it all depends on all our professional induction heating machine service teams, we can always help you to find suitable portable induction welding machine solutions.


Major Features:

  • Simple operation: Intelligent digital design, has induction heating, heat preservation, and cooling functions, one minute can learn well to operate.
  • Imported component: All of our portable induction brazing heaters are with international brand, to ensure the induction heaters work more stable and durable.
  • Customized induction heating coil: We can customize the induction heating coils as per different heating applications.
  • Leading induction heater manufacturers: We are one of the leading induction heating machine manufacturers, dedicated to providing customized induction heating solutions for each of our users.

technical parameters
The parameters of the Hand Held Transformer Protable Induction Heating Machine:

         Model Power Supply Output Power Max input current Fluctuating frequency Hand held length Cooling Pressure Flexible Weight
GYT-15AB-1P-2 220V 50KHZ     15KW       35A    30-80KHZ       5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-2 380V 50KHZ     25KW       25A    30-80KHZ       5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-4.5 380V 50KHZ     25KW       25A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-2P-4.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-4.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-6.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 6.5KG
GYT-40AB-3P-6.5 380V 50KHZ     40KW       40A    30-80KHZ       5m 0.15-0.3Mpa 6.5KG
GYT-60AB-5P-10 380V 50KHZ     60KW       60A    30-80KHZ       5m 0.15-0.3Mpa 10KG


However, due to the great difference in magnetic induction performance of heating materials, different heating requirements, and different shapes, and sizes of induction heating coils, the portable induction heating machine needs to make corresponding adjustments to achieve a good heating effect. GY is a customized portable induction heating machine for different heating purposes. It is only suitable for customized induction coils and products and can be used for heating close induction coils and close workpieces at most. Therefore, when ordering the related portable induction brazing machine, you need to provide us with the corresponding detailed information:

  • The heating parts material, shape, size, and pictures.
  • The heating purpose, heating temperature, and the heating time requests.

induction heating machine
protable induction heating machine
induction heating machine application
Applications of hand-held induction heating machine:

  • High frequency portable induction brazing heater is used for induction welding of steel to steel, steel to copper, copper to copper equivalent or dissimilar metals.


  • All kinds of carbide cutters, diamond saw blades, cutting tools, drilling tools, cutting tools welding;


  • Other metal materials composite induction brazing welding; For example, lap welding of copper plate parts for electric power,



  • welding of different kinds of special-shaped metal parts for air conditioning compressors, contact welding, etc.


  • Especially solve all kinds of metal pipe fitting welding, and welding requirements are more strict welding occasions: such as heater piece welding, stainless steel pipe T-shaped welding, ternary alloy connector welding, and copper lap induction welding.

induction welding

ODM Induction Heating Coil Machine , Induction Heater Portable 5 Meters 6

Advantages of hand-held induction heating machine:

GY customized portable induction heating machine is widely used in different fields at present, because of its energy-saving, small and light induction heating head advantages has been widely used in various heating fields, especially for multi-joint robot hand and automatic mechanism for the leading heating production line.

  • The portable induction heating machine heating head is smaller and lighter. It is very suitable for the operator to handle.


  • The induction heating coil is durable, resistant to damage, and easy to maintain;


  • The portable induction heating machine heating head has one or multi capacitors, the cooling structure is simple, of good quality.


  • High heating speed, very energy-saving.


  • GY portable induction heating machines are generally designed for specialized purposes, with a limited range of heating materials and induction heating coils.
