DSP Digital Control Induction Welding Machine Equipment Mobile For Automoblie Parts

DSP Digital Control Induction Welding Machine Equipment Mobile For Automoblie Parts
Features Gallery Product Description Request A Quote
Product Name: Protable Induction Heating Machine
Hand Held Length: 5 Meters
Frequency: 30-80KHZ
Work Power: 240V-380V
Application: Aluminum Pipe Induction Brazing
Warranty: 1 Year
Feature: Touch Screen, Safe, Easy Operation
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

Digital Control Induction Welding Machine


Induction Welding Machine Mobile


DSP induction welding equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS
Model Number: DSP
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

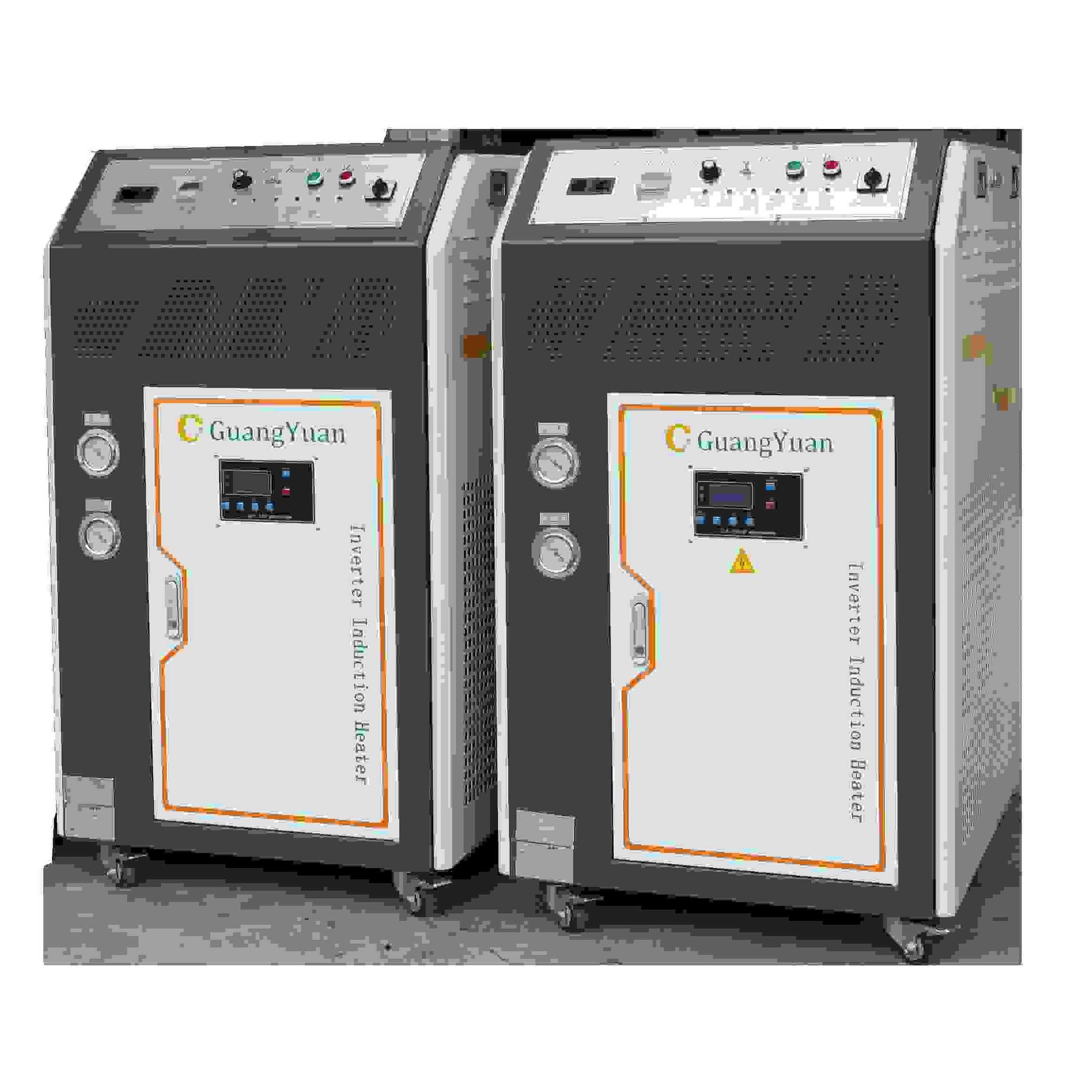

DSP Digital Control Mobile Induction Heating Machine For Welding Automoblie Parts


DSP Digital Control Induction Welding Machine Equipment Mobile For Automoblie Parts 0
Protable Inductio Heating Machine Features:


GY portable induction welding machine has professional temperature control functions. Can be used in different parts induction welding, induction shrink fitting and etc. No matter what kinds of parts you heat, how complex the induction heating process you need, it all depends on all our professional induction heating machine service teams, we can always help you to find suitable portable induction welding machine solutions.


Major Features:


DSP digital control

  • Compare to the traditional analog mini induction heater, digital mini induction heater can work more stable under the different working environments. IGBT can work normally under the best soft switch condition. Avoid the IGBT aging and broken problems, reduce the machine maintenance costs very much.

Ultrahigh precision control

  • Our mini induction heater adopts high precision, frequency converting technology. All of the control processes, data processing data, parameters calculations are in the smart chip, control precision can reach NS level. Combined with the loading matching technology to make sure all the machines can work in the best power factor ranges.

Intelligent protection

  • All of the induction heaters have perfect self-protection functions and rich alarm functions, like over-current, over hot, over-voltage, lack of phase, over frequency, IGBT problem alarms can help the users find the machine faulty quickly.

Seal protection

  • All of our mini induction heaters machine box is customized to have well sealing, to make sure no dust comes into the machine box, and make sure all the induction heater components are working in a very clean environment.

technical parameters
The parameters of the Hand Held Transformer Protable Induction Heating Machine:

         Model Power Supply Output Power Max input current Fluctuating frequency Hand held length Cooling Pressure Flexible Weight
GYT-15AB-1P-2 220V 50KHZ     15KW       35A    30-80KHZ       5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-2 380V 50KHZ     25KW       25A    30-80KHZ       5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-4.5 380V 50KHZ     25KW       25A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-2P-4.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-4.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-6.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 6.5KG
GYT-40AB-3P-6.5 380V 50KHZ     40KW       40A    30-80KHZ       5m 0.15-0.3Mpa 6.5KG
GYT-60AB-5P-10 380V 50KHZ     60KW       60A    30-80KHZ       5m 0.15-0.3Mpa 10KG


However, due to the great difference in magnetic induction performance of heating materials, different heating requirements, and different shapes, and sizes of induction heating coils, the portable induction heating machine needs to make corresponding adjustments to achieve a good heating effect. GY is a customized portable induction heating machine for different heating purposes. It is only suitable for customized induction coils and products and can be used for heating close induction coils and close workpieces at most. Therefore, when ordering the related portable induction brazing machine, you need to provide us with the corresponding detailed information:

  • The heating parts material, shape, size, and pictures.
  • The heating purpose, heating temperature, and the heating time requests.

induction heating machine
protable induction heating machine
induction heating machine application
Applications of hand-held induction heating machine:

Handheld high-frequency induction heater, high-frequency brazing machine can be used for copper pipe, copper bar induction welding.

  • Mobile induction brazing of air conditioning copper tube in the refrigeration industry.


  • Mobile induction brazing welding of automobile parts.


  • Mobile induction brazing of aluminum tubes.


  • Induction brazing of power transformer joints.


  • Mould induction heating.


  • Weld preheating.

induction welding

DSP Digital Control Induction Welding Machine Equipment Mobile For Automoblie Parts 6

Advantages of hand-held induction heating machine:

  • Flexible induction heaters, when working, no pollutant to the environment, it is can work in a vacuum and under gas protection conditions.


  • It is easy to realize the automatic induction brazing welding process.


  • The heating result is good and very energy-saving.


  • Can customize the cable length of the flexible induction heaters.


  • The water cable material is soft with a durable long life design.


  • The fast response of the current and power, fast heating speed, and induction coil can be automatically tracked.


  • Reach high heating temperature: Our mobile induction heater heating temperature can reach more than 1500 degrees.


  • With fast heating speed: can reach the target heating temperature quickly.


  • The mobile induction heater is suitable for heating all kinds of metal materials, such as stainless steel, copper, aluminum, zinc, tin, titanium, etc.


  • The mobile induction heater match with a handheld coaxial transformer, it is easy to handle and can be automatically used with a robot arm.


  • Can replace the induction heating coils faster, the induction heating coils are made in different shapes and sizes and can be easily removed from the induction heating head to replace with another induction coil.


  • Enable control of the temperature: can control the precise temperature when using the TC or infrared probe.


  • With fast PID temperature controller + energy controller+ temperature controller to ensure the consistent induction brazing welding result.


  • The mobile induction heater can install position wheels, which can be used for fixing places or moving the heater for working.


  • This induction heater is very convenient for mobile working, it is suitable for induction brazing welding copper pipe and copper tube, copper tube to the steel tube, steel to steel tubes, copper pipe to stainless steel pipe, etc.
