380V 3 Phase Portable Induction Heating Machine For Diamond Tools Welding

380V 3 Phase Portable Induction Heating Machine For Diamond Tools Welding
Features Gallery Product Description Request A Quote
Product Name: Protable Induction Heating Machine
Control System: IGBT, DSP Touch Control
Frequency: High Frequency, 30-80KHZ
Work Power: 380V 3phase
Application: Welding, Hardening, Quenching, Annealing, Shrink Fit, Melting
Warranty: 1 Year
Feature: Touch Screen, Safe, Easy Operation
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

Diamond Tools Portable Induction Heating Machine


3Phase Portable Induction Heating Machine


380V welding machine induction heater

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS
Model Number: DSP
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

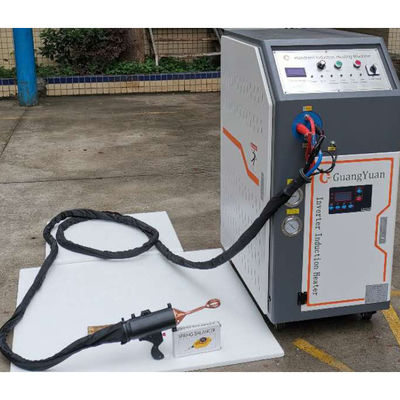

Hand Held Transformer Protable Induction Heating Machine For Welding of Diamond Tools


380V 3 Phase Portable Induction Heating Machine For Diamond Tools Welding 0


Induction heating is a fast, efficient, precise and repeatable non-contact method for heating metals or other electrically-conductive materials. The material may be a metal such as brass, aluminum, copper or steel or it can be a semiconductor such as silicon carbide, carbon or graphite.



Protable Inductio Heating Machine Features:

  • Hand-held transformer inner adopt amorphous materialcore;
  • Adopt water and electricity separation design, easy ot installation and operation;
  • Integral shell design,no patching,no metal exposed;
  • No need to increase the water pressure, matching same with the main power supply water pressure;
  • Save more than 80% of space and more than 75% of weight than traditional transformers;
  • No need to gather magnetism, stable magnetic field output, to ensure the best long-term heating effect;
  • AC withstand voltage test 10,000 volts, leakage current 2 mA, water pressure test 6 kg without water leakage.

technical parameters

The parameters of the Hand Held Transformer Protable Induction Heating Machine For Welding of Diamond Tools

         Model Power Supply Output Power Max input current Fluctuating frequency Hand held length Cooling Pressure Flexible Weight
GYT-15AB-1P-2 220V 50KHZ     15KW       35A    30-80KHZ       5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-2 380V 50KHZ     25KW       25A    30-80KHZ       5m 0.15-0.3Mpa 2KG
GYT-25AB-2P-4.5 380V 50KHZ     25KW       25A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-2P-4.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-4.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 4.5KG
GYT-30AB-3P-6.5 380V 50KHZ     30KW       32A    30-80KHZ       5m 0.15-0.3Mpa 6.5KG
GYT-40AB-3P-6.5 380V 50KHZ     40KW       40A    30-80KHZ       5m 0.15-0.3Mpa 6.5KG
GYT-60AB-5P-10 380V 50KHZ     60KW       60A    30-80KHZ       5m 0.15-0.3Mpa 10KG




induction heating machine


protable induction heating machine




induction heating machine application

1. Welding of diamond tools and cemented carbide tools;


2. High frequency welding of various metal steel-steel, steel-copper, copper-copper equivalent metals or dissimilar metals:


3. Heat treatment of metal materials such as hardening, annealing, modulation and tempering, and so on.


4. Metal hot forging and hot forming;


5. Powder metallurgy sintering and metal smelting;


6. Curing of organic coatings;


7. Heating and stretching of monocrystalline silicon;


8. Other application wheremetals need to be heated.


9. Copper pipe elbow welding and joint welding in the air conditioning industry


induction brazing



380V 3 Phase Portable Induction Heating Machine For Diamond Tools Welding 6

Q1: Why should I trust your company and choose you?
A1: We are a professional induction heating equipment, set research and develop sales, service as one of the high-tech enterprises. We have 27 years of profession: equipment research and development experience, is China's most professional bra heating complete sets of automation equipment manufacturers.


Q2: Where is your company and can I come and visit it?
A2: Yes, Bajiaowo Industrial Park, Wanjiang District, Dongguan, Guangdong, China. You are welcome to visit our factory anytime


Q3: How do I set up your machine
A3: We have paper installation instructions and videos, and we'll teach them until you learn them.


Q4: Do you have any equipment in stock?
A4: Yes, we have some of our best-selling models in stock for immediate delivery upon payment


Q5: Can you provide free samples of the machines?
A5: Sorry, we can't give you a free sample because of the high price of the machines, we can sample test your workpiece for free.Our machines are sure to meet your requirements and give you satisfaction.


Q6: What is your quality control?
A6: We have A professional team responsible for product testing and packaging before delivery, you can rest assured to buy.


Q7: How many days will it arrive after I buy the machine?
A7: Usually 5-7 workdays, but 20-30 days for large machines


Q8: What should I do if the machine breaks down?
A8: Within the one year warranty of the machine, we will provide you with spare parts free of char For customers who buy the machines, if they have any problems with the machines, they can take pictures or record videos for us. We will guide the customer to carry out repairs. If we still can't sol the problem, we can send our engineer to your factory


Q9. What about the warranty?
A9: All of our products have a one-year warranty. During the warranty period, spare parts will be replaced free of charge. We provide lifelong technical support and other assistance.
