380V 3 Phase Induction Annealing Equipment Machine With Soft Switch 20KHZ

1 Set
380V 3 Phase Induction Annealing Equipment Machine With Soft Switch 20KHZ
Features Gallery Product Description Request A Quote
Power: 120KW
Voltage: 380V 3phase
Operation Manual: Provided
Core Components: Circuit Board
Duty Cycle: 100% Hours Non-stop
Application: Annealing,Forging, Quenching,Melting,heat Treatment
Key Point: Safe, Environmentally, Energy Saving , High Efficient
High Light:

380V Induction Annealing Equipment


3Phase Induction Annealing Equipment


20KHZ induction annealing machine

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC,ROHS
Model Number: GYTM-120AB
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 5-8 workdays, based on orders
Payment Terms: T/T
Supply Ability: 500 Sets per month
Product Description

120KW Light Touch Screen Induction Annealing Equipment Soft Switch 5-20KHZ

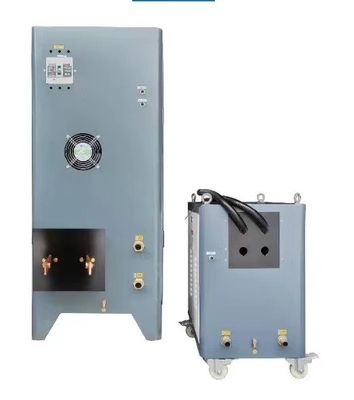

380V 3 Phase Induction Annealing Equipment Machine With Soft Switch 20KHZ 0

12 advantages of the induction annealing equipment:


1. FAST HEATING   The minimum rate of heating is less than 1 second (rate of heating is aviailable for adjustment and control).


2. WIDE COVERAGE OF HEATING   It can be used to heat various metal parts ( replace removable induction coil as per different operating swithes.


3. EASY INSTALLATION  It can be used once it is connected with power source, induction coil as well as water supply pipe and rising pipe; it is smal in size and light in weight.


4. EASY OPERATION  You can learn to operate it within several minutes.


5. FAST START-UP It can be started to perform heating operation on condition that water and power supply is available.


6. LOW POWER CONSUMPTION As compared with conventional vacuum tube high frequency equipments, it can save the power by apporximately 70%. The smaller the size of the workpiece, the lower consumption would be.


7. HIGH EFFECTIVENESS It has such features as uniform heating( it is applicable to adjust the spacing of the induction coil to ensure the appropriate temperature as required by each part of workpiece), fast warming and limited oxic horizon, and can guard against any waste afer annealing.


8. COMPREHENSIVE PROTECTION It has such functions as overvoltage, over-current, overheat and water shortage alarm indications as well as automatic control and protection.


9.  CONTROLLABLE TEMPREATURE Controllable temperature: it is applicable to control the temperature for heating workpiece as per the preset heating time, and thereby control the heating temperature at a certain technical point.


10. COMPREHENSIVE FULL LOAD DESIGN 100% full load design, it can work continuously 24 hours.


11. SMALL SIZE AND LIGHT WEIGHT  Small area, saving workshop space, good working environment, environmental protection, engergy saving, safety, no noise, exhaust gas, dust and other emissions.


12. ELIMINATION OF HIGH VOLTAGE It requires no step-up transformer which may produce appoximately ten thousand voltage, and thus can ensure the maximum safety.

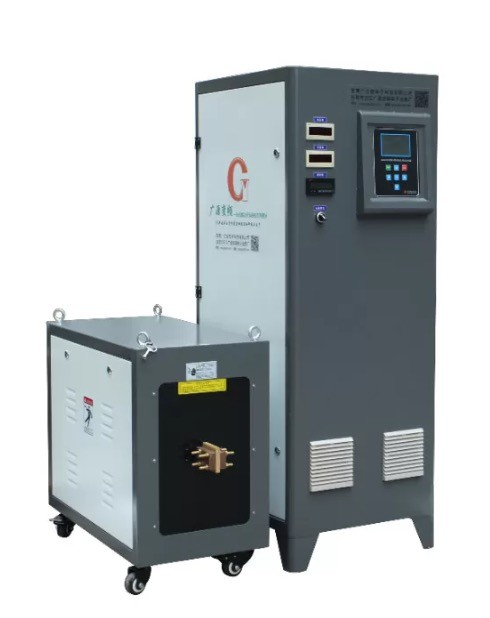

380V 3 Phase Induction Annealing Equipment Machine With Soft Switch 20KHZ 1

The paramerters of the lght touch screen induction annealing machine GYTS-120AB:

Model GYTS-120AB (Three phase)
Work power 340V-430V
Maximum input current 150A
Output power 120KW
Fluctuating frequency 5-20KHZ
Output current 400-4000A
The flow rate of cooling water 0.08-0.16Mpa 12L/Min
Water temperature protection point 50C
Product size main : 770*550*1510MM
transformer : 950*420*770MM
Net weight main : 145kg
transformer : 108kg


Application Range:


1. Heat treatment of metals: hardening, tempering, and annealing.


2. Heating prior to deformation: forging, swaging, upsetting, bending, and piercing.


3. Brazing and Soldering: brazing of steel, brass, and copper to each other in combination and aluminum to aluminum.


4. Shrink fitting: In any manufacturing process, for example, shrink fitting of motor rotors to shafts, shrink fitting of shell casings for compressors.


5. Coating: Of dissimilar metals, prior to insulation, and curing, such as paint.


6. Melting: Of all types of metals.


7. Other applications include crystal growing, cap sealing, sintering, carbon vapor deposition, levitation, exit axial deposition, and plasma generation.


380V 3 Phase Induction Annealing Equipment Machine With Soft Switch 20KHZ 2

induction heating machine, induction quenching machine

380V 3 Phase Induction Annealing Equipment Machine With Soft Switch 20KHZ 4

The Advantages of Light Touch Screen Induction Heating Machine:

1. It has a sensitive reaction speed.

2. Light touch screen front panel switch are not easy to enter debris, dust, oil penetration; Also it is easy to clean and dustproof.

3. Personalized design, simple and beautiful appearance.

4.  Reasonable internal structure design (Less internal lost; Light load; Accessories are not easy become hot)


Light Touch Screen Induction Heating Machine type Advantage for Forging and Quenching:

1. This equipment adopts advanced pulse density modulation power adjustment method, which controls the power size by adjusting the drive pulse generation density of the inverter power switch tube, referred to as PDM power adjustment.

2, The main advantage of PDM power modulation method: It is to ensure that the operating frequency of the equipment is basically unchanged through frequency tracking technology, and is synchronized with the network resonance frequency, so that the inverter always works in the resonance state, has a higher power factor, and can be achieved The power switch tube always works in the soft switching state, which greatly reduces the switching loss and reactive loss.

380V 3 Phase Induction Annealing Equipment Machine With Soft Switch 20KHZ 5

380V 3 Phase Induction Annealing Equipment Machine With Soft Switch 20KHZ 6


induction heating machine, induction quenching machineinduction heating machine, induction quenching machine


380V 3 Phase Induction Annealing Equipment Machine With Soft Switch 20KHZ 9
