Electromagnetic HF Induction Heater Energy Saving Environment Friendly

Electromagnetic HF Induction Heater Energy Saving Environment Friendly
Features Gallery Product Description Request A Quote
Product Name: High Frequency Induction Heater
Work Principle: Electromagnetic Induction Heating
HS CODE: 85144000
Heating Material: Metals
Application: Hardening, Quenching, Annealing, Shrink Fit, Melting
Warranty: 1 Year
Feature: Touch Screen, Safe, Easy Operation
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

Electromagnetic HF Induction Heater


HF Induction Heater Energy Saving


Environment Friendly electromagnetic induction heater

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS SGS
Model Number: DSP
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

Envrioment Friendly High Frequency Induction Heating Machine Engergy Saving 30%-70%





Induction heating is the principle of electromagnetic heating through the composition of the electronic circuit board to produce an alternating magnetic field, when an iron containing container is placed on it, the surface of the container is cut alternating magnetic force line and produces alternating current at the bottom of the container. Eddy current makes the carrier at high speed move irregularly at the bottom of the container, and the carriers collide with each other and produce heat. So that the effect of heating items. Because the iron container is self heating, the thermal conversion rate is particularly high, up to 95%, which is a direct heating method.


The  Induction heating system Is composed of an induction heater and an heating coil.


technical parameters


Model GYD-250AB (Three phase)
Work power 340V-430V
Maximum input current 375A
Output power 250KW
Fluctuating frequency 30-80KHZ
The flow rate of cooling water 0.08-0.16Mpa 12L/Min
Water temperature protection point 50C
Product size main : 1090*650*1610MM
transformer : 1070*480*850MM
Net weight main : 258kg
transformer : 178kg



Induction Heater Power Require Depends on following factors :
» Mass of work piece » Material properties of work piece
» Temperature increase you require » Heating time require
» Effectiveness of coil design » Comprehensive full load design
» Any heat loss during heating process

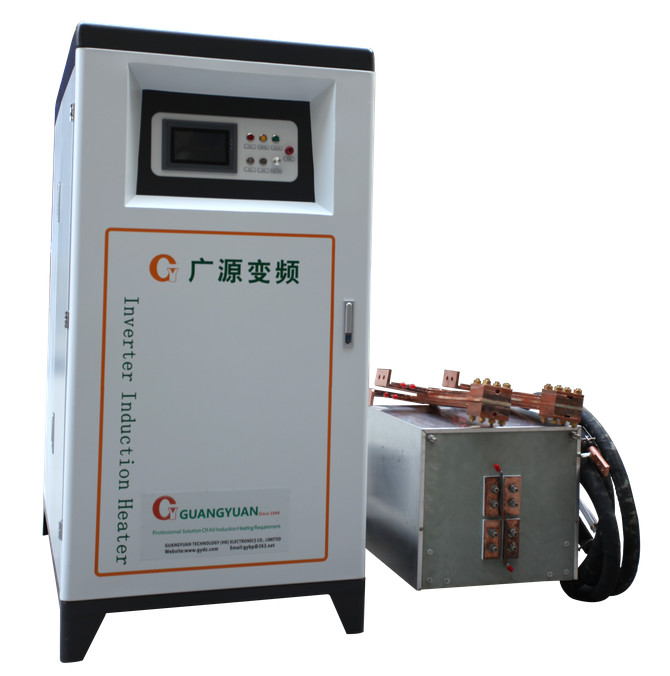

induction heating machine


induction heating machine

induction heating machine

Electromagnetic HF Induction Heater Energy Saving Environment Friendly 4



  • Inductive heating is used for surface heating, melting and soldering, etc.


  • Inductive heating is also used for heating of liquid conductors and gaseous conductors.


  • In semiconductor industries, the inductive heating is used for heating of silicon.


  • Inductive heating is used in inductive furnaces for heating the metals to their melting point.


  • The induction stoves used in kitchen works on the principle of inductive heating.


  • As the induction heating is contactless heating process. Therefore, induction heating is used in vacuum furnaces for making specialized steel and alloys that would get oxidized when heated in the presence of oxygen.


  • The induction heating is used in plastic injection modeling machines.


  • The induction heating is also used for tamper resistant cap sealing on bottles and pharmaceuticals.


  • Induction heating is used for welding of metals and sometimes plastics when they are doped with ferromagnetic ceramics.

Electromagnetic HF Induction Heater Energy Saving Environment Friendly 5


  • Energy saving and environment-friendly


  • Induction heating is the most clean, efficient, cost-effective, precise material heating available to the industry.


  • Used top brand parts, such as Germany Infineon IGBT module.


  • High Energy saving effect: compare with electric heating rod energy save 30%~70%.


  • Safety: no open fire, can be touch, Suitable for use in flammable and explosive environment, Especially safety for Chemical and Crude Oil Industries heating.


  • Reliable: Low failure rate and good quality, 24 month warranty, 10 years lifespan.


  • Quickly heating, Automatic control, Increase production output



induction heating machine, induction heating equipment

GY had developed 27 years of research and is committed to providing customers with all kinds of medium frequency, high frequency, super audio frequency,ultrahigh frequency induction heating equipment, and automation equipment. We provide solutions for project planning, development, design, manufacturing and comprehensive after-sales service according to your needs. One-stop solutions for customer heat treatment needs.The latest DSP+FPGA all-digital control system products provide more professional, more accurate solutions and personalized high-quality products for many users on the road of innovation, transformation and transformation breakthroughs.


From 1996, devoted
For more than 20 years, GY has always been adhering to the company philosophy of innovation, adherence to quality and excellent operation. A single R&D office researches a single product. After more than 20 years of hard work, it has developed steadily. The current equipment users cover many industries such as manufacturing, electric power and nuclear power,government science reform, university scientific research, and special military industry. In view of the different voltage levels in some countries, the company has developed special input voltage induction heating equipment for different frequency parameters. For example, the input voltage suitable for use i n the United States, Japan and other countries is single-phase 110V, three-phase 110V, three-phase 220V, and three-phase 480V. Heating equipment and heating equipment with input voltage of three-phase 415V and three-phase 440V suitable for use in Southeast Asian countries such as Malaysia, Australia and Thailand Inheritance builds trust.


Inherit and build trust
Made in China is facing global competition and challenges. To find a suitable position in the international and domestic markets and open up a larger market, we must use more advanced technology and good after-sales service to improve ourselves. We will always be committed to the application and promotion of GY series products in the market with the spirit of pursuing professionalism, excellence and perseverance, and seek cooperation with suppliers, agents and users with professional technical support and good business collaboration, common development and progress.
