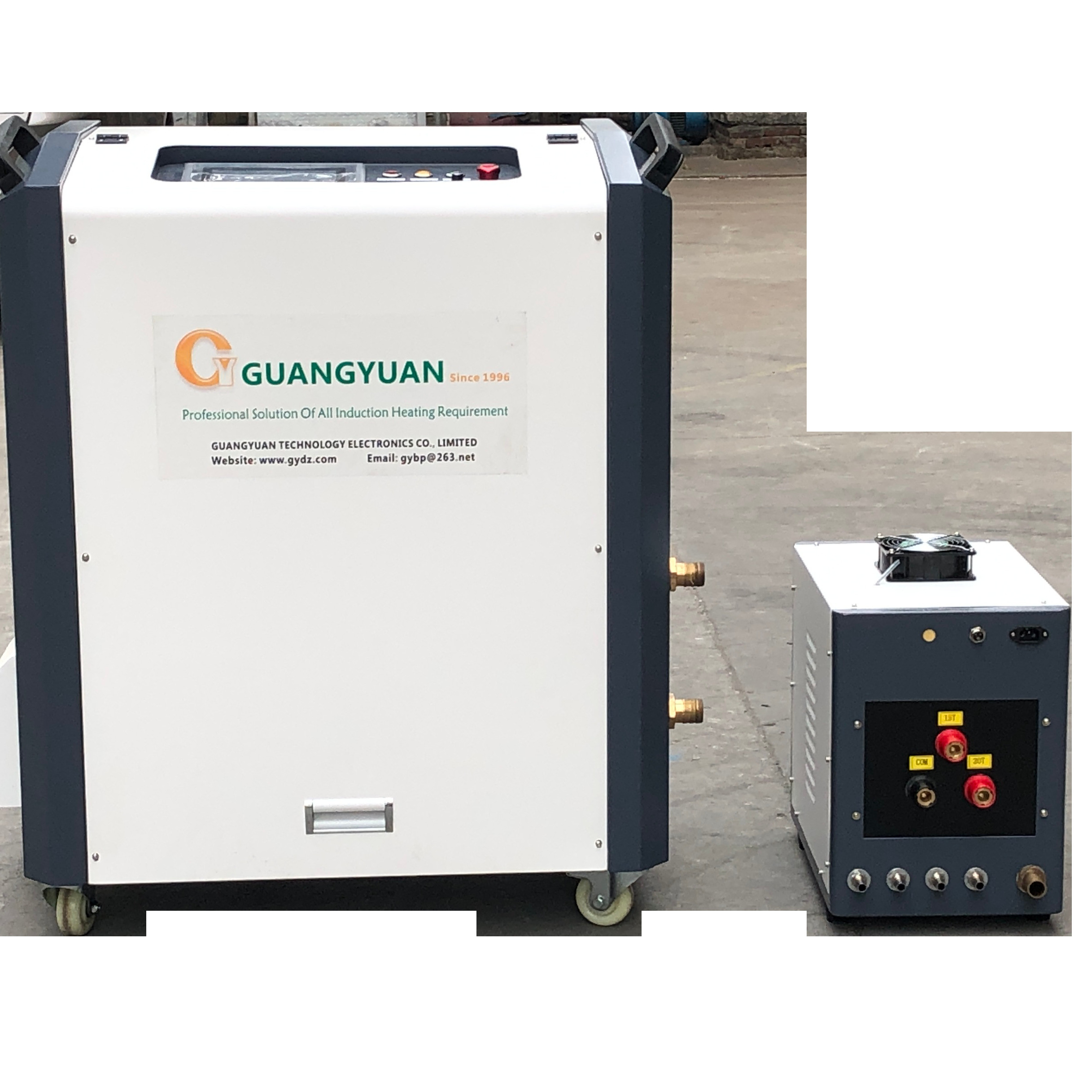

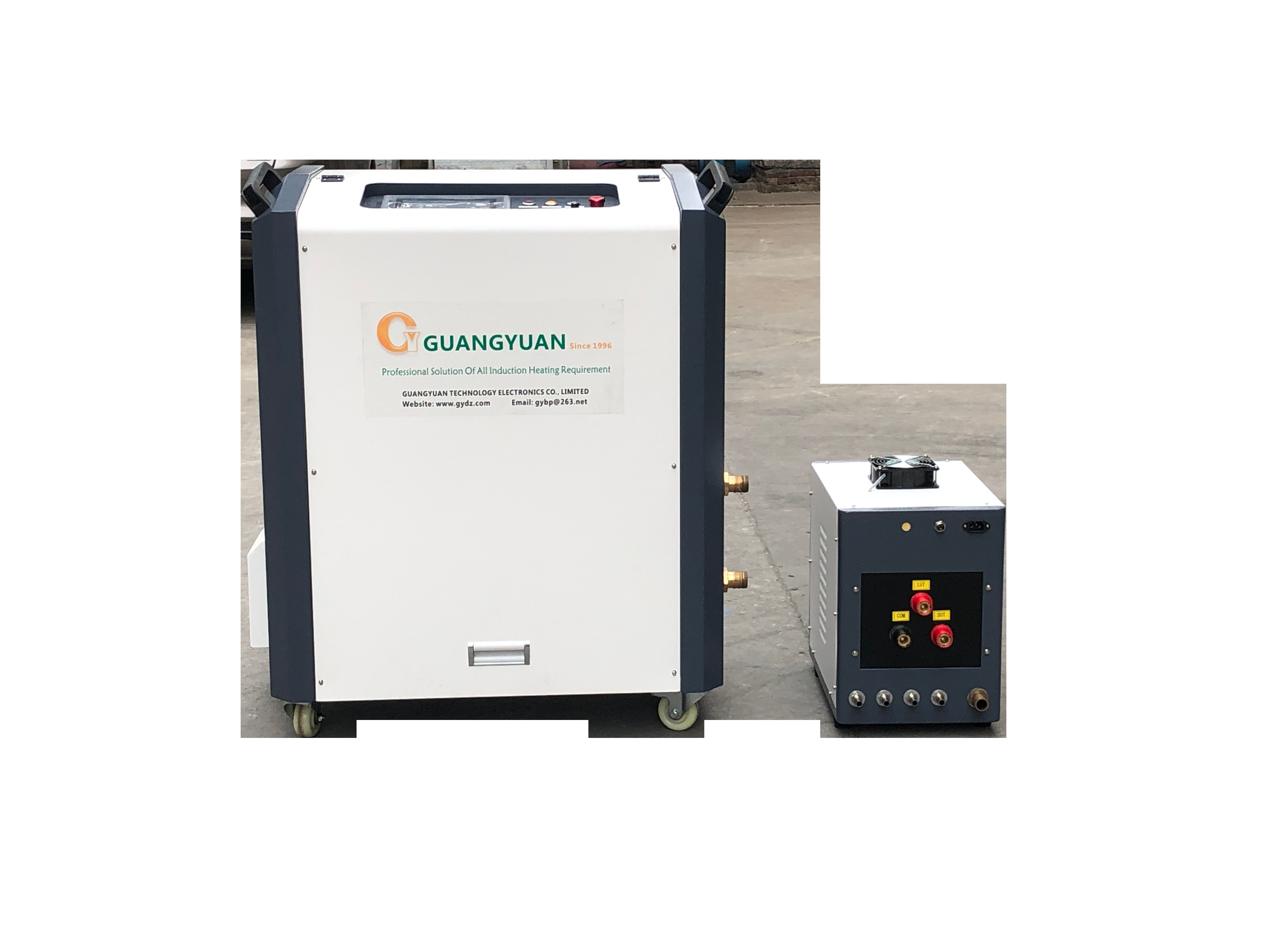

Touch Screen HF Induction Heating Machine For Surface Hardening

Touch Screen HF Induction Heating Machine For Surface Hardening
Features Gallery Product Description Request A Quote
Product Name: High Frequency Induction Heater
Work Principle: Electromagnetic Induction Heating
HS CODE: 85144000
Heating Material: Metals
Application: Hardening, Quenching, Annealing, Shrink Fit, Melting
Warranty: 1 Year
Feature: Touch Screen, Safe, Easy Operation
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

Touch Screen HF Induction Heating Machine


Hardening HF Induction Heating Machine


Surface induction hardening machine

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS SGS
Model Number: DSP
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

No Pollution High Frequency Induction Heating Machine For Surface Hardening




The high-frequency induction heater operates on the electromagnetic induction principle, with alternating current passing through the induction coil. This causes it to generate an alternating magnetic field that cuts the metal parts, causing eddy currents in the parts to generate heat. The frequency of the HF induction heating machine ranges between 30 and 80 kHz. It also has a heating depth of 0.5-2.5 mm and can be used to heat small and medium-sized parts.

technical parameters


Model GY-60AB (Three phase)
work power 340V-430V
input current 60A
Fluctuating output power 60KVA
fluctuating frequency 30-80KHZ
output current 400-2400A
the flow rate of cooling water 0.08-0.16Mpa 7.6L/Min
water temperature protection point 40C
product size main : 640x280x550 mm
transformer : 510x260x410 mm
net weight main : 37.5 kg
transformer : 32.5 kg



Induction Heater Power Require Depends on following factors :
» Mass of work piece » Material properties of work piece
» Temperature increase you require » Heating time require
» Effectiveness of coil design » Comprehensive full load design
» Any heat loss during heating process


induction heating machine


induction heating machine, induction heating equipmentinduction heating machine, induction heating equipment

Touch Screen HF Induction Heating Machine For Surface Hardening 4


Where are induction tempers used? Steel and cast-iron hardening is the most common application for induction heat treating.

Induction tempering is used extensively in the automotive industry for tempering surface-hardened components like shafts, bars, and joints. The tubing and pipe industries also use the process to temper workpieces. It is also a form of case hardening, which can be used on many plates of steel and steel alloys to increase surface layer properties, such as wear resistance and hardness.

Other industry uses include:

  • Tractors and construction machinery
  • Machine tool manufacturing industry
  • Heavy machinery
  • Bearing industry
  • Railway
  • Transportation
  • Oil rigs
  • Metallurgical machinery


Touch Screen HF Induction Heating Machine For Surface Hardening 5


  • Electromagnetic induction heating, non-contact heating.
  • Even heating and good consistency of results.
  • Energy saving, cleanness and no pollution.
  • Adjustable power.
  • Flexible cables and induction heating heads can be equipped.
  • Infrared temperature measuring equipment can be equipped.
  • Automatic production can be realized.
  • Operation failure alarm.


induction heating machine, induction heating equipment

GY had developed 27 years of research and is committed to providing customers with all kinds of medium frequency, high frequency, super audio frequency,ultrahigh frequency induction heating equipment, and automation equipment. We provide solutions for project planning, development, design, manufacturing and comprehensive after-sales service according to your needs. One-stop solutions for customer heat treatment needs.The latest DSP+FPGA all-digital control system products provide more professional, more accurate solutions and personalized high-quality products for many users on the road of innovation, transformation and transformation breakthroughs.


From 1996, devoted
For more than 20 years, GY has always been adhering to the company philosophy of innovation, adherence to quality and excellent operation. A single R&D office researches a single product. After more than 20 years of hard work, it has developed steadily. The current equipment users cover many industries such as manufacturing, electric power and nuclear power,government science reform, university scientific research, and special military industry. In view of the different voltage levels in some countries, the company has developed special input voltage induction heating equipment for different frequency parameters. For example, the input voltage suitable for use i n the United States, Japan and other countries is single-phase 110V, three-phase 110V, three-phase 220V, and three-phase 480V. Heating equipment and heating equipment with input voltage of three-phase 415V and three-phase 440V suitable for use in Southeast Asian countries such as Malaysia, Australia and Thailand Inheritance builds trust.


Inherit and build trust
Made in China is facing global competition and challenges. To find a suitable position in the international and domestic markets and open up a larger market, we must use more advanced technology and good after-sales service to improve ourselves. We will always be committed to the application and promotion of GY series products in the market with the spirit of pursuing professionalism, excellence and perseverance, and seek cooperation with suppliers, agents and users with professional technical support and good business collaboration, common development and progress.
