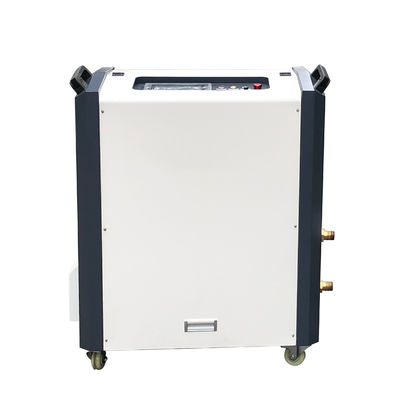

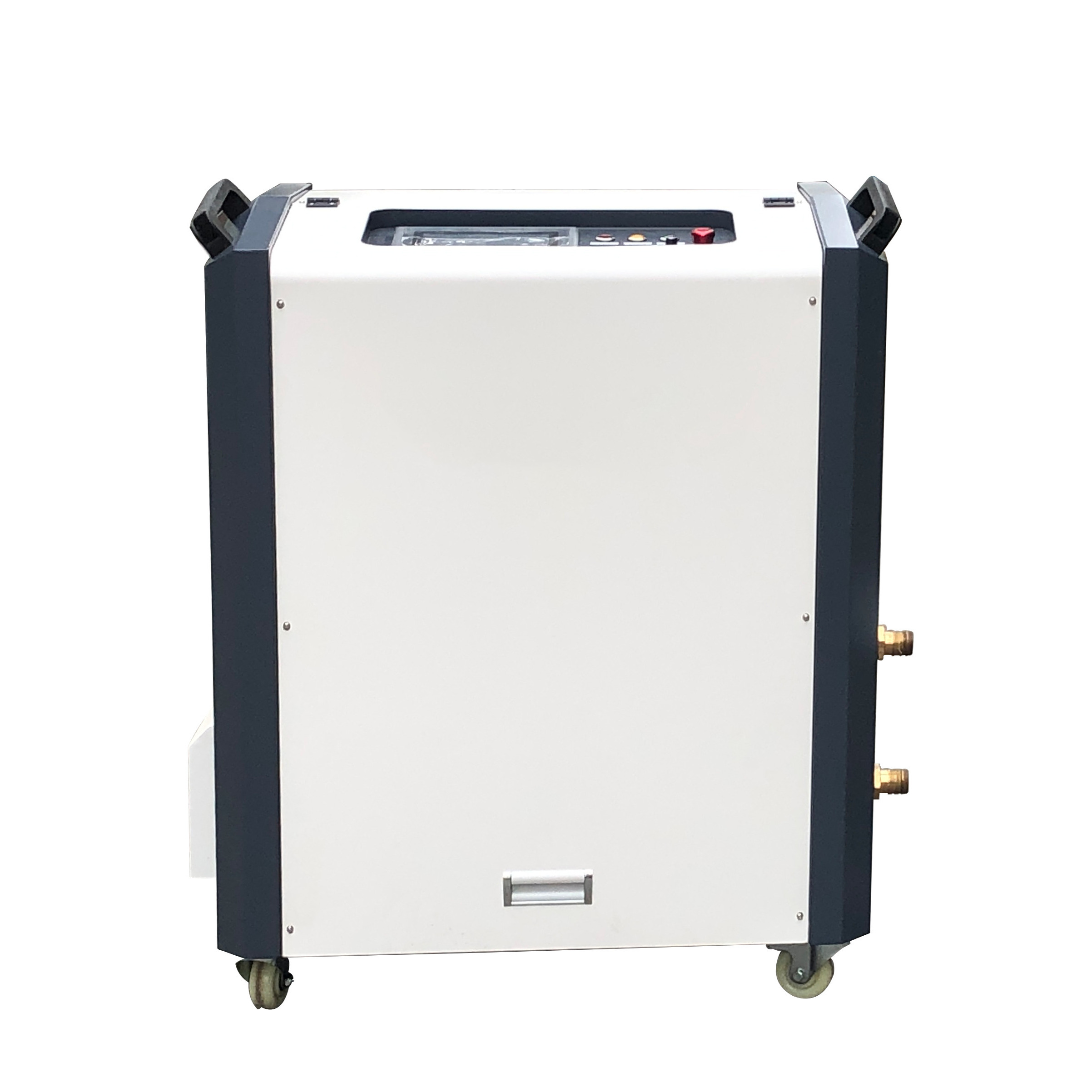

Electromagnetic High Frequency Induction Furnace For Metals Heating

Electromagnetic High Frequency Induction Furnace For Metals Heating
Features Gallery Product Description Request A Quote
Product Name: High Frequency Induction Heater
Work Principle: Electromagnetic Induction Heating
Frequency: 30-80KHZ
Heating Material: Metals
Application: Hardening, Quenching, Annealing, Shrink Fit, Melting
Warranty: 1 Year
Feature: Touch Screen, Safe, Easy Operation
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

Electromagnetic High Frequency Induction Furnace


Metals High Frequency Induction Furnace


Heating high frequency furnace

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS SGS
Model Number: DSP
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

24Hours Continuously Work High Frequency Induction Heating Machine Of Metals




High frequency induction furnace, also can be called high frequency induction heating machine, high frequency induction heating device, high frequency heating power supply, high frequency welding machine, high frequency induction heater, etc. It is mainly used for induction heating of metal materials, and non-contact can be heated to metal very fast. It has the advantages of energy saving, environmental protection, power saving, small size, convenient installation and operation, fast heating speed, safety, and high efficiency.

technical parameters


Model GY-70AB (Three phase)
work power 340V-430V
input current 70A
Fluctuating output power 70KVA
fluctuating frequency 30-80KHZ
output current 400-3200A
the flow rate of cooling water 0.08-0.16Mpa 9L/Min
water temperature protection point 40C
product size main :780x370x620 mm

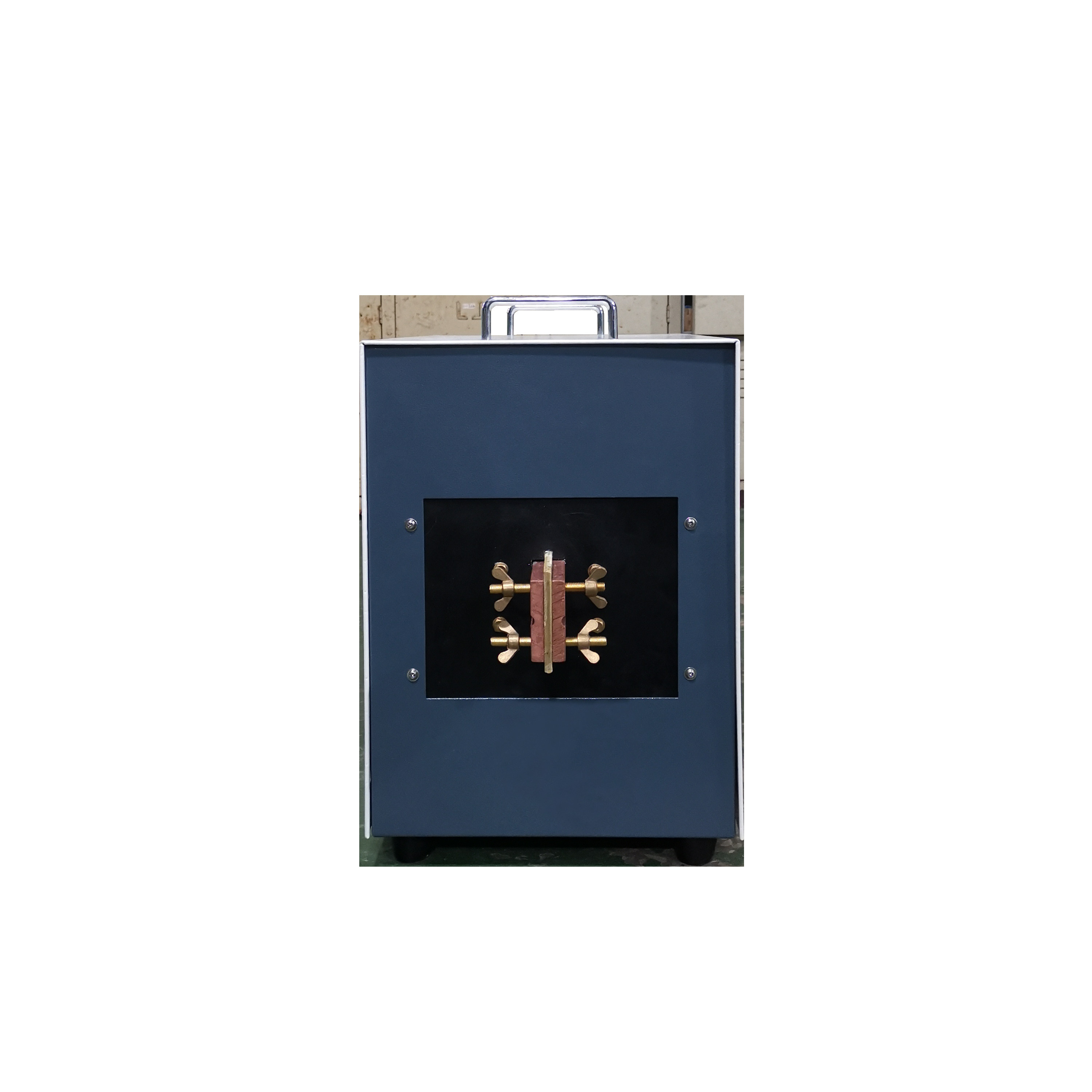

transformer :870x430x750 mm
net weight main : 54 kg
transformer : 76.5 kg



Induction Heater Power Require Depends on following factors :
» Mass of work piece » Material properties of work piece
» Temperature increase you require » Heating time require
» Effectiveness of coil design » Comprehensive full load design
» Any heat loss during heating process


induction heating machine

induction heating machineinduction heating machine


Electromagnetic High Frequency Induction Furnace For Metals Heating 4



The use of high-frequency induction furnaces is extensive. In addition to the rapid heating of gold, silver, copper, iron, aluminum, steel, and other metal materials, it can also be applied in the following fields:

  • Hot induction forging and pressing industry — whole forging, partial forging, bit pressing, etc.


  • Induction welding – all kinds of metal products induction brazing, cutting tool blade welding, copper pipe induction welding, in the optical cable manufacturing industry, can be used for steel lap welding.


  • Heat treatment – metal quenching, annealing, tempering, especially for local treatment, in the optical cable manufacturing industry, mainly used for sheath material and metal strip stripping.


  • Induction smelting – casting smelting, precious metal smelting, small laboratory smelting, etc.


  • Other applications powder coating, metal implanted plastic, heat degreasing, in the optical cable manufacturing industry, used for wire extruded layer steel wire degreasing, impurities.

Electromagnetic High Frequency Induction Furnace For Metals Heating 5


High frequency induction furnace, under the same conditions as the traditional high frequency tube heating equipment energy saving 50%, no high frequency radiation, no high frequency dry. Reduced power load and power capacity, with 100% full load design, high frequency induction furnace can work continuously for 24 hours. With automatic heating, heat preservation, and cooling three periods of function setting, is conducive to improving the high frequency induction heater heating quality, and simplify manual operation. According to the power and frequency of high frequency induction furnace heating electrical source, the higher the high frequency, the shallower the heating depth, the lower the high frequency, the better the diathermy. Automatic tracking of 30-80KHZ high frequency of induction heater.

  • Fast heating: compared with other methods, high frequency induction furnace can be heated to the desired target temperature in seconds.


  • Local heating: heating only the steel strip, through the steel strip to generate heat to melt the surface polyester film, with no harm to other parts of the cable.


  • Automatic operation at relatively stable temperature: even if the production personnel are not skilled enough, it can ensure the normal operation of the equipment.


  • Green environmental protection: no harmful substances.


  • Adjust the output of high frequency according to the mass, heating time, and temperature of the heated object

induction heating machine, induction heating equipment

GY had developed 27 years of research and is committed to providing customers with all kinds of medium frequency, high frequency, super audio frequency,ultrahigh frequency induction heating equipment, and automation equipment. We provide solutions for project planning, development, design, manufacturing and comprehensive after-sales service according to your needs. One-stop solutions for customer heat treatment needs.The latest DSP+FPGA all-digital control system products provide more professional, more accurate solutions and personalized high-quality products for many users on the road of innovation, transformation and transformation breakthroughs.


From 1996, devoted
For more than 20 years, GY has always been adhering to the company philosophy of innovation, adherence to quality and excellent operation. A single R&D office researches a single product. After more than 20 years of hard work, it has developed steadily. The current equipment users cover many industries such as manufacturing, electric power and nuclear power,government science reform, university scientific research, and special military industry. In view of the different voltage levels in some countries, the company has developed special input voltage induction heating equipment for different frequency parameters. For example, the input voltage suitable for use i n the United States, Japan and other countries is single-phase 110V, three-phase 110V, three-phase 220V, and three-phase 480V. Heating equipment and heating equipment with input voltage of three-phase 415V and three-phase 440V suitable for use in Southeast Asian countries such as Malaysia, Australia and Thailand Inheritance builds trust.


Inherit and build trust
Made in China is facing global competition and challenges. To find a suitable position in the international and domestic markets and open up a larger market, we must use more advanced technology and good after-sales service to improve ourselves. We will always be committed to the application and promotion of GY series products in the market with the spirit of pursuing professionalism, excellence and perseverance, and seek cooperation with suppliers, agents and users with professional technical support and good business collaboration, common development and progress.
