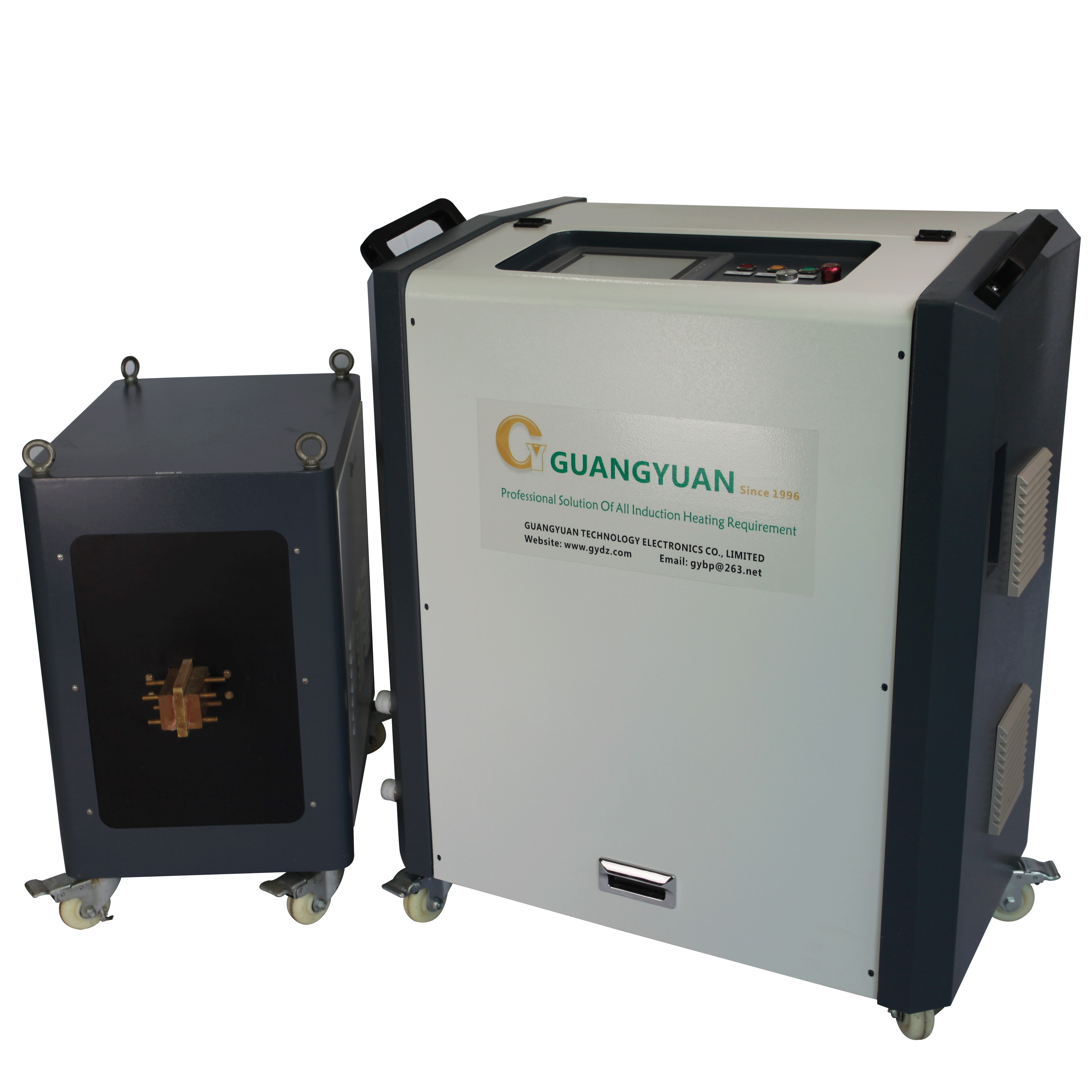

Touch Screen High Frequency Induction Heater With CE FCC Certification

Touch Screen High Frequency Induction Heater With CE FCC Certification
Features Gallery Product Description Request A Quote
Product Name: High Frequency Induction Heater
Work Principle: Electromagnetic Induction Heating
Frequency: 30-80KHZ
Heating Material: All Metals
Application: Hardening, Quenching, Annealing, Shrink Fit, Melting
Warranty: 1 Year
Feature: Touch Screen, Safe, Easy Operation
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

Touch Screen High Frequency Induction Heater


FCC High Frequency Induction Heater

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS SGS
Model Number: GYD-40AB
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

Wide Application Fields High Frequency Induction Heating Machine Easy To Install



High frequency induction furnace, also can be called high frequency induction heating machine, high frequency induction heating device, high frequency heating power supply, high frequency welding machine, high frequency induction heater, etc. It is mainly used for induction heating of metal materials, and non-contact can be heated to metal very fast. It has the advantages of energy saving, environmental protection, power saving, small size, convenient installation and operation, fast heating speed, safety, and high efficiency.

technical parameters


Model GYD-40AB (Three phase)
Work power 340v-430v
Maximum input current 60A
Output power 40KW
Fluctuating frequency 30-80KHZ
The flow rate of cooling water 0.15-0.3Mpa 7.6L/Min
Water temperature protection point 40C
Product size main :940x580x1020 mm
transformer  :671x400x560 mm
Net weight main  : 115 kg
transformer  : 50 kg



Induction Heater Power Require Depends on following factors :
» Mass of work piece » Material properties of work piece
» Temperature increase you require » Heating time require
» Effectiveness of coil design » Comprehensive full load design
» Any heat loss during heating process


induction heating machine


Touch Screen High Frequency Induction Heater With CE FCC Certification 3


High frequency induction hardening machines are mainly used for heating the metal workpiece, to let the metal material hardness changed to reach the hardening purpose.

The detailed application fields are as following:

  • All kinds of hardware tools, hand tools quenching hardening, like pliers quenching, spanner quenching, hammerhead quenching, ax quenching, screwdriver quenching, scissors quenching, etc
  • All kinds of automobile and motorcycle parts quenching, like crankshaft, connecting rod, piston pin, sprocket, aluminum wheel valve, rocker shaft, drive axle, small shaft, fork hardening, etc.
  • All kinds of power tools, such as gear, shaft quenching.
  • Machine tool industry, such as the machine bed surface, machine guide, etc
  • All kinds of hardware metal parts, machining parts, such as gear, sprocket, CAM, clamping fixture quenching.
  • Hardware mold industry, such as small mold, mold accessories, inside hole quenching.


Touch Screen High Frequency Induction Heater With CE FCC Certification 4


  • IGBT modules, save energy than traditional high frequency tube heater.
  • Protect full. Over current.over voltage,lack of phase,water shortage, etc. more than ten alarm lamps.
  • Heating fast. Within 1 second, temperature rise up to 1200 degree,even higher.
  • No need contacting work pieces, safety, safe and reliable.
  • Environmental friendly,no pollution, no harmful substances, good for worker's health
  • Easy to change induction coils, for heating different shape of steel billet
  • Easy to install and operate.
  • Low maintenance cost
  • Automatic operation at relatively stable temperature: even if the production personnel are not skilled enough, it can ensure the normal operation of the equipment



  • For brazing job: The larger the welding volume is, the lower the frequency should be.
  • For forging: Choose the right power according to the production efficiency, the higher the power, the faster the speed. Specific technical proposal consult company technical personnel.
  • For heat treatment: In combination with the shape of the workpiece, quenching mode, quenching hardness, quenching layer requirements, and materials, the specific technical personnel can be consulted.
  • For melting: It depends on the furnace and production efficiency.


induction heating machine, induction heating equipment

GY had developed 27 years of research and is committed to providing customers with all kinds of medium frequency, high frequency, super audio frequency,ultrahigh frequency induction heating equipment, and automation equipment. We provide solutions for project planning, development, design, manufacturing and comprehensive after-sales service according to your needs. One-stop solutions for customer heat treatment needs.The latest DSP+FPGA all-digital control system products provide more professional, more accurate solutions and personalized high-quality products for many users on the road of innovation, transformation and transformation breakthroughs.


From 1996, devoted
For more than 20 years, GY has always been adhering to the company philosophy of innovation, adherence to quality and excellent operation. A single R&D office researches a single product. After more than 20 years of hard work, it has developed steadily. The current equipment users cover many industries such as manufacturing, electric power and nuclear power,government science reform, university scientific research, and special military industry. In view of the different voltage levels in some countries, the company has developed special input voltage induction heating equipment for different frequency parameters. For example, the input voltage suitable for use i n the United States, Japan and other countries is single-phase 110V, three-phase 110V, three-phase 220V, and three-phase 480V. Heating equipment and heating equipment with input voltage of three-phase 415V and three-phase 440V suitable for use in Southeast Asian countries such as Malaysia, Australia and Thailand Inheritance builds trust.


Inherit and build trust
Made in China is facing global competition and challenges. To find a suitable position in the international and domestic markets and open up a larger market, we must use more advanced technology and good after-sales service to improve ourselves. We will always be committed to the application and promotion of GY series products in the market with the spirit of pursuing professionalism, excellence and perseverance, and seek cooperation with suppliers, agents and users with professional technical support and good business collaboration, common development and progress.
