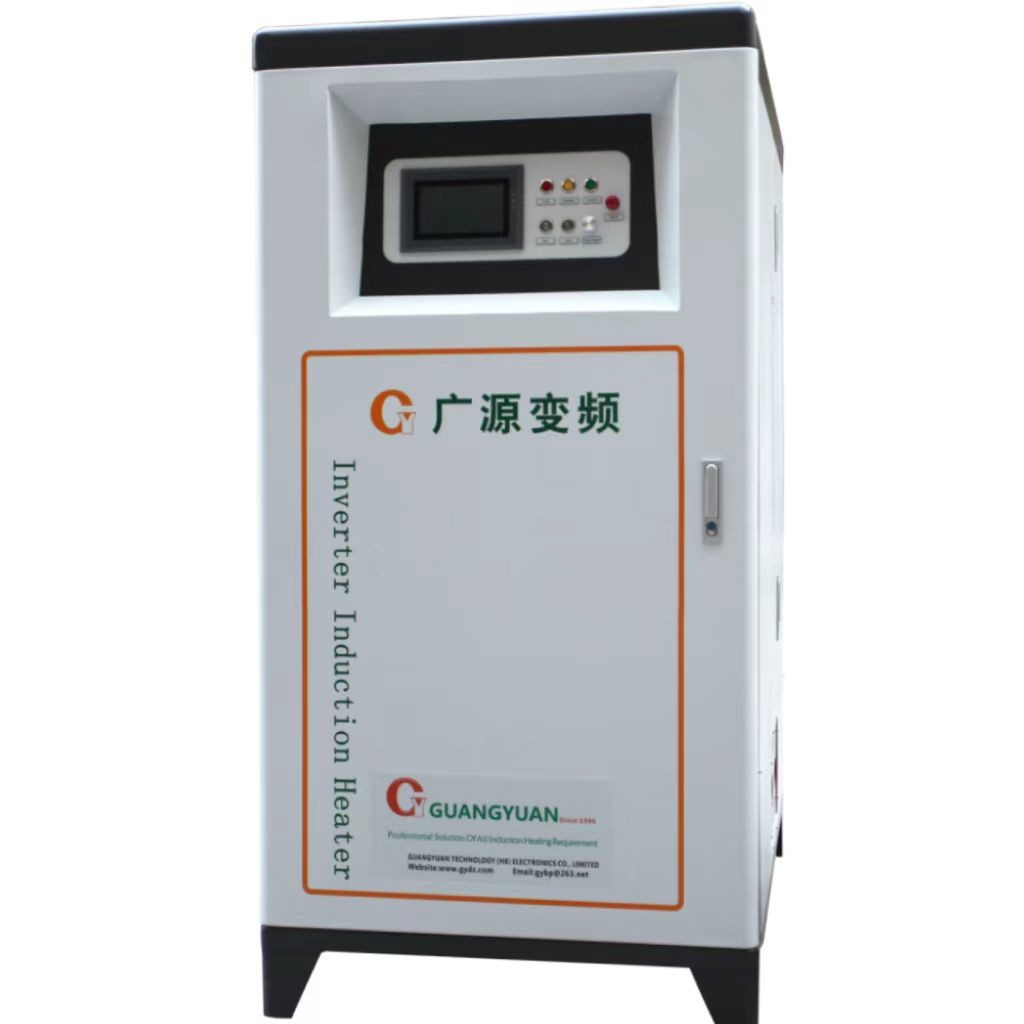

Temperature Control Industrial Induction Heating Equipment 380V 3 Phase

Temperature Control Industrial Induction Heating Equipment 380V 3 Phase
Features Gallery Product Description Request A Quote
Product Name: Industiral Induction Heating Equipment
Voltage: 380V, 3phase
Duty Cylce: 24 Hours Non Stop
Warranty: 12 Months
Usage: Shrink Fitting, Hardening, Forging, Quenching, Annealing, Melting
Feature: Environmentally Friendly, Efficient, Safe, Energy Saving, No Pollution
Package: Wooden Case
After-sale Service: Door To Door Service, Online Technical Support
High Light:

Industrial Induction Heating Equipment Temperature Control


Industrial Induction Heating Equipment 3Phase


380V induction heater with temperature control

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, ROHS, FCC
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: based on orders
Payment Terms: 100% T/T before shipment
Supply Ability: 500 set per month
Product Description

Temperature Control Industrial Induction Heating Equipment For Oil & Gas Industry


Temperature Control Industrial Induction Heating Equipment 380V 3 Phase 0


Frequency conversion electromagnetic induction heating or induction heating for short is a method for heating metal materials by converting power frequency power supply into that of specific range based on the principle of electromagnetic induction. It is mainly applicable to the metal hot working, heat treatment, welding and melting.


Basic components of induction heating system include induction coil, AC power source and work pieces. Induction coil can be fabricated into different shapes as per different heated objects. The coil is connected with the power source providing alternating current for coil. The alternating current possessed by the coil can create a alternating magnetic field passing through the work pieces to produce eddy flow as required by heating.


Temperature Control Industrial Induction Heating Equipment 380V 3 Phase 1


In a basic induction heating setup shown in Right Figure, a solid state RF power supply sends an AC current through an inductor (often a copper coil),and the part to be heated (the workpiece) is placed inside the inductor. The inductor serves as the transformer primary and the part to be heated becomes a short circuit secondary. When a metal part is placed within the inductor and enters the magnetic field, circulating eddy currents are induced within the part.



As shown in follwoing Figure , these eddy currents flow against the electrical resistivity of the metal, generating precise and localized heat without any direct contact between the part and the inductor. This heating occurs with both magnetic and non-magnetic parts, and is often referred to as the "Joule effect", referring to Joule's first law – a scientific formula expressing the relationship between heat produced by electrical current passed through a conductor.

Temperature Control Industrial Induction Heating Equipment 380V 3 Phase 2



Secondarily, additional heat is produced within magnetic parts through hysteresis – internal friction that is created when magnetic parts pass through the inductor. Magnetic materials naturally offer electrical resistance to the rapidly changing magnetic fields within the inductor. This resistance produces internal friction which in turn produces heat.



In the process of heating the material, there is therefore no contact between the inductor and the part, and neither are there any combustion gases. The material to be heated can be located in a setting isolated from the power supply; submerged in a liquid, covered by isolated substances, in gaseous atmospheres or even in a vacuum.


Temperature Control Industrial Induction Heating Equipment 380V 3 Phase 3



Induction Heater Power Require depends on following factors :



Mass of work piece


» Material properties of work piece

Temperature increase you require


» Heating time require

Effectiveness of coil design


» Comprehensive full load design

Any heat loss during heating process



Temperature Control Industrial Induction Heating Equipment 380V 3 Phase 4


Model GYMD-750KW
Work power 340V-430V
Max input current 1125A
Max output power 750KW
Fluctuating frequency 1-5KHZ
The flow rate of cooling water 0.15-0.3Mpa 25L/Min
Water temperature protection point 40C
Product size 1750x1650x1800 mm
Net weight 820 kg


Temperature Control Industrial Induction Heating Equipment 380V 3 Phase 5


induction heating machine



Temperature Control Industrial Induction Heating Equipment 380V 3 Phase 7


Oil and natural gas suppliers rely on induction heating equipment for many different production processes:

  • Pipe end stress relief


  • Soldering of rock drilling tools


  • Coupling coating


  • Forming pipe ends for bottles and cylinders


  • Heating the ends of sucker rods


  • Seam annealing


  • Preheat for pipe forming


  • Pipe straightening

big graphite tube heating

Temperature Control Industrial Induction Heating Equipment 380V 3 Phase 9


Innovative induction heating technology offers many advantages for the oil and gas industry:

  • Energy saving: it has such features as uniform heating (it is applicable to adjust the spacing of the induction coil to ensure the appropriate temperature as required by each part of work piece), fast warming and limited oxic horizon, and can guard against any waste after annealing.


  • Reduced processing time: it can be started to perform heating operation on condition that water and power supply is available. the minimum rate of heating is less than 1 second (rate of heating is available for adjustment and control)


  • Temperature control:it is applicable to control the temperature for heating work pieces as per the preset heating time, and thereby control the heating temperature at a certain technical point.


  • Control and localized heating


  • Possibility of integration into assembly lines


  • No physical contact: With induction, the part to be heated never comes into direct contact with a flame or other heating element; the heat is induced within the part itself by alternating electrical current.


  • Improved working environment : Induction heating systems do not burn traditional fossil fuels; induction is a clean, non-polluting process which will help protect the environment. An induction system improves working conditions for your employees by eliminating smoke, waste heat, noxious emissions and loud noise. Heating is safe and efficient with no open flame to endanger the operator or obscure the process. Non-conductive materials are not affected and can be located in close proximity to the heating zone without damage.


Temperature Control Industrial Induction Heating Equipment 380V 3 Phase 10



Welcome to GY

  • GY had developed many years of research and is committed to providing customers with all kinds of medium frequency, high frequency, super audio frequency,ultrahigh frequency induction heating equipment, and automation equipment. We provide solutions for project planning, development, design, manufacturing and comprehensive after-sales service according to your needs. One-stop solutions for customer heat treatmen tneeds.The latest DSP+FPGA all-digital control system products provide more professional, more accurate solutions and personalized high-quality products for many users on the road of innovation, transformation and transformation break throughs.

From 1996, devoted

  • For more than 20 years,GY has always been adhering to the company philosophy of innovation, adherence to quality and excellent operation. A single R&D office researches a single product. After more than 20 years of hard work, it has developed steadily. The current equipment users cover many industries such as manufacturing, electric power and nuclear power,government science reform, university scientific research, and special military industry. In view of the different voltage levels in some countries, the company has developed special input voltage induction heating equipment for different frequency parameters. For example, the input voltage suitable for use i n the United States, Japan and other countries is single-phase 110V, three-phase 110V, three-phase 220V, and three-phase 480V. Heating equipment and heating equipment with input voltage of three-phase 415V and three-phase 440V suitable for use in Southeast Asian countries such as Malaysia, Australia and Thailand Inheritance builds trust.

Inherit and build trust

  • Made in China is facing global competition and challenges. To find a suitable position in the international and domestic markets and open up a larger market, we must use more advanced technology and good after-sales service to improve ourselves. We will always be committed to the application and promotion of GY series products inthe market with the spirit of pursuing professionalism, excellence and perseverance, and seek cooperation with suppliers, agents and users with professional technical support and good business collaboration. Common development and progress.
