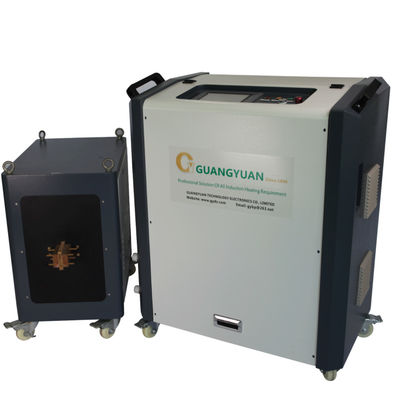

Fast Start-up Industrial Induction Heating Machine 380V 3phase For Steel Industry
What is induction heating?
Induction heating is the process of heating an electrically conducting object (usually a metal) by electromagnetic induction, through heat generated in the object by eddy currents. An induction heater consists of induction power supply (induction heater) and inductor (coil) that is a shaped to contour the part, and a work station where the part is held and presented to the coil.
How does induction heating work?
Induction heating occurs when an electromagnetic force field produces an electrical current in a metal part. The surface of the part heats due to the resistance to the flow of this electric current.
What is an inductor?
It is a copper loop that when energized and placed in close proximity to the work piece that causes it to heat. Induction coils are made from copper tubing and have water circulating through them to keep them cool.
|
Induction Heater Power Require depends on following factors :
|
|||
| » |
Mass of work piece
|
» | Material properties of work piece |
| » |
Temperature increase you require
|
» | Heating time require |
| » |
Effectiveness of coil design
|
» | Comprehensive full load design |
| » |
Any heat loss during heating process
|
||
The parameters of the Fast Heating Industrial Induction Heating Machine:
| Model | GYH-100AB (Three phase) |
| Work power | 340v-430v |
| Maximum input current | 150A |
| Output power | 100kw |
| Fluctuating frequency | 50-150KHZ |
| The flow rate of cooling water | 0.2Mpa, 6L/min |
| Water temperature protection point | 50C |
| Product size | main :760X400X880mm |
| transformer :510X300X450mm | |
| Net weight | main : 94kg |
| transformer : 27kg |
Delivery Time: within 7 workdays.
Shipping Term:By sea,By air,by express.
Induction heating Application:
1. Forging
Bar,flat plate,bar end heating,pipe ends,bar end heating
2. Pre-heating
Pipe,steel wire,stainless steel wire)
3. Brazing
Saw blades,carbide tools,cooper tube,aluminum part,drilling tools,Pan
4. Annealing
Steel pipe,golf ball head,brass lock,aluminum pan
5. Hardening
Gear,shaft,pipe,bearing,pump fitting,steel plate,roller
6. Shrink fitting
Motor,pipe
7. Melting
Iron,steel,brass,aluminum,silver,zinc
The advantages of induction heating:
• Fast Heating:
Development of heat within the work piece by induction provides much higher heating rates than the convection and radiation processes that occur in furnaces.
• Fast Start-up:
Furnaces contain large amounts of refractory materials that must be heated during start-up, resulting in large thermal inertia. The internal heating of the induction heating process eliminates this problem and allows much quicker start-up.
• Energy Savings:
When not in use, the induction heating power supply can be turned off because restarting is so quick. With furnaces, energy must be supplied continuously to maintain temperature during delays in processing and to avoid long start-ups.
• High Production Rates:
Because heat treating times are short, induction heating often allows increased production and reduced labor costs.
Q: Why choose GuangYuan Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,price,service,delivery time,we all have large advantage.
Q:How to choose suiteble machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,pass me workpiece material & size,Temperature requirement and heating time requirement.Then we will recommend fit machine for you reference.
Q:How about the machine delivery time?
A: Small machine delivery time is 3~7 workdays.Big machine delivery time 15~25 workdays. Normally based on orders.
Q:How about the machine warranty?
A:Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free.
