Super Audio Frequency Industrial Induction Heating Machine With Touch Screen 40KW

Super Audio Frequency Industrial Induction Heating Machine With Touch Screen 40KW
Features Gallery Product Description Request A Quote
Product Name: Induction Hardening Equipment
Heating Principle: Magnetic Induction Heating
Cooling System: Air Cooling
Work Power: 380V 3phase
Application: Gear Hardening
Warranty: 12 Months, All Life Technology Support
Feature: Touch Screen, Safe, Easy Operation
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

Super Audio Industrial Induction Heating Machine


40KW Industrial Induction Heating Machine


Touch Screen induction heater machine

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS SGS
Model Number: GYS-40AB
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

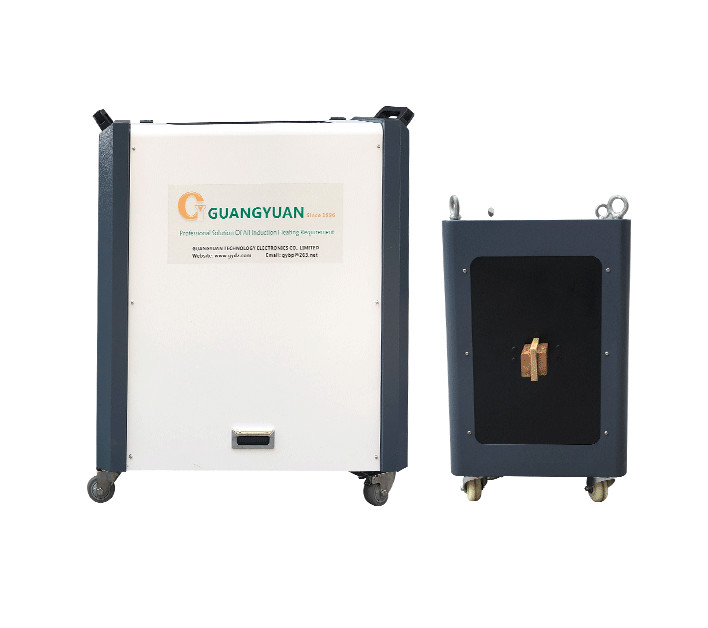

40KW Touch Screen Super Audio Frequency Industrial Induction Heating Machine


Super Audio Frequency Industrial Induction Heating Machine With Touch Screen 40KW 0


GY Induction provides induction heating solution in a wide range of application, including forging and forming, hardening, annealing, tempering, brazing and welding, shrink- fitting, melting, bending in the automotive industries, oil and gas, metal and foundry, as well as numerous other industries.




The power required to heat your work piece depends on:

  • The mass of your work piece
  • The material properties of your work piece
  • The temperature increase you require
  • The heating time required to meet your process needs
  • The effectiveness of the field owing to the coil design
  • Any heat losses during the heating process

After we determine the power needed to heat your work piece we can select the correct induction heating equipment taking the coil coupling efficiency into consideration.


technical parameters


Model GYS-40AB (Three phase)
Work power 340v-430v
Maximum input current 65A
Output power 40kw
Fluctuating frequency 20-50khz
Output current 400-1800A
The flow rate of cooling water 0.08-0.16Mpa 9L/Min
Water temperature protection point 50C
Product size main :780x370x620 mm
transformer : 510x260x410 mm
Net weight main : 54 kg
transformer : 32.5 kg


induction heating machine

induction heating machine, induction heating equipmentinduction heating machine, induction heating equipment




Super Audio Frequency Industrial Induction Heating Machine With Touch Screen 40KW 5



It is because of the more precise control and more repeatable results over traditional heating methods that manufacturers are going to induction heating. When they make the switch, the following are the benefits that are realized:

  • Increased energy efficiency: Induction heating is often far more efficient than other traditional methods.
  • Increased precision: Very precise control is maintained over how much energy and where it put into the part.
  • Increased process control: Very repeatable heating can be achieved on parts because of the precise energy input control that induction heating provides.
  • Increased speed: Part can be heated to joining temperatures in a few seconds to several minutes compared to hours in an oven or furnace.
  • Conversion from batch to lean manufacturing: Induction heating lends itself to JIT (just in time) and single-piece flow processing. Because of its speed and the fact that there is no furnace or refractory heat up and cool downtime associated with induction heat treating, single parts can be processed as needed.
  • Safety: No open flames and the fire hazard associated with the use of torches or gas-fired ovens and furnaces.

induction heating machine application


  • Induction heating and forging standard parts.


  • All kinds of metal materials induction smelting.


  • Motor rotor heating assembly.


  • Tube ends heating and expanding.


  • Mould induction forging.


  • Shaft medium frequency induction hardening.


  • Weld preheating or post-weld tempering.

induction heating


induction heating machine, induction heating equipment


The GY company is the leader today in production of induction equipment both in the domestic and foreign markets. If you want to buy the equipment for metal hardening at a reasonable price, it is best to purchase products directly from the manufacturer, without overpaying to intermediaries.

In order to purchase the unit for metal hardening, the price for which will be reasonable, please contact the GY directly, and soon you will receive reliable and high-tech equipment.

The company also sells induction hardening units of various capacities that are manufactured in accordance with high quality standards.

The specialists of the company are always aware of the market trends, and consider the needs and desires of the client as much as possible. We will be able to create any of the most complex equipment in accordance with requirements of the customer, with the shortest possible time. The products of our company are consistently high quality, reliability and durability.

We also provide quality warranty service, and post-warranty service on mutually beneficial terms.
