120KW 10KHZ Induction Heater Machine Energy Saving Multifunctional

120KW 10KHZ Induction Heater Machine Energy Saving Multifunctional
Features Gallery Product Description Request A Quote
Product Name: Industiral Induction Heating Equipment
Voltage: 380V, 3phase
Duty Cylce: 24 Hours Non Stop
Warranty: 12 Months
Usage: Shrink Fitting, Hardening, Forging, Quenching, Annealing, Melting
Feature: Environmentally Friendly, Efficient, Safe, Energy Saving, No Pollution
Package: Wooden Case
After-sale Service: Door To Door Service, Online Technical Support
High Light:

10KHZ Induction Heater Machine


120KW Induction Heater Machine


Multifunctional Induction Heater Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, ROHS, FCC
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: based on orders
Payment Terms: 100% T/T before shipment
Supply Ability: 500 set per month
Product Description

Reduced Energy Consuption Industrial Induction Heating Equipment 120KW 1-10KHZ

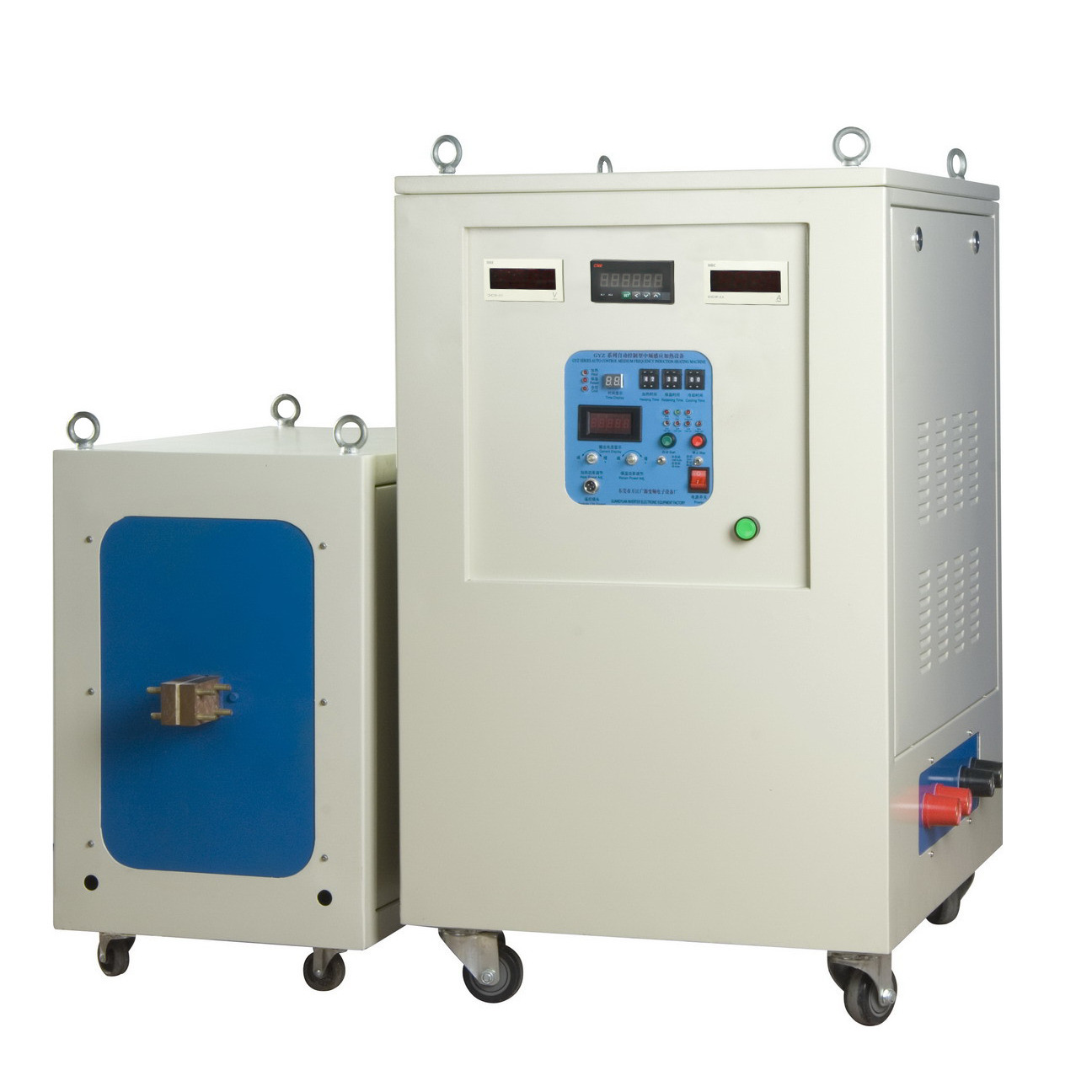

120KW 10KHZ Induction Heater Machine Energy Saving Multifunctional 0


Induction heating is a quick, flame-free, non-contact method for heating metals. It only works with electrically conductive substances, but it’s one of the fastest ways to heat an item to the core. Induction heating is so efficient and precise because it utilizes electromagnetism. In an industrial setting, a technician will use an induction heating device to create an electrical current in the metal object, which generates heat at a molecular level. This heat builds until the metal is hot and pliable enough for machining.


120KW 10KHZ Induction Heater Machine Energy Saving Multifunctional 1




Induction Heater Power Require depends on following factors :



Mass of work piece


» Material properties of work piece

Temperature increase you require


» Heating time require

Effectiveness of coil design


» Comprehensive full load design

Any heat loss during heating process



120KW 10KHZ Induction Heater Machine Energy Saving Multifunctional 2


Model GYM-120AB (Three phase)
work power 340V-430V
Maximum input current 180A
Output power 120KW
fluctuating frequency 1-10khz
output current 400-4500A
the flow rate of cooling water 0.08-0.16Mpa 12L/Min
water temperature protection point 50C
product size main : 875x695x1050 mm
transformer : 850x420x750 mm
net weight main : 115kg
transformer : 80kg

120KW 10KHZ Induction Heater Machine Energy Saving Multifunctional 3

induction heating machine




120KW 10KHZ Induction Heater Machine Energy Saving Multifunctional 5



You can find induction machinery in many sectors, from the metallurgy to semiconductor industries. The most common applications include hardening, melting, and forging of metal workpieces for further manipulation. Induction heating is also helpful for welding and straightening items that need certain modifications.

Industrial facilities utilize induction heating for many machining processes because it’s energy efficient and cuts down on costs for electricity and materials. It is also quite safe, considering it doesn't use open flames, and the parts of the machine and workpiece not subjected to the coil stay cold.

induction quenching

120KW 10KHZ Induction Heater Machine Energy Saving Multifunctional 7



Optimized Consistency


  • Induction heating eliminates the inconsistencies and quality issues associated with open flame, torch heating and other methods. Once the system is properly calibrated and set up, there is no guess work or variation; the heating pattern is repeatable and consistent. With modern solid state systems, precise temperature control provides uniform results; power can be instantly turned on or shut off. With closed loop temperature control, advanced induction heating systems have the capability to measure the temperature of each individual part. Specific ramp up, hold and ramp down rates can be established & data can be recorded for each part that is run.

Maximized Productivity

  • Production rates can be maximized because induction works so quickly; heat is developed directly and instantly (>2000º F. in < 1 second) inside the part. Startup is virtually instantaneous; no warm up or cool down cycle is required. The induction heating process can be completed on the manufacturing floor, next to the cold or hot forming machine, instead of sending batches of parts to a remote furnace area or subcontractor. For example, a brazing or soldering process which previously required a time-consuming, off-line batch heating approach can now be replaced with a continuous, one-piece flow manufacturing system.

Improved Product Quality

  • With induction, the part to be heated never comes into direct contact with a flame or other heating element; the heat is induced within the part itself by alternating electrical current. As a result, product warpage, distortion and reject rates are minimized. The vacuum brazing process is often utilized when maximum product quality is essential; the part can be isolated in an enclosed chamber with a vacuum, inert or reducing atmosphere to eliminate the effects of oxidation.

Extended Fixture Life

  • Induction heating rapidly delivers site-specific heat to very small areas of your part, without heating any surrounding parts. This extends the life of the fixturing and mechanical setup.

Environmentally Sound

  • Induction heating systems do not burn traditional fossil fuels; induction is a clean, non-polluting process which will help protect the environment. An induction system improves working conditions for your employees by eliminating smoke, waste heat, noxious emissions and loud noise. Heating is safe and efficient with no open flame to endanger the operator or obscure the process. Non-conductive materials are not affected and can be located in close proximity to the heating zone without damage.

Reduced Energy Consumption

  • Tired of increasing utility bills? This uniquely energy-efficient process converts up to 90% of the energy expended energy into useful heat; batch furnaces are generally only 45% energy-efficient. And since induction requires no warm-up or cool-down cycle, stand-by heat losses are reduced to a bare minimum. The repeatability and consistency of the induction process make it highly compatible with energy-efficient automated systems.


120KW 10KHZ Induction Heater Machine Energy Saving Multifunctional 8


Pre-sale service.

  • Inquiry and consulting service
  • Recommend the most suitable for our customers according to their requirements
  • Sample testing support
  • Working videos available
  • View our factory

In-sale service.

  •  Strictly manufacture the machine, according to relevant technical standards.
  •  Take run test, according to relevant equipment test run regulations.
  •  Strictly check up the machine, before delivery
  •  Delivery on time.

After-sale service.

  • Warranty time: 1year Warranty.
  •  Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
  •  If any big quality problems occurs out of the guarantee period, we will send maintenance
  • Technician to provide visiting service after checking with the customer and charge for a favorable price.
  • We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
  • The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
