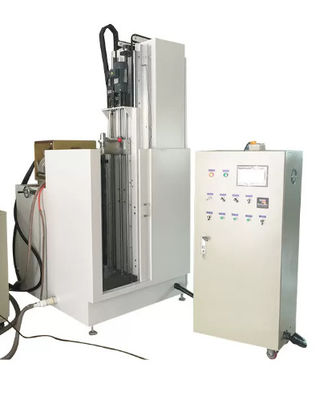

Steel Bar Heating Induction Hardening Machine For Surface Quenching

1 set
Steel Bar Heating Induction Hardening Machine For Surface Quenching
Features Gallery Product Description Request A Quote
Features: Energy Saving, Safer, More Efficient, Environmentally,
Product Name: Induction Hardening Machine
Heating Materials: Steel Bar
Warranty: 12months
Technology Support: All Life
After-sales Service Provided: Engineer On-site Service, Online Support, Video Technical Support
Work Time: 24 Hours A Day
Application: Induction Quenching, Induction Hardening
High Light:

Steel Bar Induction Hardening Machine


Quenching Induction Hardening Machine


Heating induction quenching machine

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, SGS, ROHS
Payment & Shipping Terms
Packaging Details: wooden boxes
Delivery Time: 5-8 workdays after payment
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

Steel Bar Heating Induction Hardening Machine For Surface Quenching


Steel Bar Heating Induction Hardening Machine For Surface Quenching 0


Induction hardening is a type of heat treatment in which metal parts are heated by electromagnetic induction and then quenched. It is also a type of case hardening and can be used for many steel and steel alloys to improve mechanical properties such as surface hardness and fatigue strength and resistance.Typical applications of induction hardening is the hardening of steel and cast iron. Especially parts, such as drive shafts, engine components and gears undergo the process.


Basically, four different processes for the hardening of stainless steel can be taken into consideration:

  • Thermal processes: defined heating up, holding and quenching leads to the formation of martensite in case of curable martensitic or precipitation-hadenable stainless steels. In this method, no further elements are added to the steel. In practice, these processes are known for instance from the hardening of knife blades.
  • Thermochemical diffusion processes: By diffusing elements such as nitrogen, chromium, carbon and boron into the surface of a material, intermetallic compounds and new phases are formed in the peripheral area. The compounds and phases formed are subject to compressive stress and lead to the desired hardening effect.
  • Coatings: When coating, a wear protection layer is applied to the steel. These include for example: chrome-plating, nickel-plating, thermal spraying and PVD coatings.

Work hardening: increase in hardness by means of massive deformation of the basic structure, which can be caused by means of punching processes and shot peening, for instance.


Steel Bar Heating Induction Hardening Machine For Surface Quenching 1

Quick Detail:

Name Spray cooling Quenching Machine Induction Hardening Machine For Tempering Gear Application Quenching
Net weight 900kg Cooling method immersion, hydrojet
Dimension 1100*900*2000 Certificate CE,SGS


Technical Parameters:

  • The maximum diameter of quenching material: 300mm
  • The maximum weight of the work piece: 50kg
  • Work piece operating speed:1-30mm/s
  • Work piece descent speed: 120mm/s
  • Speed of main shaft:1-200r/min
  • Motor power of main drive: 1.5kw
  • Cooling method: immersion, hydrojet
  • Machine Weight: 900kg
  • Dimension: 1100*900*2000
  • Transmission mode: mechanical rotation

Steel Bar Heating Induction Hardening Machine For Surface Quenching 2


  • Precise control over temperature and hardening depth

  • Controlled and localized heating

  • Easily integrated into production lines

  • Fast and repeatable process

  • Each workpiece can be hardened by precise optimized parameters

  • Energy-efficient process

Steel Bar Heating Induction Hardening Machine For Surface Quenching 3


  • Austentic steel

  • PH steels

  • Martensities/ Ferrites

  • Nickel-based Alloys

  • Duplex Steels

  • Cobalt- chromium Alloys

shaft hardening



Steel Bar Heating Induction Hardening Machine For Surface Quenching 5


Our services

Pre-sale service.

  • Inquiry and consulting service
  • recommend the most suitable for our customers according to their requirements
  • Sample testing support
  • working videos available
  • View our factory

In-sale service.

  • Strictly manufacture the machine, according to relevant technical standards.
  • Take run test, according to relevant equipment test run regulations.
  • Strictly check up the machine, before delivery
  • Delivery on time.

After-sale service.

  • Warranty time: 1year Warranty.
  • Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
  • If any big quality problems occurs out of the guarantee period, we will send maintenance
  • technician to provide visiting service after checking with the customer and charge for a favorable price.
  • We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
  • The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
