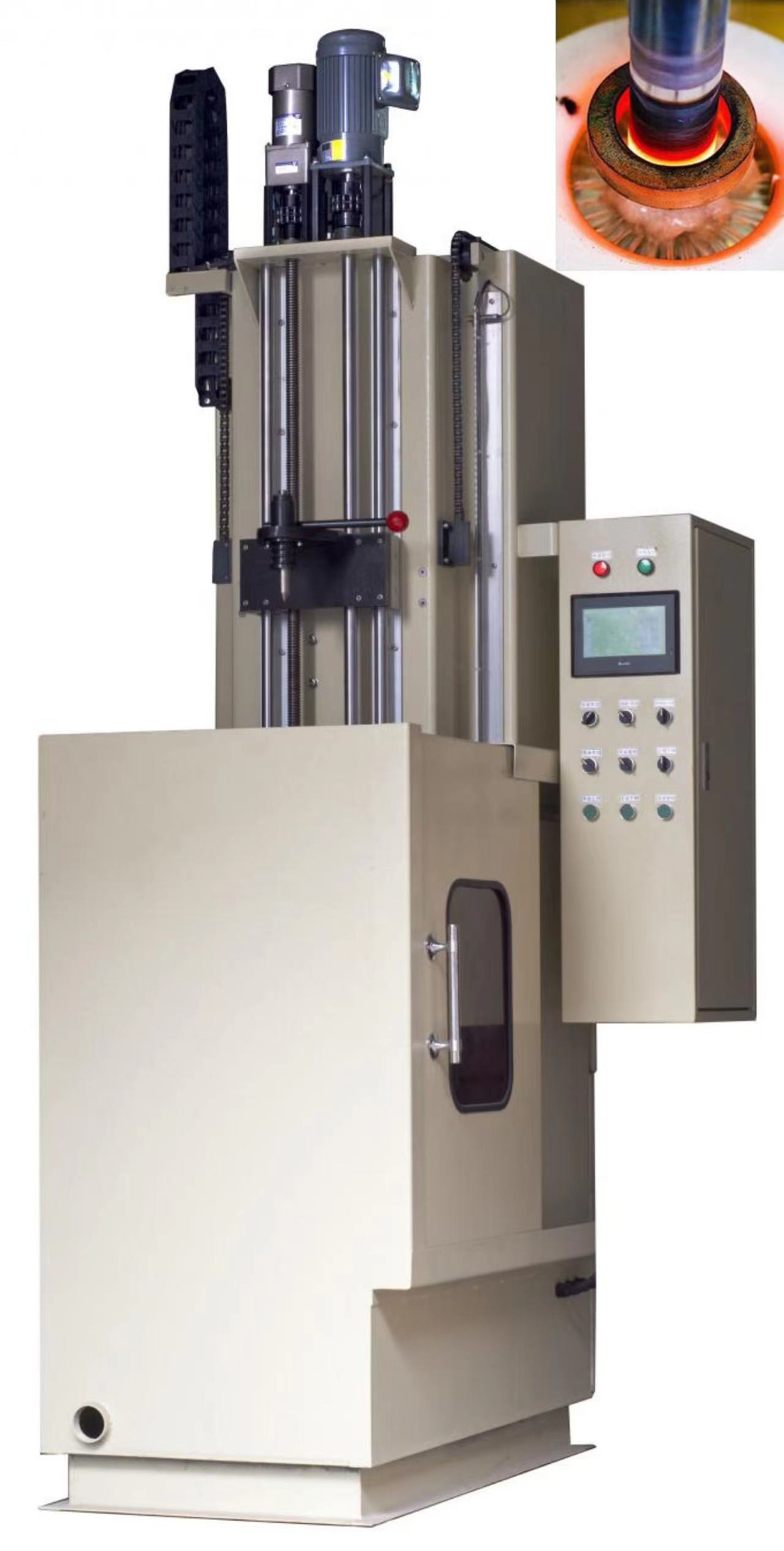

Immersion Cooling High Frequency Induction Hardening / Quenching Machine
Induction hardening machine are used for hardening of various metals, in order to give the material a higher strength and wear resistance. Induction hardening machine are designed for surface hardening of external and internal surfaces of engineering and automotive components such as shaft, gear, cog wheel, etc.
The equipment for metal hardening is characterized by high performance characteristics, and is manufactured in strict compliance with all technical standards and international standards. Main advantages:
A competent arrangement of the heating elements ensures uniform heating. There are variants with a wide range of upper temperatures. This ensures the correctness of hardening processes, and as a result - the high quality of the processed metals. For ease of management, many processes are automated.
QUICK DETAILS:
| Name | Spray cooling Quenching Machine Induction Hardening Machine For Tempering Gear | Application | Quenching and Tempering |
| Net weight | 900kg | Cooling method | immersion, hydrojet |
| Dimension | 1100*900*2000 | Certificate | CE,SGS |
TECHNICAL PARAMETERS:
The maximum diameter of quenching material: 300mm
The maximum weight of the work piece: 50kg
Work piece operating speed:1-30mm/s
Work piece descent speed: 120mm/s
Speed of main shaft:1-200r/min
Motor power of main drive: 1.5kw
Cooling method: immersion, hydrojet
Machine Weight: 900kg
Dimension: 1100*900*2000
Transmission mode: mechanical rotation
ADVANTAGES OF INDUCTION QUENCHING AND TEMPERING:
Induction technology is most often used in Quenching and Tempering procedures where it provides the most distinct advantages. This procedure requires extreme amounts of precision in both the heating and quenching of the steel in order to achieve the desired hardness profile. Even extremely small variations in the procedure such as heating for a second too long or quenching at the wrong temperature can result in large variations from part to part. Because of this, precise control of the process becomes paramount. Induction technology offers more control than any other method of heating.
Automatic handling and fixturing of components for heating and quenching provides for high production rates and helps to produce consistent results part after part. Induction is by far the fastest method of hardening and heat treating. As a result, the process produces minimal distortion, no surface decarburization, fine grain microstructure, and precisely controlled hardness patterns. induction is the perfect solution for any facility looking to step up production to the next level.
