High Speed Induction Heating Equipment For Steel Surface Hardening

1 set
High Speed Induction Heating Equipment For Steel Surface Hardening
Features Gallery Product Description Request A Quote
Features: Energy Saving, Safer, More Efficient, Environmentally,
Product Name: Induction Hardening Machine
Power: 60KW
Warranty: 12months
Technology Support: All Life
After-sales Service Provided: Engineer On-site Service, Online Support, Video Technical Support
Work Time: 24 Hours A Day
Application: Induction Quenching, Induction Hardening
High Light:

Hardening Induction Heating Equipment


High Speed Induction Heating Equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, SGS, ROHS
Model Number: GYM-60AB
Payment & Shipping Terms
Packaging Details: wooden boxes
Delivery Time: 5-8 workdays after payment
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

High-Speed Heating Surface Hardening Induction Hardening Machine For Steel

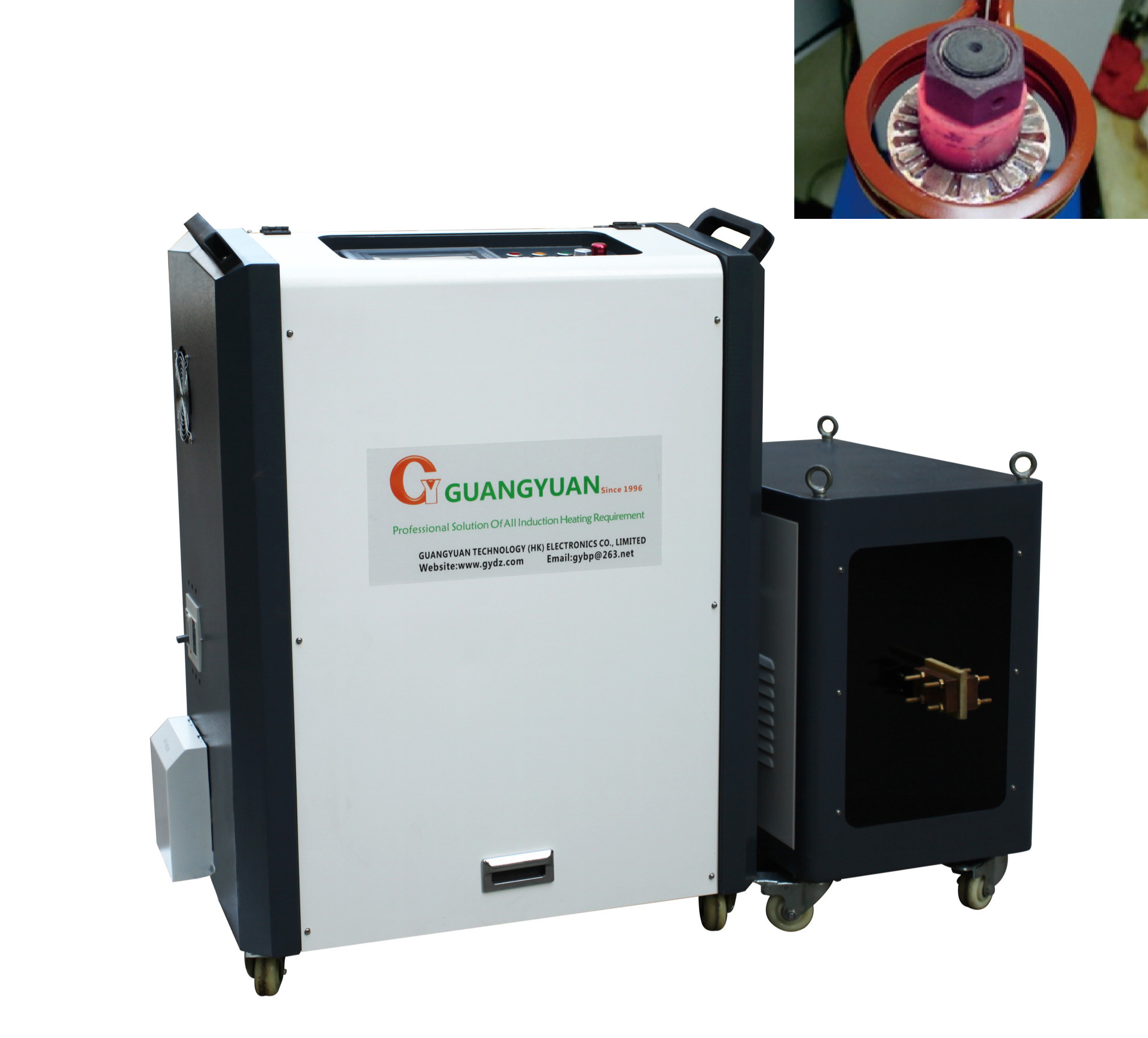

High Speed Induction Heating Equipment For Steel Surface Hardening 0

Induction Hardening Machine

Induction hardening is a contactless heating process using the principles of electromagnetic induction to generate heat within a workpiece’s surface layers. In a much shorter heating time than other methods, hardening optimizes mechanical properties, such as strength and stiffness, making it the preferred method for manufacturers with significant throughput needs. Hardening typically takes just seconds!

Hardening steel is most effective through heat-treating processes for parts used in production. You’ll have a cost-effective method for processing shafts or other parts using induction hardening. Typically, induction hardening is applied to metal parts to achieve excellent surface wear resistance while maintaining their mechanical properties. It is a process that results in very high surface hardness of the metal materials, making it perfect for manufacturing components exposed to heavy loads. After an induction hardening process is achieved, a metal part must be quenched with water, oil, or air to obtain specific properties for the surface layer. Surface hardening increases the resistance to wear and may be used to improve the strength of heavily stressed components.

High Speed Induction Heating Equipment For Steel Surface Hardening 1

The parameters of the induction hardening machine:

Model GYM-60AB (Three phase)
work power 340V-430V
Maximum input current 95A
Output power 60kw
fluctuating frequency 1-10khz
output current 400-2400A
the flow rate of cooling water 0.08-0.16Mpa 10L/Min
water temperature protection point 50C
product size main :690x640x1060 mm
transformer : 870x430x750 mm
net weight main : 95 kg
transformer : 79.5kg

High Speed Induction Heating Equipment For Steel Surface Hardening 2

Advantages of induction hardening:

Fast and Repeatable

  • Induction heating is a high-speed, precise, controlled, and repeatable process, producing metal products that are cleaner and more environmentally friendly. As a result, induction heating plays an integral part in the emerging connected industrial landscape.

Energy Saving and Environmentally

  • As induction heating is much more efficient and environmentally sound than other heating alternatives, this technology is growing in prominence. It transfers far more energy per square millimeter than a flame, induction takes much less time, heats just one defined material region, and uses much less power for the same work.

Safe and Efficient

  • The main advantages to using the induction heat procedure for this process are dramatically greater power and material efficiencies, and higher levels of safety, compared with other additive manufacturing methods.

 Easy to Operate and Automate

  • Jobs such as fittings can be done reliably, unit by unit, with no skilled operator required. It has higher heating quality and is easier to automate the production process

High Speed Induction Heating Equipment For Steel Surface Hardening 3

Applications of the induction hardening:


Single Shot Hardening

  • Single shot hardening is the most common induction hardening method,  in which the part and coil stay in one place throughout the heat-up process. Slack quenching (leaving the heat remaining in the part after the hardening process) is used routinely with larger single shots and horizontal scanners.

Auto-hardening may be used for static heating, single-shot heat treating, and, to a lesser extent, in horizontal scanners or continuous/progressive hardening applications.


Selective Induction Case Hardening

  • Selective Induction Case Hardening has the potential to enhance part performance by providing a combination of mechanical properties, giving hardness where required on wear surfaces while providing malleability at the core for impact strength.

Induction Hardening of Low-Ally Medium Carbon Steel

  • Induction Hardening of Low-Alloy Medium Carbon Steels is used extensively in critical automotive and machine applications that need a high level of wear resistance. The hardening depth is defined by carbonization depth, receptivity, and quenching. Any hardening process aims to give surface resistance to mechanical stress and give a part sufficient elasticity so it can withstand outside forces without damage.

Selective Induction Hardening

  • Selective Induction Hardening is an accelerated heating process that targets precise areas of a steel or iron alloy, making it possible to reach high-grade hardness levels in these places without affecting other regions. It’s an attractive alternative for many industries where localized hardening might be advantageous–such as the aerospace industry.

Because induction hardening is not a batch process (typically, a single piece is hardened at a time), the hardening machines  may be located within production cells, allowing for continuous process flow.


As with any process, hardening is also a function of time and temperature, and induction hardening typically uses shorter times and higher temperatures to achieve results equivalent to furnace tempered. Our engineers can offer a complimentary evaluation of your application and will consult you regarding your particular manufacturing requirements.

Induction hardening for gears


High Speed Induction Heating Equipment For Steel Surface Hardening 5

Our services

Pre-sale service.

  • Inquiry and consulting service
  • recommend the most suitable for our customers according to their requirements
  • Sample testing support
  • working videos available
  • View our factory

In-sale service.

  • Strictly manufacture the machine, according to relevant technical standards.
  • Take run test, according to relevant equipment test run regulations.
  • Strictly check up the machine, before delivery
  • Delivery on time.

After-sale service.

  • Warranty time: 1year Warranty.
  • Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
  • If any big quality problems occurs out of the guarantee period, we will send maintenance
  • technician to provide visiting service after checking with the customer and charge for a favorable price.
  • We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
  • The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
