Spray Cooling Induction Hardening Equipment For Tempering Gear

1 set
Spray Cooling Induction Hardening Equipment For Tempering Gear
Features Gallery Product Description Request A Quote
Features: Energy Saving, Safer, More Efficient, Environmentally,
Product Name: Induction Hardening Machine
Net Weight: 900kgs
Warranty: 12months
Technology Support: All Life
After-sales Service Provided: Engineer On-site Service, Online Support, Video Technical Support
Work Time: 24 Hours A Day
Application: Induction Quenching, Induction Hardening
High Light:

Spray Cooling Induction Hardening Equipment


Tempering Induction Hardening Equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, SGS, ROHS
Payment & Shipping Terms
Packaging Details: wooden boxes
Delivery Time: 5-8 workdays after payment
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

Spray Cooling Quenching Machine Induction Hardening Machine For Tempering Gear


Spray Cooling Induction Hardening Equipment For Tempering Gear 0

Induction Hardening Machine

  • Induction Hardening Machine is used for surface hardening and through hardening, via static hardening or scan hardening according to different type of workpieces such as shafts, gear, coupling, brake discs, chains, rolls, pipes, slabs, rods etc, Induction heating allows heat to apply on particular area of the part, precise hardening in particular zone ensures good hardening quality.

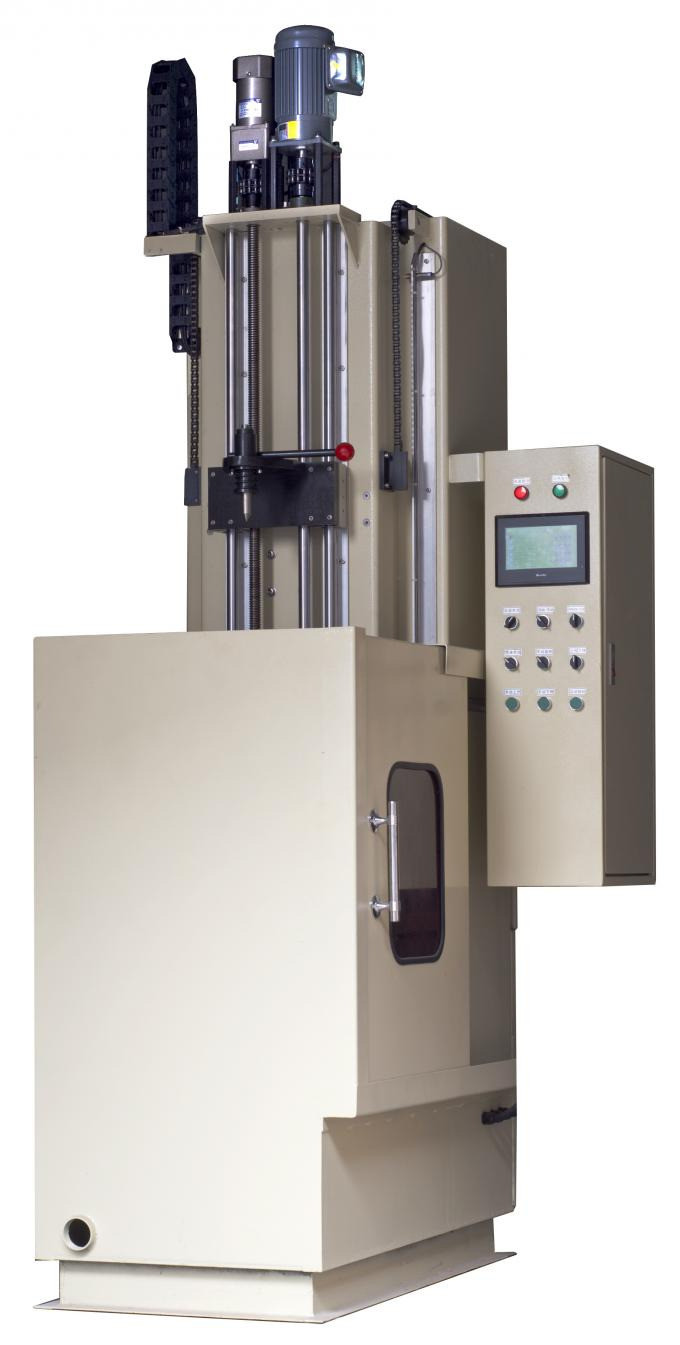

Vertical Induction Hardening Machine

  • Scanning System which consists continuous parts moving with controllable power supply, heating time, moving speed, quenching and cooling
  • CNC control regards as “all in one” solution for rotating, movement, heating ,quenching
  • Process for scan hardening, single shot, with rotation or without rotation
  • Working well in different dimensions and characterizes of workpiece, pipe, shaft and gear.
  • Process hardening parts in length up to 2m and diameter up to 800mm

Horizontal Induction Hardening Equipment

  • Customized design for heating entire parts or specific section. Slab hardening, axis and similar parts can be hardened automatically.

Spray Cooling Induction Hardening Equipment For Tempering Gear 1


Quick Detail:


Name Spray cooling Quenching Machine Induction Hardening Machine For Tempering Gear Application Quenching
Net weight 900kg Cooling method immersion, hydrojet
Dimension 1100*900*2000 Certificate CE,SGS


Technical Parameters

  • The maximum diameter of quenching material: 300mm
  • The maximum weight of the work piece: 50kg
  • Work piece operating speed:1-30mm/s
  • Work piece descent speed: 120mm/s
  • Speed of main shaft:1-200r/min
  • Motor power of main drive: 1.5kw
  • Cooling method: immersion, hydrojet
  • Machine Weight: 900kg
  • Dimension: 1100*900*2000
  • Transmission mode: mechanical rotation

Spray Cooling Induction Hardening Equipment For Tempering Gear 2


induction hardening machine








shaft hardening






Spray Cooling Induction Hardening Equipment For Tempering Gear 5


Welcome to GuangYuan•GuangZhiYuan

  • GuangYuan-GuangZhiYuan had developed many years of research and is committed to providing customers with all kinds of medium frequency, high frequency, super audio frequency,ultrahigh frequency induction heating equipment, and automation equipment. We provide solutions for project planning, development, design, manufacturing and comprehensive after-sales service according to your needs. One-stop solutions for customer heat treatmen tneeds.The lates tDSP+FPGA all-digital control system products provide more professional, more accurate solutions and personalized high-quality products for many users on the road of innovation, transformation and transformation break throughs.


From 1996, devoted

  • For more than 20 years, GuangYuan GuangZhiYuan has always been adhering to the company philosophy of innovation, adherence to quality and excellent operation. A single R&D office researches a single product. After more than 20 years of hard work, it has developed steadily. The current equipment users cover many industries such as manufacturing, electric power and nuclear power,government science reform, university scientific research, and special military industry. In view of the different voltage levels in some countries, the company has developed special input voltage induction heating equipment for different frequency parameters. For example, the input voltage suitable for use i n the United States, Japan and other countries is single-phase 110V, three-phase 110V, three-phase 220V, and three-phase 480V. Heating equipment and heating equipment with input voltage of three-phase 415V and three-phase 440V suitable for use in Southeast Asian countries such as Malaysia, Australia and Thailand Inheritance builds trust.


Inherit and build trust

  • Made in China isfacing globalcompetition andchallenges. To finda suitable position i ntheinternational and domestic markets and open up a larger market, we must use more advanced technologya n dgood after-sales service to improveourselves. We will always be committed to the application and promotion of GuangYuan-GuangZhiYuan series products inthe market with the spiritof pursuing professionalism, excellence and perseverance, and seek cooperation with suppliers, agents and users withprofessional technicalsupport and good business collaboration. Commondevelopment andprogress.
