60KW IGBT Controlled Induction Hardening Machine Equipment Multifunctional

1 set
MOQ
negotiation
Price
60KW IGBT Controlled Induction Hardening Machine Equipment Multifunctional
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Energy Saving, Safer, More Efficient, Environmentally,
Product Name: Induction Hardening Machine
Power: 60KW
Warranty: 12months
Technology Support: All Life
After-sales Service Provided: Engineer On-site Service, Online Support, Video Technical Support
Work Time: 24 Hours A Day
Application: Induction Quenching, Induction Hardening
High Light:

60KW Induction Hardening Machine

,

IGBT Induction Hardening Machine

,

Multifunctional induction hardening equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, SGS, ROHS
Model Number: GYM-60AB
Payment & Shipping Terms
Packaging Details: wooden boxes
Delivery Time: 5-8 workdays after payment
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

IGBT Controlled High-Speed Heating Induction Hardening Machine For Gears

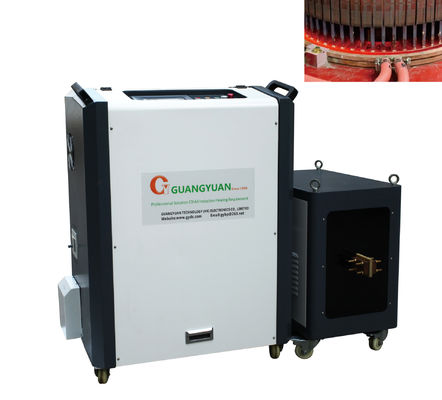

60KW IGBT Controlled Induction Hardening Machine Equipment Multifunctional 0

Induction Hardening Machine



Induction hardening is the most effective heat treatment method to improve the surface wear resistance and hardness of metal parts. It rapidly heats carbon steel parts to a set temperature by induction heating and then cools quickly. Induction hardened metal workpieces increase in hardness.

The most significant benefit of induction hardening is its controllability and repeatability. You can set the position and temperature of the heated metal workpiece. You can also precisely control the depth and time of hardening by adjusting the power, frequency, and induction coil of the hardening equipment. This ensures consistent results for metal workpieces.

GY induction hardening equipment can be integrated into your production line to automate the entire production process. Depending on the production process, you can also quench in water, oil or air. Our engineers can evaluate your application needs free of charge and provide you with a complete solution.

60KW IGBT Controlled Induction Hardening Machine Equipment Multifunctional 1

The parameters of the induction hardening machine:

Model GYM-60AB (Three phase)
work power 340V-430V
Maximum input current 95A
Output power 60kw
fluctuating frequency 1-10khz
output current 400-2400A
the flow rate of cooling water 0.08-0.16Mpa 10L/Min
water temperature protection point 50C
product size main :690x640x1060 mm
transformer : 870x430x750 mm
net weight main : 95 kg
transformer : 79.5kg


60KW IGBT Controlled Induction Hardening Machine Equipment Multifunctional 2

Advantages of induction hardening:

Fast and Repeatable

  • Induction heating is a high-speed, precise, controlled, and repeatable process, producing metal products that are cleaner and more environmentally friendly. As a result, induction heating plays an integral part in the emerging connected industrial landscape.

Energy Saving and Environmentally

  • As induction heating is much more efficient and environmentally sound than other heating alternatives, this technology is growing in prominence. It transfers far more energy per square millimeter than a flame, induction takes much less time, heats just one defined material region, and uses much less power for the same work.

Safe and Efficient

  • The main advantages to using the induction heat procedure for this process are dramatically greater power and material efficiencies, and higher levels of safety, compared with other additive manufacturing methods.

 Easy to Operate and Automate

  • Jobs such as fittings can be done reliably, unit by unit, with no skilled operator required. It has higher heating quality and is easier to automate the production process

60KW IGBT Controlled Induction Hardening Machine Equipment Multifunctional 3



GY gear induction hardening machines are capable of rapid heating and rapid cooling of gears in seconds. After induction hardening, the hardness of the gear increases and the fatigue resistance increases. The surface is also not easily oxidized or decarburized, and the deformation of the gear is minor.

Our technical team adjusts the power and frequency of the machine according to the depth, hardness, and time requirements of the gear hardening process and designs reasonable induction coils according to the diameter and thickness of the gears.

The induction hardening process is widely used in the automobile manufacturing industry. Our gear induction hardening machines can be used for hardening straight, helical, herringbone, bevel, disc gears, shafts, rack gears, etc.

Induction hardening for gears

60KW IGBT Controlled Induction Hardening Machine Equipment Multifunctional 5



Our services


Pre-sale service.

  • Inquiry and consulting service
  • recommend the most suitable for our customers according to their requirements
  • Sample testing support
  • working videos available
  • View our factory


In-sale service.

  • Strictly manufacture the machine, according to relevant technical standards.
  • Take run test, according to relevant equipment test run regulations.
  • Strictly check up the machine, before delivery
  • Delivery on time.


After-sale service.

  • Warranty time: 1year Warranty.
  • Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
  • If any big quality problems occurs out of the guarantee period, we will send maintenance
  • technician to provide visiting service after checking with the customer and charge for a favorable price.
  • We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
  • The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
