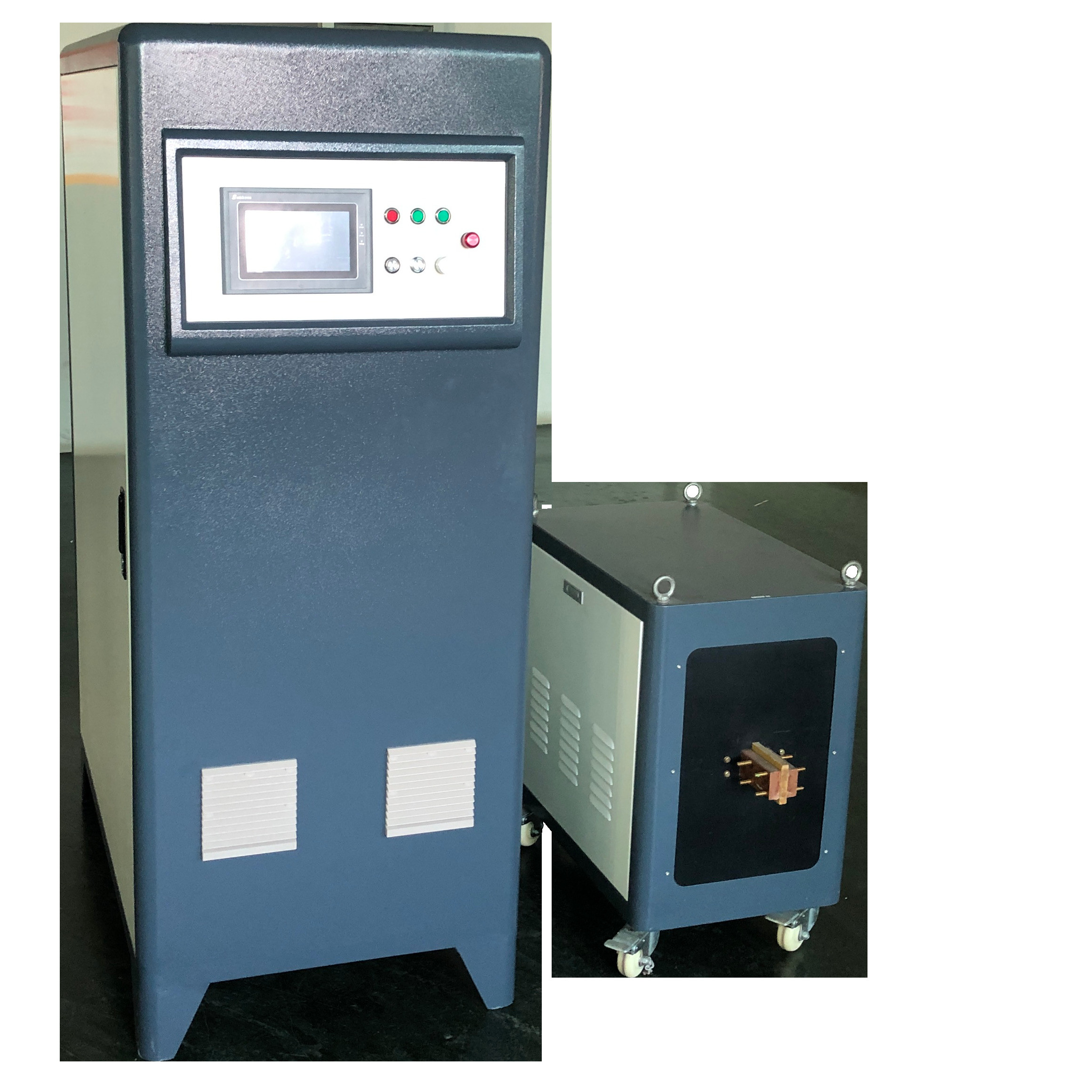

Industrial Induction Hardening Machine For Steel Screws Surface Hardening

1 Set
Industrial Induction Hardening Machine For Steel Screws Surface Hardening
Features Gallery Product Description Request A Quote
Product Name: Induction Hardening Machine
Voltage: 380V 3phase
Power: 250KW
Core Components: Circuit Board, Indcution Coil
Duty Cycle: 24 Hours, 100% Non-stop
Application: Annealing,Forging, Quenching,Melting,heat Treatment
Key Point: Safe, Environmentally, Energy Saving , High Efficient
High Light:

Surface Induction Hardening Machine


Steel Screws Induction Hardening Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC,ROHS
Model Number: GYMD-250AB
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 5-8 workdays, based on orders
Payment Terms: T/T
Supply Ability: 500 Sets per month
Product Description

 Higher Productivity Induction Hardening Machine For Surface Hardening of Steel Screws


Industrial Induction Hardening Machine For Steel Screws Surface Hardening 0


Induction is used to elevate the surface temperature of steel or other alloy in order to improve the wear resistance or to treat a select region of the material.

Induction hardening is a heat treatment method that involves the heating of a metal part using induction and quenching. The quenched metal goes through a process called a martensitic transformation, which increases both the hardness and brittleness of the metal part.


Induction heating has many uses and applications, one of which involves the process of induction hardening. The top three benefits of induction hardening are:

  • Fast heating cycles
  • Accurate heating patterns
  • Cores that remain relatively cold and stable


Industrial Induction Hardening Machine For Steel Screws Surface Hardening 1



250KW DSP Digital Control Induction Annealing Equipment For Stainless Steel Tube Annealing


Application Stainless steel  annealing
Work power 340V-430V Out power 250KW
Product size main : 1090*650*1610MM Certificate CE,SGS, ROHS
  transformer : 1070*480*850MM


The paramerters of 250KW DSP Digital Control Induction Annealing Equipment For Stainless Steel Tube Annealing:

Model GYMD-250AB (Three phase)
Work power 340V-430V
Maximum input current 375A
Output power 250KW
Fluctuating frequency 1-81KHZ
The flow rate of cooling water 0.08-0.16Mpa 12L/Min
Water temperature protection point 50C
Product size main : 1090*650*1610MM
transformer : 1070*480*850MM
Net weight main : 258kg
transformer : 178kg


Industrial Induction Hardening Machine For Steel Screws Surface Hardening 2



1. Heat treatment of metals: hardening, tempering, and annealing.


The process of induction hardening is most commonly used in steel alloys. This is because there are many mechanical parts, including gears, shafts, and springs, that are subjected to surface treatments prior to delivery in order to enhance what is known as wear behavior. However, it's important to keep in mind that the level of effectiveness of any given induction hardening treatment depends on a variety of factors, including the modification of surface material properties and the introduction of residual stress. But above all, the process is known to be one of the most effective and widely employed processes meant to increase component durability.




2. Heating prior to deformation: forging, swaging, upsetting, bending, and piercing.


3. Brazing and Soldering: brazing of steel, brass, and copper to each other in combination and aluminum to aluminum.


4. Shrink fitting: In any manufacturing process, for example, shrink fitting of motor rotors to shafts, shrink fitting of shell casings for compressors.


5. Coating: Of dissimilar metals, prior to insulation, and curing, such as paint.


6. Melting: Of all types of metals.


7. Other applications include crystal growing, cap sealing, sintering, carbon vapor deposition, levitation, exit axial deposition, and plasma generation.

stainless steel annealing


Industrial Induction Hardening Machine For Steel Screws Surface Hardening 4


  • Dramatic energy savings due to process efficiency

  • Minimal distortion

  • Higher throughput and productivity

  • Superior precision and unrivaled repeatability

  • Easy automation and incorporation into existing production lines

Industrial Induction Hardening Machine For Steel Screws Surface Hardening 5


induction heating machine, induction quenching machine


Industrial Induction Hardening Machine For Steel Screws Surface Hardening 8

Welcome to GY

GY had developed many years of research and is committed to providing customers with all kinds of medium frequency, high frequency, super audio frequency,ultrahigh frequency induction heating equipment, and automation equipment. We provide solutions for project planning, development, design, manufacturing and comprehensive after-sales service according to your needs. One-stop solutions for customer heat treatmen tneeds.The lates tDSP+FPGA all-digital control system products provide more professional, more accurate solutions and personalized high-quality products for many users on the road of innovation, transformation and transformation break throughs.



From 1996, devoted

For more than 27 years, GY has always been adhering to the company philosophy of innovation, adherence to quality and excellent operation. A single R&D office researches a single product. After more than 20 years of hard work, it has developed steadily. The current equipment users cover many industries such as manufacturing, electric power and nuclear power,government science reform, university scientific research, and special military industry. In view of the different voltage levels
in some countries, the company has developed special input voltage induction heating equipment for different frequency parameters. For example, the input voltage suitable for use i n the United States, Japan and other countries is single-phase 110V, three-phase 110V, three-phase 220V, and three-phase 480V. Heating equipment and heating equipment with input voltage of three-phase 415V and three-phase 440V suitable for use in Southeast Asian countries such as Malaysia, Australia and Thailand Inheritance builds trust.


Inherit and build trust

Made in China is facing global competition and challenges. To find a suitable position in the international and domestic markets and open up a larger market, we must use more advanced technology and good after-sales service to improve ourselves. We will always be committed to the application and promotion of GY series products in the market with the spirit of pursuing professionalism, excellence and perseverance, and seek cooperation with suppliers, agents and users with professional technical support and good business collaboration. Common development and progress.


market to world
