Industrial Induction Tempering Machine For Steel Induction Hardening

1 set

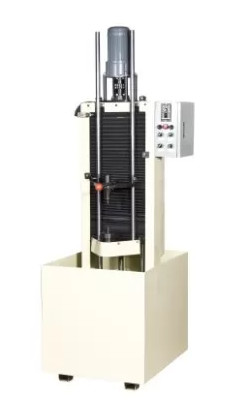

Industrial Induction Tempering Machine For Steel Induction Hardening
Features Gallery Product Description Request A Quote
Features: Energy Saving, Safer, More Efficient, Environmentally,
Product Name: Induction Hardening Machine
Heating Materials: Steel Bar
Warranty: 12months
Technology Support: All Life
After-sales Service Provided: Engineer On-site Service, Online Support, Video Technical Support
Work Time: 24 Hours A Day
Application: Induction Quenching, Induction Hardening
High Light:

Industrial Induction Tempering Machine


Steel Induction Tempering Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, SGS, ROHS
Payment & Shipping Terms
Packaging Details: wooden boxes
Delivery Time: 5-8 workdays after payment
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

Hardening Steel Induction Hardening Machine For Surface Quenching and Tempering


Industrial Induction Tempering Machine For Steel Induction Hardening 0



Hardening can be defined simply as any process by which the hardness of a material is increased and ductility is decreased. This can be done in order to strengthen high-wear surfaces and extend the service life of parts. Although there are a number of different methods for hardening which may be more or less suitable depending on the material being used, Induction technology is often utilized in a hardening process known as Quenching and Tempering.


Quenching and Tempering is a hardening process that can only be performed in medium to high carbon steel. The steel is heated to a high enough temperature for the crystal structure of the iron to change from ferrite to austenite. In this altered crystal state, the steel is able to dissolve much more carbon than it otherwise could. The steel is then quenched using water, oil, or, in the case of induction equipment, a water-polymer solution. This quenching cools the steel rapidly which prevents carbon precipitates from forming which can reduce the final hardness of the steel. Once the steel cools to a low enough temperature, the crystal structure tries to return to its low-temperature state. At this point, the steel has dissolved more carbon than it can hold in its original low-temperature state so it transforms into a different crystal structure called martensite. Martensite is extremely hard due to having distorted crystal structures and a higher saturation of carbon. At this point, the steel is very hard but as a result, it is also very brittle. Tempering involves heating the steel back up to a much lower temperature in order to slightly reduce the hardness and, in turn, reduce the brittleness. The temperature at which the steel is heated depends on how much hardness needs to be retained by the steel. Once the desired hardness is achieved, the steel is quenched again in order to prevent residual heat from tempering the steel further.

Induction Hardening Machine

Induction Hardening Machine is used for surface hardening and through hardening, via static hardening or scan hardening according to different type of workpieces such as shafts, gear, coupling, brake discs, chains, rolls, pipes, slabs, rods etc, Induction heating allows heat to apply on particular area of the part, precise hardening in particular zone ensures good hardening quality.


GY Induction hardening System consists vertical, horizontal, turntable and customized induction hardening machines. These machines are available from small, manually loaded machines to large, automatic hardening plants with induction convertor power output 80kW-500kW and wide range of frequency.

Industrial Induction Tempering Machine For Steel Induction Hardening 1


Name Spray cooling Quenching Machine Induction Hardening Machine For Tempering Gear Application Quenching and Tempering
Net weight 900kg Cooling method immersion, hydrojet
Dimension 1100*900*2000 Certificate CE,SGS



The maximum diameter of quenching material: 300mm

The maximum weight of the work piece: 50kg

Work piece operating speed:1-30mm/s

Work piece descent speed: 120mm/s

Speed of main shaft:1-200r/min

Motor power of main drive: 1.5kw

Cooling method: immersion, hydrojet

Machine Weight: 900kg

Dimension: 1100*900*2000

Transmission mode: mechanical rotation


Industrial Induction Tempering Machine For Steel Induction Hardening 2


Induction technology is most often used in Quenching and Tempering procedures where it provides the most distinct advantages. This procedure requires extreme amounts of precision in both the heating and quenching of the steel in order to achieve the desired hardness profile. Even extremely small variations in the procedure such as heating for a second too long or quenching at the wrong temperature can result in large variations from part to part. Because of this, precise control of the process becomes paramount. Induction technology offers more control than any other method of heating.

Automatic handling and fixturing of components for heating and quenching provides for high production rates and helps to produce consistent results part after part. Induction is by far the fastest method of hardening and heat treating. As a result, the process produces minimal distortion, no surface decarburization, fine grain microstructure, and precisely controlled hardness patterns. induction is the perfect solution for any facility looking to step up production to the next level.

Industrial Induction Tempering Machine For Steel Induction Hardening 3


Induction hardening is the heating process that increases the hardness and tensile strength of ferrous materials while induction tempering is used to increase the toughness of iron-based alloys. Tempering is usually performed after hardening in order to reduce some of the excess hardness.


shaft hardening






Industrial Induction Tempering Machine For Steel Induction Hardening 5


Our services

Pre-sale service.

  • Inquiry and consulting service
  • recommend the most suitable for our customers according to their requirements
  • Sample testing support
  • working videos available
  • View our factory

In-sale service.

  • Strictly manufacture the machine, according to relevant technical standards.
  • Take run test, according to relevant equipment test run regulations.
  • Strictly check up the machine, before delivery
  • Delivery on time.

After-sale service.

  • Warranty time: 1year Warranty.
  • Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
  • If any big quality problems occurs out of the guarantee period, we will send maintenance
  • technician to provide visiting service after checking with the customer and charge for a favorable price.
  • We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
  • The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
