Hydraulic Quenching Induction Hardening Machine For Dods Heating 200r / Min

1 set
Hydraulic Quenching Induction Hardening Machine For Dods Heating 200r / Min
Features Gallery Product Description Request A Quote
Features: Energy Saving, Safer, More Efficient, Environmentally,
Product Name: Induction Quenching Machine
Net Weight: 900kgs
Warranty: 12months
Technology Support: All Life
After-sales Service Provided: Engineer On-site Service, Online Support, Video Technical Support
Work Time: 24 Hours A Day
Application: Induction Quenching, Induction Hardening
High Light:

Hydraulic Induction Hardening Machine


Dods Heating Induction Hardening Machine


200r/Min induction quenching machine

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, SGS, ROHS
Payment & Shipping Terms
Packaging Details: wooden boxes
Delivery Time: 5-8 workdays after payment
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

Hydraulic Quenching Induction Hardening Machine For Dods Heating 1-200r/min

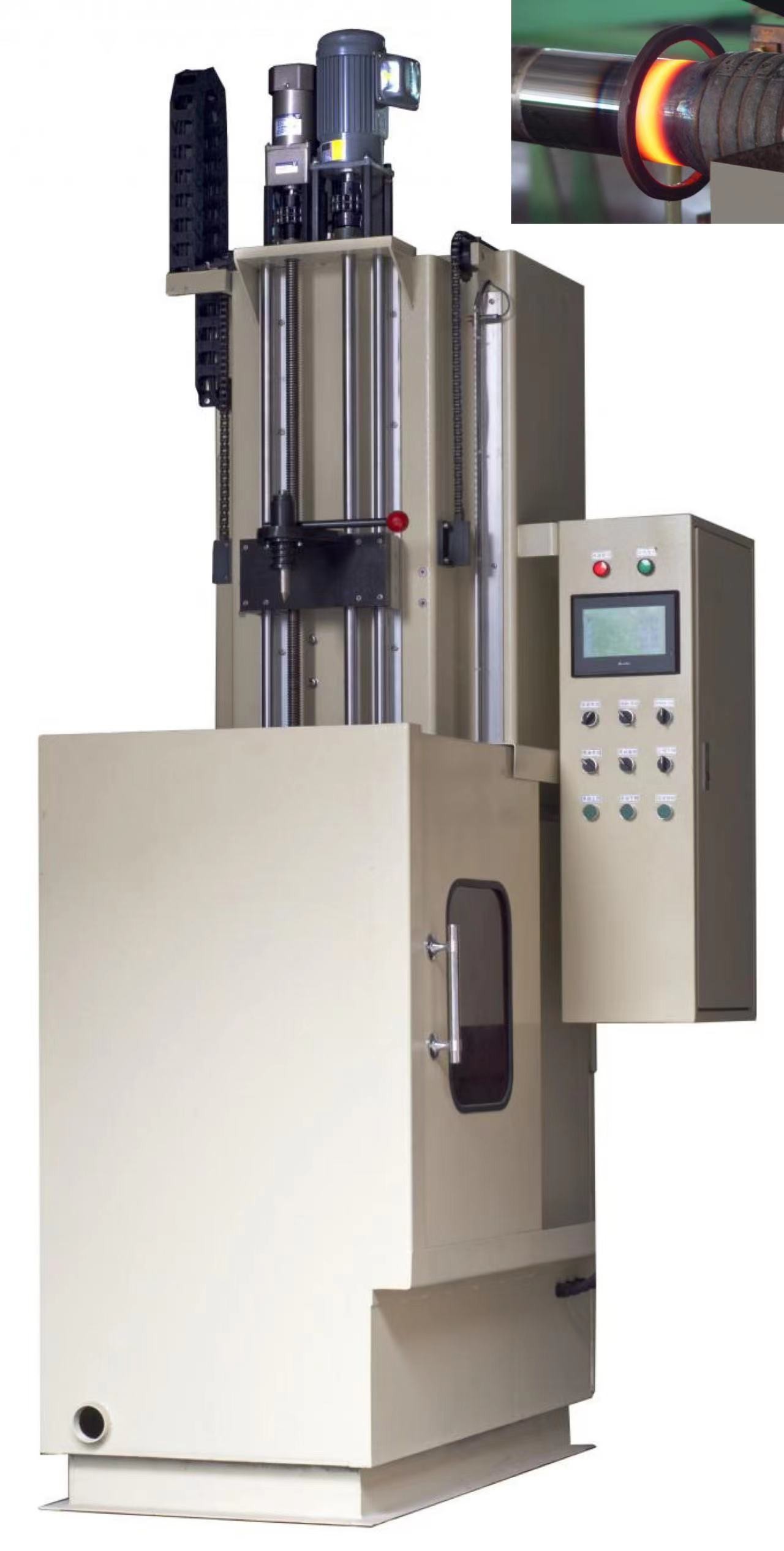

Hydraulic Quenching Induction Hardening Machine For Dods Heating 200r / Min 0

Induction Hardening Machine

  • Hardening of steels and cast iron represents the most popular application of induction heat treatment. Induction hardening is a complex combination of electromagnetic, heat transfer, and metallurgical phenomena. On the other hand, induction hardening is an energy-efficient, in-line, heat-treatment process widely used in the automotive industry to surface-harden these kinds of parts at the lowest possible cost. The substitution of induction heating/hardening for furnace heating/hardening can lead to savings of up to 95% of energy used in heat-treating operations, in addition to the energy savings enabled by optimization and lightweighting of automotive powertrain components.

  • The three most common forms of induction hardening are surface hardening, through hardening, and selective hardening. Depending on the specific application, selective hardening is sometimes considered a part of surface hardening or through hardening. Induction hardening is accomplished by passing an alternating current through a water-cooled copper coil that is coupled to the part by the induced magnetic field. The alternating magnetic field induces eddy currents that resistively heat the outer surface of the part.

Hydraulic Quenching Induction Hardening Machine For Dods Heating 200r / Min 1

Quick Detail:


Spray cooling Quenching Machine Induction Hardening Machine For Tempering Gear



Net weight


Cooling method

immersion, hydrojet






Technical Parameters

  • The maximum diameter of quenching material: 300mm
  • The maximum weight of the work piece: 50kg
  • Work piece operating speed:1-30mm/s
  • Work piece descent speed: 120mm/s
  • Speed of main shaft:1-200r/min
  • Motor power of main drive: 1.5kw
  • Cooling method: immersion, hydrojet
  • Machine Weight: 900kg
  • Dimension: 1100*900*2000
  • Transmission mode: mechanical rotation

Hydraulic Quenching Induction Hardening Machine For Dods Heating 200r / Min 2

Advantages of induction hardening:

  • Deeper Case Depth: Induction hardening can penetrate the surface of up to 0.31 inches (8 mm). This depends on the process of induction hardening and the material’s properties.


  • Finer Grain Size: As mentioned above, induction hardening changes the grain size on the surface of materials. A finer grain size increases hardness because the surface is harder to penetrate.


  • Higher wear and fatigue resistance: Induction hardening improves wear resistance because the structure of the surface layer is altered. Ferritic steels obtain a martensitic structure, which provides improved wear resistance.

Induction hardening is a good alternative to boronizing, which is a type of surface hardening BorTec specializes in. Induction hardening is recommended when mechanical properties, such as hardness, should be improved. If you’re looking for a treatment that can also improve adhesion, resistance against abrasive wear, good stability at high temperatures and resistance against acids, the certified BoroCoat treatment is the better choice. However, it depends on the area of application and other factors which hardening technique is more suitable for your needs. Contact us if you need any help deciding.




Hydraulic Quenching Induction Hardening Machine For Dods Heating 200r / Min 3


induction hardening machine








shaft hardening


Hydraulic Quenching Induction Hardening Machine For Dods Heating 200r / Min 6


Our services

Pre-sale service.

  • Inquiry and consulting service
  • recommend the most suitable for our customers according to their requirements
  • Sample testing support
  • working videos available
  • View our factory

In-sale service.

  • Strictly manufacture the machine, according to relevant technical standards.
  • Take run test, according to relevant equipment test run regulations.
  • Strictly check up the machine, before delivery
  • Delivery on time.

After-sale service.

  • Warranty time: 1year Warranty.
  • Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
  • If any big quality problems occurs out of the guarantee period, we will send maintenance
  • technician to provide visiting service after checking with the customer and charge for a favorable price.
  • We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
  • The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
