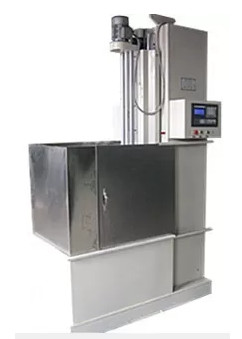

Industrial Induction Quenching Machine For Steel Cast Iron Heat Treatment

1 set
Industrial Induction Quenching Machine For Steel Cast Iron Heat Treatment
Features Gallery Product Description Request A Quote
Features: Energy Saving, Safer, More Efficient, Environmentally,
Product Name: Induction Quenching Machine
Net Weight: 900kgs
Warranty: 12months
Technology Support: All Life
After-sales Service Provided: Engineer On-site Service, Online Support, Video Technical Support
Work Time: 24 Hours A Day
Application: Induction Quenching, Induction Hardening
High Light:

Cast Iron Induction Quenching Machine


 Steel Induction Quenching Machine


Industrial induction Heat Treatment equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, SGS, ROHS
Payment & Shipping Terms
Packaging Details: wooden boxes
Delivery Time: 5-8 workdays after payment
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

Tempering Shaft Induction Quenching Machine Induction Hardening of Gears


Industrial Induction Quenching Machine For Steel Cast Iron Heat Treatment 0

Induction Hardening Machine

  • Induction hardening is a rapid process for surface hardening pins, shafts, gears, slips, and specialty items that require localized hardening without distortion of the part. Induction hardening is used on medium or high carbon mild and alloy steels.
  • Hardening of steels and cast iron represents the most popular application of induction heat treatment. Induction hardening is a complex combination of electromagnetic, heat transfer, and metallurgical phenomena. On the other hand, induction hardening is an energy-efficient, in-line, heat-treatment process widely used in the automotive industry to surface-harden these kinds of parts at the lowest possible cost. The substitution of induction heating/hardening for furnace heating/hardening can lead to savings of up to 95% of energy used in heat-treating operations, in addition to the energy savings enabled by optimization and lightweighting of automotive powertrain components.

Vertical Induction Hardening Machine

  • Scanning System which consists continuous parts moving with controllable power supply, heating time, moving speed, quenching and cooling
  • CNC control regards as “all in one” solution for rotating, movement, heating ,quenching
  • Process for scan hardening, single shot, with rotation or without rotation
  • Working well in different dimensions and characterizes of workpiece, pipe, shaft and gear.
  • Process hardening parts in length up to 2m and diameter up to 800mm

Horizontal Induction Hardening Equipment

  • Customized design for heating entire parts or specific section. Slab hardening, axis and similar parts can be hardened automatically.

Industrial Induction Quenching Machine For Steel Cast Iron Heat Treatment 1

Quick Detail:

Name Spray cooling Quenching Machine Induction Hardening Machine For Tempering Gear Application Quenching
Net weight 900kg Cooling method immersion, hydrojet
Dimension 1100*900*2000 Certificate CE,SGS


Technical Parameters

  • The maximum diameter of quenching material: 300mm
  • The maximum weight of the work piece: 50kg
  • Work piece operating speed:1-30mm/s
  • Work piece descent speed: 120mm/s
  • Speed of main shaft:1-200r/min
  • Motor power of main drive: 1.5kw
  • Cooling method: immersion, hydrojet
  • Machine Weight: 900kg
  • Dimension: 1100*900*2000
  • Transmission mode: mechanical rotation

Industrial Induction Quenching Machine For Steel Cast Iron Heat Treatment 2

Advantages of induction hardening:

  • Ability to localize hardening to specific areas.
  • Less distortion than alternatives such as carburizing.
  • Heavy case depths achievable, 1-10mm common.
  • Cheap/economical especially with parts of mass >10Kg.
  • Fast process - quick turnaround.

Industrial Induction Quenching Machine For Steel Cast Iron Heat Treatment 3


induction hardening machine








shaft hardening


Industrial Induction Quenching Machine For Steel Cast Iron Heat Treatment 6


Our services
Pre-sale service.

  • Inquiry and consulting service
  • recommend the most suitable for our customers according to their requirements
  • Sample testing support
  • working videos available
  • View our factory

In-sale service.

  • Strictly manufacture the machine, according to relevant technical standards.
  • Take run test, according to relevant equipment test run regulations.
  • Strictly check up the machine, before delivery
  • Delivery on time.

After-sale service.

  • Warranty time: 1year Warranty.
  • Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
  • If any big quality problems occurs out of the guarantee period, we will send maintenance
  • technician to provide visiting service after checking with the customer and charge for a favorable price.
  • We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
  • The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
