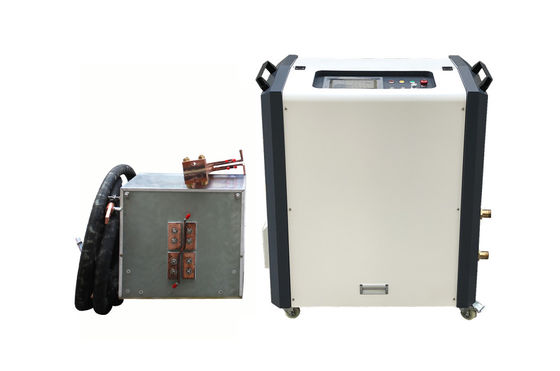

380 Volt 3 Phase Industrial Induction Heating Machine For Steel Plate Heating

1 SET
MOQ
negotiation
Price
380 Volt 3 Phase Industrial Induction Heating Machine For Steel Plate Heating
Features Gallery Product Description Request A Quote
Features
Specifications
Power: 120KW
Voltage: 380V, 3phase
Duty Cylce: 24 Hours Non Stop
Warranty: 12 Months
Usage: Hardening, Forging, Quenching, Annealing, Melting
Feature: Environmentally Friendly, Efficient, Safe, Energy Saving, No Pollution
Production Name: Induction Heating Machine, Induction Forging Machine
After-sale Service: Door To Door Service, Online Technical Support
High Light:

380Volt Industrial Induction Heating Machine

,

Steel Plate Industrial Induction Heating Machine

,

3Phase steel induction heater

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, ROHS, FCC
Model Number: GYDM-120AB
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: based on orders
Payment Terms: 100% T/T before shipment
Supply Ability: 500 set per month
Product Description

Fast Heating Industrial Induction Heating Machine 380V 3phase For Steel Plate Heating

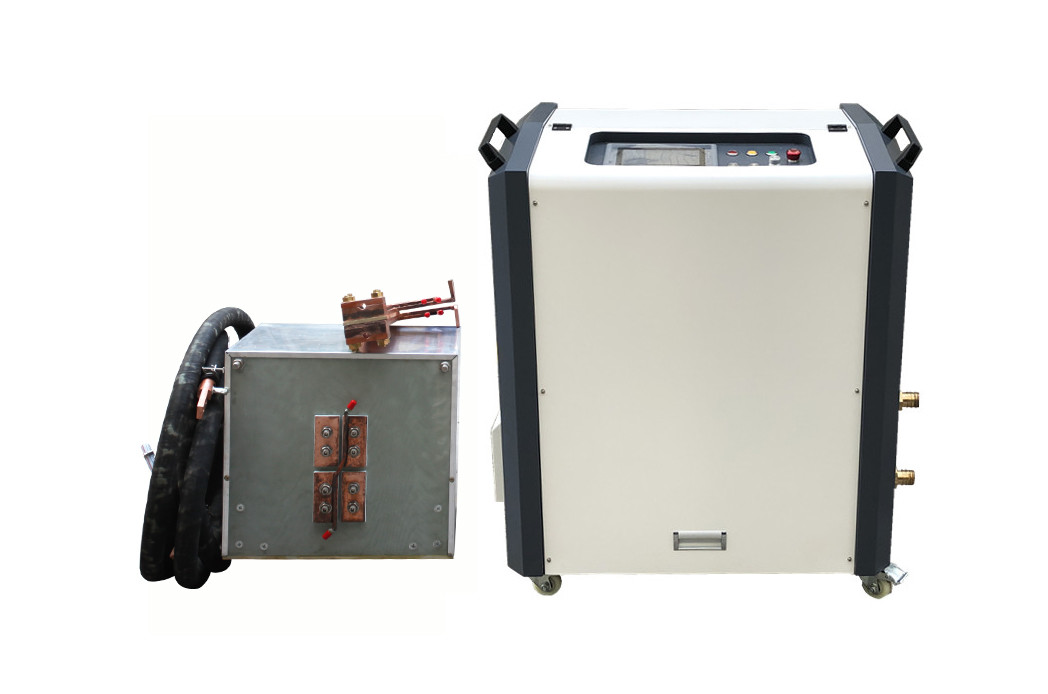

380 Volt 3 Phase Industrial Induction Heating Machine For Steel Plate Heating 0

GY Induction heating machine adopts the most advanced technology MOS-FET, IGBT frequency conversion control to ensure high efficiency and maximum out-put power.



Call us for money-saving,apply for heating,brazing,annealing,hardening,melting and so on.Benefit from our induction heating consultants nearly 27 years experiences creating precision heating treatment solutions.



  • IGBT system technology, high conversion efficiency; Energy saving 15%-30% , compared to SCR/KGPS technology
  • Much more efficient than gas-fired and coal-fired method
  • 100% start-up success rate; power factor > 95%
  • Perfect and complete protection functions, increasing machine's reliability & stability
  • No special foundations required, Low operating cost, easy operation
  • Modular design, ease of maintaining and repairing

What is induction heating?



Induction heating is a fast,efficient,precise and repeatable heat treatment method for heating metals or other electrically-conductive material.Material is a metal such as steel,iron,brass,aluminum,alloy,copper,stainless steel,tungsten,nickel,precious metals,silver,zinc,gold and etc.or be semiconductor such as silicon carbide,carbon or graphite.



Fast Heating Industrial Induction Heating Equipment 380V 3phase For valve Gear hardening 0





380 Volt 3 Phase Industrial Induction Heating Machine For Steel Plate Heating 2



Induction Heater Power Require depends on following factors :



»

Mass of work piece



» Material properties of work piece
»

Temperature increase you require



» Heating time require
»

Effectiveness of coil design



» Comprehensive full load design
»

Any heat loss during heating process





380 Volt 3 Phase Industrial Induction Heating Machine For Steel Plate Heating 3

The parameters of the Fast Heating Industrial Induction Heating Machine GYSQ-TC-120AB:



Model GYSQ-TC -120AB (Three phase)
work power 340V-430V
Maximum input current 180A
Output power 120KW
fluctuating frequency 10-50khz
output current 400-4000A
the flow rate of cooling water 0.08-0.16Mpa 10L/Min
water temperature protection point 50C
product size main : 770x550x1510mm
transformer : 870x430x750 mm
net weight main : 150gks
transformer : 120kgs


Delivery Time: within 7 workdays.
Shipping Term:By sea,By air,by express.



380 Volt 3 Phase Industrial Induction Heating Machine For Steel Plate Heating 4

380 Volt 3 Phase Industrial Induction Heating Machine For Steel Plate Heating 5

380 Volt 3 Phase Industrial Induction Heating Machine For Steel Plate Heating 6

In the early induction heating equipment, the high frequency inverter equipment required by the inverter unit determines the form of the equipment. From electron tube, thyristor to current universal IGBTs. In the current main stream IGBT-type induction heating products, there are still many differences in-circuits and structures. From the rectifier unit controlled rectification mode and uncontrollable rectification mode; from the perspective of the inverter unit, there are pulse width modulation inverter mode and chopper voltage regulation inverter mode. Parallel resonance from resonant output unit vibration mode and series resonance mode. Various circuits and structures have differences in performance (such as efficiency,power factor, and reliability).



Although using IGBT instead of thyristor Tubes and electronic tubes have made great progress, but most of the induction heating power supply devices developed and produced by manufacturers still have some common problems.

Compared with non-digital products, all-digital products have improved performance in all aspects. This series of products are IGBT or MOSFET inverters, and all adopt DSP Digital precision control, the core control strategy is the reactance analysis method, which can always ensure that the IGBT is ni the ZCS switching state under various working conditions, as to adapt to the inductance and Strong on-site working conditions; multiple operation and control modes and set table functional parameters to make the product meet the requirements various processes needs.


DSP full digital control products, according to different cooling methods,are divided into two categories: air-cooled and water-cooled; the internal components of the equipment are composed of The water circulation takesaway the heat generated by the work of the components, which is the water-cooled type; and the internal components of the equipment are cooled by wind energy, which is the air-cooled type. This type is a new research and development process.



380 Volt 3 Phase Industrial Induction Heating Machine For Steel Plate Heating 7

Induction heating Application:

1. Forging

    (Bar,flat plate,bar end heating,pipe ends,bar end heating)



2. Pre-heating

    (Pipe,steel wire,stainless steel wire)



3. Brazing

    (Saw blades,carbide tools,cooper tube,aluminum part,drilling tools,Pan)



4. Annealing

    (Steel pipe,golf ball head,brass lock,aluminum pan)



5. Hardening

    (Gear,shaft,pipe,bearing,pump fitting,steel plate,roller)



6. Shrink fitting

    (motor,pipe)



7. Melting

    (Iron,steel,brass,aluminum,silver,zinc)

INDUCTION FORGING





380 Volt 3 Phase Industrial Induction Heating Machine For Steel Plate Heating 9

Q: Why choose GuangYuan Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,price,service,delivery time,we all have large advantage.



Q:How to choose suiteble machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,pass me workpiece material & size,Temperature requirement and heating time requirement.Then we will recommend fit machine for you reference.



Q:How about the machine delivery time?
A: Small machine delivery time is 3~7 workdays.Big machine delivery time 15~25 workdays. Normally based on orders.



Q:How about the machine warranty?
A:Our goods support one year warranty not by personal purpose,support technical service all life.


During the warranty,if machine have problem need change spare parts,we can replace for you charge free.





Our services


1).Pre-sale service.
1.Inquiry and consulting service
2.recommend the most suitable for our customers according to their requirements
3.Sample testing support
4.working videos available
5.View our factory


In-sale service.
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.


After-sale service.
1. Warranty time: 1year Warranty.

2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
