430V Touch Screen Industrial Induction Heating Machine With Automatic Feeding Sytem

430V Touch Screen Industrial Induction Heating Machine With Automatic Feeding Sytem
Features Gallery Product Description Request A Quote
Product Name: Industiral Induction Heating Equipment
Control System: IGBT, DSP Touch Control
Feeding System: Automatic Pull Lift System
Duty Cycle: 24 Hours Non-stop
Application: Hardening, Quenching, Annealing, Shrink Fit, Melting
Warranty: 1 Year
Feature: Touch Screen, Safe, Easy Operation
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

Touch Screen Industrial Induction Heating Machine


Automatic Feeding Industrial Induction Heating Machine


430V automatic induction heater

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS
Model Number: DSP
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

340V-430V High Frequency Industrial Induction Heating Machine With Automatic Feeding Sytem

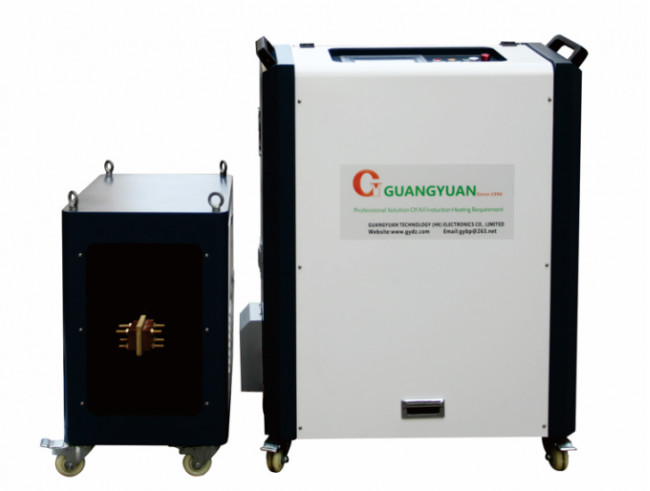

430V Touch Screen Industrial Induction Heating Machine With Automatic Feeding Sytem 0


During induction heating GY currents are induced in an electrically conductive metallic workpiece by an alternating electromagnetic field. These are converted into heat by magnetic loss. – Or, simply put, the metal heats up due to the current flow produced in the workpiece. This enables induction heating to introduce heat directly into the workpiece rather than through connectivity from an external source such as heating with a flame or in a furnace. This process thus achieves a very high degree of efficiency. Additionally, heating can also be accomplished passing through non-conductive materials. The surrounding area is only heated indirectly.

The laws of Induction are the basis for all Induction heating processes such as: induction hardening, induction tempering, induction annealing, induction brazing, induction welding and other hot forming technologies. GY generators have been specially developed for induction heating. GY's large product portfolio of Induction generators allows for the optimum solution for the different applications.


Induction heating is a fast, efficient, precise and repeatable non-contact method for heating metals or other electrically-conductive materials. The material may be a metal such as brass, aluminum, copper or steel or it can be a semiconductor such as silicon carbide, carbon or graphite.


GY indcution heating had developed about 27 years of research and is committed to providing customers with all kinds of medium frequency, high frequency, super audio frequency, ultrahigh frequency induction heating machine, and automation equipment. We provide solutions for project planning, development, design, manufacturing and comprehensive after-sales service according to your needs. One-stop solutions for customer heat treatment needs.The latest DSP+FPGA all-digital control system products provide more professional, more accurate solutions and personalized high-quality products for many users on the road of innovation, transformation and transformation breakthroughs.



The power required to heat your work piece depends on:

  • The mass of your work piece
  • The material properties of your work piece
  • The temperature increase you require
  • The heating time required to meet your process needs
  • The effectiveness of the field owing to the coil design
  • Any heat losses during the heating process

After we determine the power needed to heat your work piece we can select the correct induction heating equipment taking the coil coupling efficiency into consideration.


technical parameters

The depth of heating of the workpiece depends on the material properties of the workpiece. The frequency of the current supplied by the generator also has a significant influence on the depth of heating. Higher frequencies are particularly suitable for heating contours very accurately at a low depth of penetration in the workpiece. Lower frequencies are suitable for a higher depth of penetration.
Depending on the task, a detailed analysis must therefore be performed in order to select the optimal generator for the induction heating task. Next to the inductor, the frequency is one of the key criteria for the success of induction heating process. However, the material, heating temperature and production batch sizes also have a significant influence on the design of an induction heating solution.
GY offers generators for induction heating for the following materials:
Copper, copper alloys, brass, aluminum, iron, steel, stainless steel, hard metals, tungsten, chrome, nickel, nickel alloys, cobalt, precious metals,
carbon fiber, silver, platinum, graphite, silicium.


induction heating machine

induction heating machine, induction heating equipmentinduction heating machine, induction heating equipment

430V Touch Screen Industrial Induction Heating Machine With Automatic Feeding Sytem 5

The advantages of the DSP induction heating machine:


1. Small size, light weight, no high pressure equipment, small footprint and movable operation;


2. Less power consumption and saving cooling water;


3. Fast heating and less oxide layer;


4. According to the size of the power, the frequency band is divided into a variety of models, customers can be selected according to the process requirements, in order to obtain a satisfactory performance price ratio;


5. The installation is simple, easy to operate, the user only needs to take 10 minutes to learn the entire operation process;


6. Fault detection and protection features complete:

    The perfect fault detection and protection circuit monitors the faults of water shortage, overheating, overvoltage, overcurrent and lack of faults in real time, and responds quickly. The cause of the fault is displayed on the display screen at the right time, and the indicator light is synchronized; in addition, it can also be output by the output port. Relay signal for external system coordination work.


7. Resonant frequency automatic tracking system:

    It completely solves the shortcomings of analog system frequency tracking and ensures the stability of IGBT resonant system; it can keep the output current or power unchanged even if the power grid fluctuates, and ensure that IGBT always works at zero current switch (ZCS) under any working condition. In the state, the IGBT is in the best working state, the power consumption is the smallest, and the whole machine is the most efficient;


8. Friendly man-machine interface:

    Human-computer interaction can be selected in a variety of ways, LED indicator or digital tube display, touch screen display and control, text screen display, customers can choose as needed; from the function realization and operation settings, the traditional mechanical button panel is fully covered. Make operation and maintenance easier, more intuitive and more convenient;


9, Hardware isolation interface:

    It is compatible with existing PLC on the market, which is beneficial to customers' functional transformation of existing PLC systems and further expansion of automation systems.


10. Remote communication interface:

     With RS-23Z/RS-485/CAN communication interface, it can realize multi-machine network monitoring and control. The default RS485 adopts the common MODBVS communication protocol; 4-20MA or 0-10V interface can support closed-loop control with external system, such as temperature Closed loop control system.


11, zero power start: zero voltage output of start and standby, no need for false load support.


12, working mode: you can choose constant current, or constant power, you can also do constant voltage source output.


13. The device is equipped with a conspicuous red emergency stop button. When an emergency occurs, you can quickly press this button.

Stop the equipment work and use it to achieve protection measures.


14. The internal components of the equipment are reasonably laid out, and the main control circuit board is placed on the weak current side to avoid interference of the strong electricity to the control circuit and improve the control precision;



induction heating machine application

Industrial Induction heating machine is widely used in the following industries:


Heat treatment industry (hardening, annealing, tempering and stress relieving):


  • Hardware tools high-frequency hardening heat treatment, such as; vise, hammer, locking pliers, wrenches, screwdrivers


  • Variety of steam, motorcycle parts high-frequency hardening heat treatment, such as: crankshaft, connecting rod, piston pin, camshaft, valves, various gears within the gearbox, a variety of fork, all kinds of spline shaft, drive axle, each high-frequency hardening heat treatment of the kinds of small shafts, crank pin, rocker arm, rocker shaft


  • Hydraulic components, such as: a rotor of the plunger piston pump, rotor pump, various valves on the other to the heat treatment of high-frequency hardening of the shaft, the gear pump gears, etc.


  • Automotive, machinery and equipment, electric tools, gear, bearing high-frequency hardening heat treatment


  • Variety of woodworking tools, such as: ax, planer quenching Wheels of a variety of automotive, motorcycle, marine and engineering equipment, machine axis IF quenching, large parts of the annealing, tempering and stress relieving.

The welding industry (brazing)


  • Welding of various turning tools, planer, milling machining and cutting tools


  • Welding of various diamond tools, such as: welding diamond saw blades, diamond drill


  • Various shaped drill head column Button Bits, drill Yan briquette, riveting rod drill carbide brazed


  • Various shearer teeth welding, various digging machine cutter welding


  • Various mechanical welding tool, Air conditioners, refrigerators, refrigeration system brass brazing, pipe brazing, as well as brass and aluminum tubes brazed

Forging industry


  • Heat pier variety of standard parts, non-standard parts, pieces of copper, steel and aluminum parts casting and forging


  • Hardware tools such as pliers, wrenches before forging heating


  • Solder with solder tail caudal peduncle cone drill head forging


  • A extrusion molding on the stainless steel container.

The precious metal smelting industry


  • The sample melting of steel, iron, copper, aluminum and other tests, as well as gold, silver and other precious metals smelting

induction annealing for steelinduction annealing for stainless cup

430V Touch Screen Industrial Induction Heating Machine With Automatic Feeding Sytem 9

Q1: Why should I trust your company and choose you?
A1: We are a professional induction heating equipment, set research and develop sales, service as one of the high-tech enterprises. We have 27 years of profession: equipment research and development experience, is China's most professional bra heating complete sets of automation equipment manufacturers.


Q2: Where is your company and can I come and visit it?
A2: Yes, Bajiaowo Industrial Park, Wanjiang District, Dongguan, Guangdong, China. You are welcome to visit our factory anytime


Q3: How do I set up your machine
A3: We have paper installation instructions and videos, and we'll teach them until you learn them.


Q4: Do you have any equipment in stock?
A4: Yes, we have some of our best-selling models in stock for immediate delivery upon payment


Q5: Can you provide free samples of the machines?
A5: Sorry, we can't give you a free sample because of the high price of the machines, we can sample test your workpiece for free.Our machines are sure to meet your requirements and give you satisfaction.


Q6: What is your quality control?
A6: We have A professional team responsible for product testing and packaging before delivery, you can rest assured to buy.


Q7: How many days will it arrive after I buy the machine?
A7: Usually 5-7 workdays, but 20-30 days for large machines


Q8: What should I do if the machine breaks down?
A8: Within the one year warranty of the machine, we will provide you with spare parts free of char For customers who buy the machines, if they have any problems with the machines, they can take pictures or record videos for us. We will guide the customer to carry out repairs. If we still can't sol the problem, we can send our engineer to your factory


Q9. What about the warranty?
A9: All of our products have a one-year warranty. During the warranty period, spare parts will be replaced free of charge. We provide lifelong technical support and other assistance.


GY offers a wide range of compact generators for induction hardening that provide customers with the highest-quality in terms of performance. With the precision frequency adjustment, even the most demanding jobs can be completed with ease. To ensure that the perfect solution is discovered for any application, the MIND range of machines have been specially designed and manufactured to meet customer requirements. Not only does eldec offer hardening systems, but they also offer a wide range of generators, tools and brazing and heating systems.
