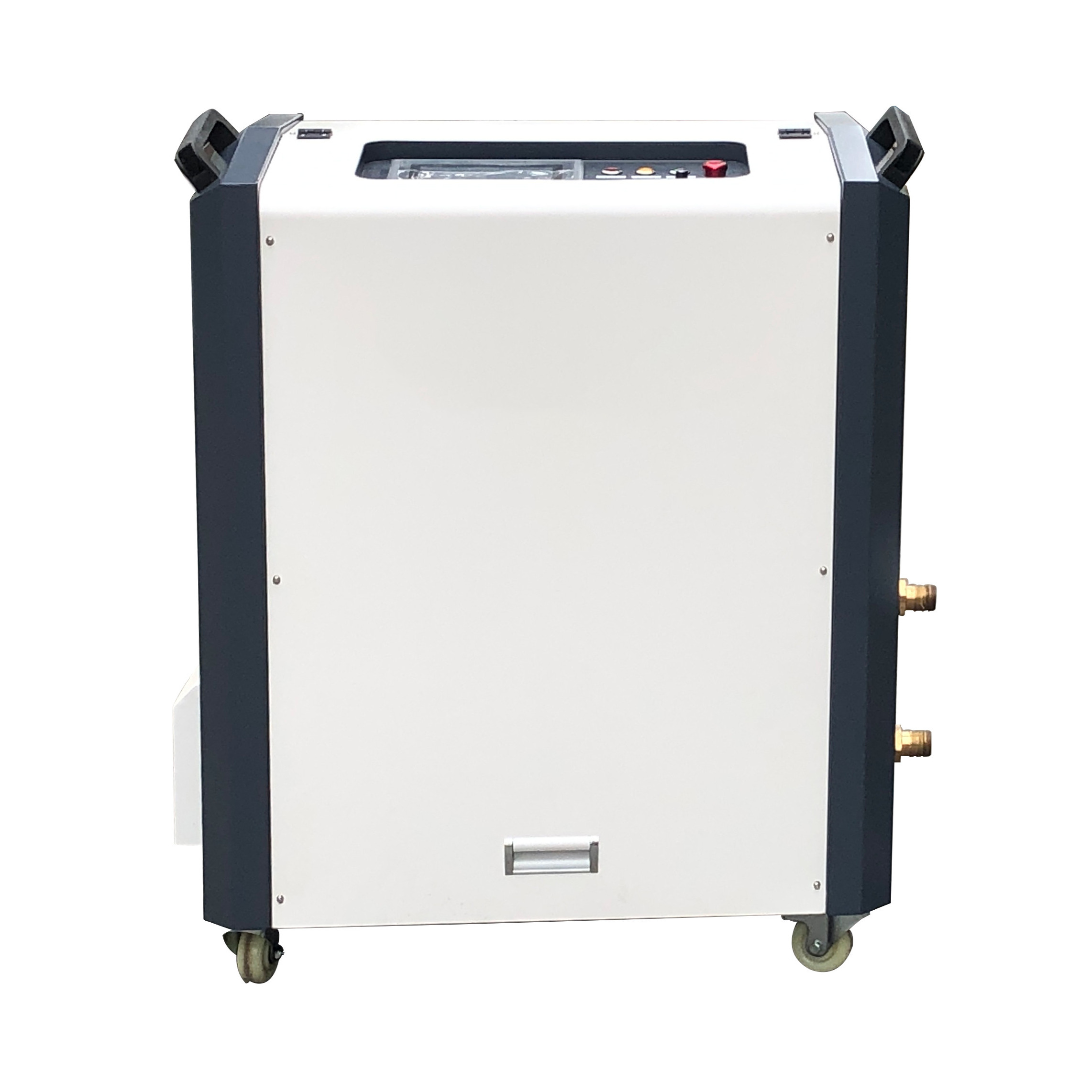

30KW DSP 1-10KHZ Medium Frequency Induction Heating Machine For Quenching
WHAT IS INDUCTION HEATING:
Induction heating is a proven; precise, repeatable and efficient heating method that can be easily integrated into your production process.
Induction Heating offers a controllable and localized method of heat without contact to the parts (components) being heated. The heat is generated by inducing an alternating magnetic field into electrically conductive materials.
SIX PROTECTION OF INDUCTION HEATING MACHINE:
The parameters of 30KW DSP 1-10KHZ Medium Frequency Induction Heating Machine For Quenching:
| Model | GYM-DSP-30AB (Three phase) |
| Work power | 340v-430v |
| Max input current | 45A |
| Max output power | 30KW |
| Fluctuating frequency | 1-10KHZ |
| The flow rate of cooling water | 0.15-0.3Mpa 7.6L/Min |
| Water temperature protection point | 40C |
| Product size | main :940x580x1020 mm |
| transformer :671x400x560 mm | |
| Net weight | main : 115 kg |
| transformer : 50 kg |
THE ADVANTAGES OF THE INDUCTION HEATING MACHINE:
Improve productivity
Improve energy efficiency
Easy integration to production processes
Wide range of power and frequencies available
Wide range of standard and customized machines available
We have established an R&D system. It is supported by advanced engineers and professional workers, who are especially engaged in researching and developing the machinery of middle or high frequency induction heating and high frequency inverter electrolysis and galvanization power supply. Since we owned strong technique development capability, our factory has been insisting on producing new product and new craftwork to assure our leading position on technique in this field.
Under the effort of several years, our factory has produced series of high quality products in various categories. We can also exclusively produce these products on your requirement to meet you need. Our middle or high frequency induction heating equipment is produced for special voltage condition of some countries. For instance, there is single-phase 110V, three-phase 220V induction heating equipment for America and Japan and three-phase 415V, 440V induction heating equipment for such southwestern Asia countries as Malay and Thailand.
