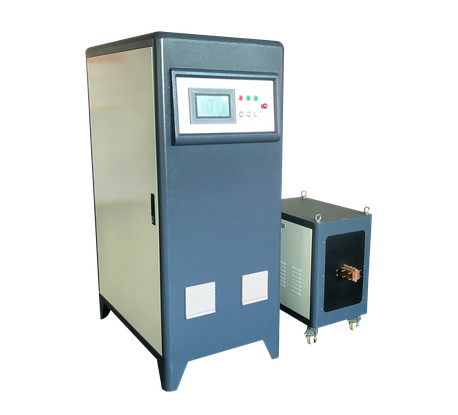

Digital Induction Heating Furnace For Forging 160KW 380V Power

Digital Induction Heating Furnace For Forging 160KW 380V Power
Features Gallery Product Description Request A Quote
Product Name: Medium Frequency Induction Heating Machine
Control Method: Full Digital Precision Control
Work Time: Continuous 24 Hours Per Day
Applications: Hardening, Forging, Annealing, Quenching, Melting
Voltage: 380V 3phase
Warranty: 1 Year
After Sale Service: Online Technical Support, Door To Door Service
Major Features: Fast Heating, High Output, Enviromental Friendly
High Light:

160KW Induction Heating Furnace


Forging induction heating furnace


380V induction heating furnace for forging

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, SGS, ROHS
Model Number: GYMD-160AB
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 5-8 workdays
Payment Terms: T/T
Supply Ability: 500 SETS per month
Product Description

Good Diathermy Medium Frequency Induction Heating Machine 160KW 380V
Digital Induction Heating Furnace For Forging 160KW 380V Power 0



  • Medium frequency induction heating generator with large power, low frequency, good diathermy. High efficiency, energy saving, simple operation, easy installation.
  • Automatic arbitrary adjustment, improves capacity. Manual, automatic arbitrary adjustment, improves the workpiece heating quality and heating repeatability and continuity.
  • All solid-state IGBT frequency conversion and power adjustment to achieve automatic frequency tracking.
  • Overvoltage, over current, overheating, lack of phase, water shortage, and other automatic protection functions to ensure the reliability of the medium frequency induction heating equipment.

Digital Induction Heating Furnace For Forging 160KW 380V Power 1

Model GYMD-160KW (Three phase)
Work power 340V-430V
Maximum input current 240A
Output power 160KW
Fluctuating frequency 1-10KHZ
The flow rate of cooling water 0.08-0.16Mpa 12L/Min
Water temperature protection point 50C
Product size 1090x650x1610 mm
Net weight 265 kg


Medium frequency induction heating generator preparation before starting the machine: A series of inspections are needed before the induction heater is turned on each time, including electrical equipment, waterways, etc. Check whether the waterway is blocked, and ensure whether the waterway of the inductor, transformer, and main control cabinet is unblocked. Check the circuit for screw loosening, ignition, and other faults. Medium frequency induction heating equipment is forbidden to turn on when an inductor short circuit occurs and should follow the safety rules of the equipment.

Medium frequency induction heating generator using environment: Medium frequency induction heating generator is using low voltage and high current to heat the workpiece, so the machine room should be selected in a well-ventilated place, and the room should be kept dry always.

Medium frequency induction heating generator operator requirements: There should be at least 2 people on duty in the operation room of the medium frequency induction heater, and the relevant personnel with the operation experience of the medium frequency induction heating generator should strictly abide by the safety operation specifications.

Digital Induction Heating Furnace For Forging 160KW 380V Power 2

Digital Induction Heating Furnace For Forging 160KW 380V Power 4


  • The medium frequency induction heating equipment heating temperature is high, the speed is fast, the heating time is short, and the metal material is heated evenly. The surface of the heated material is less oxidation, the workpiece deformation is small and non-contact heating.


  • Flexible output power adjustment, convenient, accurate control.


  • The temperature of the heated workpiece is easily controlled, so the product quality is stable.


  • The complex workpiece can be heated by changing the shape of the induction heating coil, and local heating can also be realized.


  • Due to the use of its own small loss transistor device and inverter control technology, the efficiency of the whole machine can reach more than 95%, and the effect of energy-saving and water-saving is remarkable.


  • Machine small volume, lightweight, good working environment, no noise, and dust.


  • All kinds of protective action sensitive, the main components with long life, low failure rate, reliable performance, can 24 hours working continuously.

Digital Induction Heating Furnace For Forging 160KW 380V Power 5


Medium frequency induction heating equipment application: industrial metal parts surface hardening, metal melting, steel bar induction forging, and other fields.

  • Induction brazing welding: Cutting, drilling tools, cutting tools, woodworking tools, lathe tool, drill bit, brazing, reamer, milling cutter, drill bit, saw blade serrate, glasses frame, steel pipe, copper pipe welding, cutting teeth, the same of dissimilar metal welding, compressor, pressure gauge, stainless steel pot, relay contact composite materials with different welding, welding transformer winding copper wire, storage (gas filling and the mouth of the welding, Welding of stainless steel table and kitchenware).


  • Induction heat treatment: induction hardening and annealing of mechanical metal parts (surface, inner hole, local and whole) such as gear, machine tool guide rail, hardware tools, pneumatic tools, power tools, hydraulic parts, ductile iron, auto and motorcycle parts, internal parts, stainless steel pot products stretching.


  • Induction forging: Standard parts, fasteners, masterpieces, small hardware, straight shank twist drill, overall, local heating and twist drill of hot upsetting the following round steel, hot-rolled, diameter 100 mm to the annealing of metal, stretching, modeling, embossing, bending, smashing head, wire nail, stainless steel products (wire) heating type annealing, stretching, rise, thermal expansion, etc.


Digital Induction Heating Furnace For Forging 160KW 380V Power 7

GY Induction has been engaged in manufacturing of induction heating machine for 27years. At present, there are currently more than 10,000 GY induction heating machines working all over the world. GY induction heating machines are widely used in mechanical forging heating processing, industrial heat treatment manufacturing, tool induction brazing manufacturing, and other fields. Based on the principles of induction technological updates and customers' need, GY induction heating has always been strving to produce industrial induction heating machines with GY Induction Heating's own characteristics and independent core technologies in the induction heating industry. With the upgrading of induction heating equipment from generation to generation, as well as our rich experience in induction heating industrial applications, we serve end customers with high quality industrial induction heating machines all over the world. Taking "win-win with customers" as our value foundation, GY Induction Heating, with our complete R&D designs, project solutions, production team, and after-sales support, are looking forward to cooperating with you.
