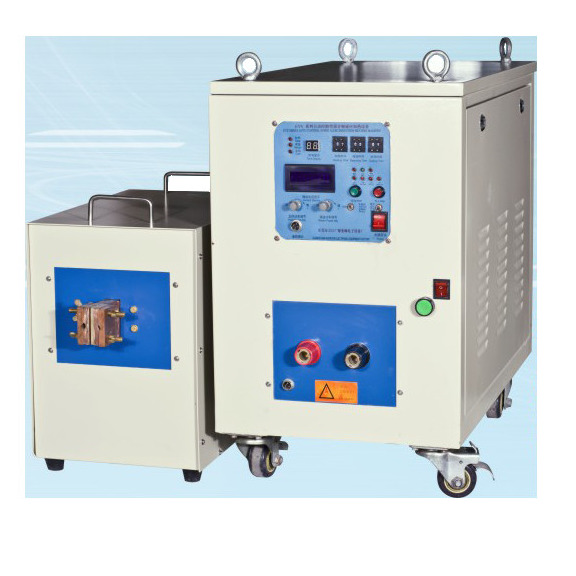

High Output Medium Frequency Induction Heating Machine For Metals Melting
HOW TO CHOOSE A SUITABLE MEDIUM FREQUENCY INDUCTION HEATER:
When choosing the different medium frequency induction heaters should consider two important factors, one is power and one is frequency.
Power: The induction heater power decide the workpiece heating speed, the bigger the power level, the faster the heating speed.
According to different workpiece weights, heating temperatures, and heating speed choose the suitable medium frequency induction heater power level.
Frequency level: The heating depth decides the frequency level, the deeper the hardening depth, the lower the frequency level should be. The medium frequency induction heater frequency level range is 1-10KHZ.
SIX PROTECTION OF INDUCTION HEATING MACHINE:
THE PRAMETERS OF GYM-40AB MEDIUM FREQUENCY INDUCTION HEATING MACHINE For FORGING:
| Model | GYM-40AB (Three phase) |
| work power | 340V-430V |
| Maximum input current | 65A |
| Output power | 40kw |
| fluctuating frequency | 5-20khz |
| output current | 400-1800A |
| the flow rate of cooling water | 0.08-0.16Mpa 9L/Min |
| water temperature protection point | 50C |
| product size | main :780x370x620 mm |
| transformer : 510x260x410 mm | |
| net weight | main : 54 kg |
| transformer : 32.5 kg |
THE ADVANTAGES OF THE INDUCTION HEATING MACHINE:
APPLICATOINS OF MEDIUM FREQUENCY INDUCTIO HEATER:
Medium frequency induction heating generator has the advantages of small volume, lightweight, high efficiency, excellent thermal processing quality, and favorable environment, is rapidly eliminating coal-fired furnaces, gas furnaces, oil furnaces, and ordinary resistance furnace is a new generation of metal heating equipment.
The Medium frequency induction heating generator is the main equipment for casting, forging, and heat treatment workshops. Its stability, reliability, and safety are the guarantees of normal and stable operation of the casting, forging, and heat treatment production line. Medium frequency induction heating furnace has a good development prospect in the field of thermal processing, such as the main production of forging heating furnace, diathermy furnace and used for: diathermy, rolling, forging, bending, heat treatment (quenching), welding and other processes of induction heating.
We have established an R&D system. It is supported by advanced engineers and professional workers, who are especially engaged in researching and developing the machinery of middle or high frequency induction heating and high frequency inverter electrolysis and galvanization power supply. Since we owned strong technique development capability, our factory has been insisting on producing new product and new craftwork to assure our leading position on technique in this field.
Under the effort of several years, our factory has produced series of high quality products in various categories. We can also exclusively produce these products on your requirement to meet you need. Our middle or high frequency induction heating equipment is produced for special voltage condition of some countries. For instance, there is single-phase 110V, three-phase 220V induction heating equipment for America and Japan and three-phase 415V, 440V induction heating equipment for such southwestern Asia countries as Malay and Thailand.
