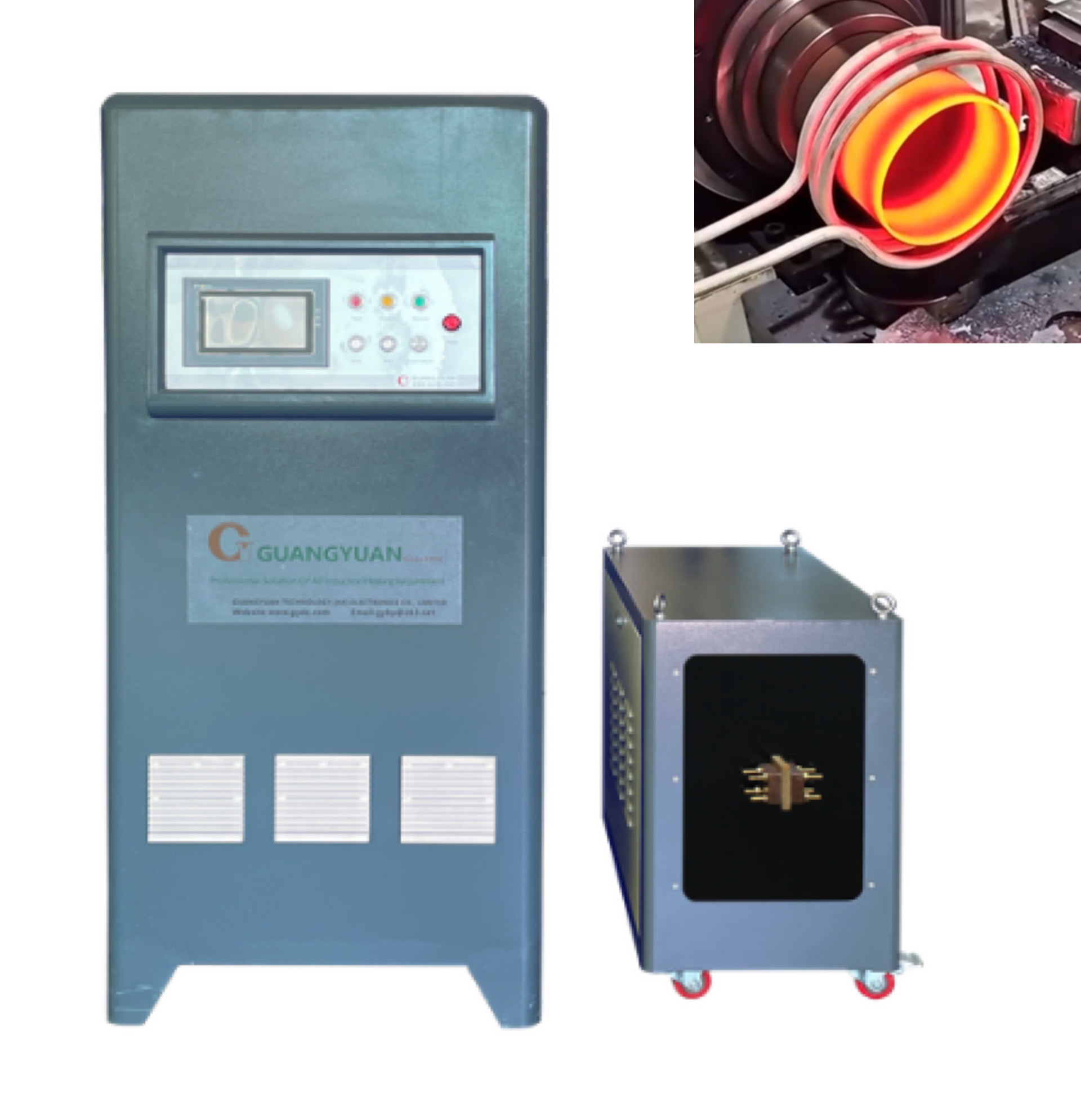

160KW Induction Heat Treatment Machine For Stainless Steel Online Annealing

1 set
160KW Induction Heat Treatment Machine For Stainless Steel Online Annealing
Features Gallery Product Description Request A Quote
Features: Energy Saving, Safer, More Efficient, Environmentally,
Product Name: Induction Heat Treatment Machine
Heating Materials: Stainless Steel
Warranty: 1 Year
Technology Support: All Life
After-sales Service Provided: Engineer On-site Service, Online Support, Video Technical Support
Work Time: Non Stop, 24 Hours A Day
Application: Online Annealing
High Light:

160KW Induction Heat Treatment Machine


Induction Heat Treatment Machine Annealing


Stainless Steel Induction Annealing Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, SGS, ROHS
Model Number: GYS-160AB
Payment & Shipping Terms
Packaging Details: wooden boxes
Delivery Time: 5-8 workdays after payment
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

160KW Induction Heat Treatment Machine For Stainless Steel Online Annealing



160KW Induction Heat Treatment Machine For Stainless Steel Online Annealing 0


Induction heat treatment includes induction hardening, induction tempering and induction annealing. Induction heat treatment system combines hardening and temping process with induction heading for high productivity and optimal treat result. Application of induction heat treatments system are chain, bar, screw bar, tube and pipe. Induction Annealing machines mainly be employed in annealing of stainless steel parts,pipes, and other workpieces.



Induction Annealing is one of the heat treatments, different from hardening, annealing cools the material slowly under natural temperature after high-temp heating process. The purpose of annealing is relieving the stress of material to make it toughness and ductile.

  • The advantage of induction heating for annealing process is the effective and precise heating control. It could properly adjust the heating power and duration to meet specific requirement on balance of harden and toughness. Moreover, induction annealing could apply the annealing process in whether entire workpiece or part of it, induction annealing treatment for seam in welding.
  • Our Induction annealing Equipment is widely applied in appliances, tools, tube and pipe production.


160KW Induction Heat Treatment Machine For Stainless Steel Online Annealing 1

Quick Detail:



160KW Induction Heating Machine for Stainless steel online annealing


Application Stainless steel online annealing
Work power 340V-430V Out power 160KW
Product size main : 1000x695x1100mm Certificate CE,SGS
  transformer : 870x430x750mm




Model GYS-160AB (Three phase)
Work power 340V-430V
Maximum input current 240A
Output power 160KW
Fluctuating frequency 10-50KHZ
Output current 400-6500A
The flow rate of cooling water 0.08-0.16Mpa 15L/Min
Water temperature protection point 50C
Product size main : 1000x695x1100mm
transformer : 870x430x750mm
Net weight main : 155kgs
transformer : 95kgs


160KW Induction Heat Treatment Machine For Stainless Steel Online Annealing 2


Advantages of induction heat treatment machine:


1. Fast heating: the minimum rate of heating is less than 1 second (rate of heating is available for adjustment and control).


2. Wide coverage of heating: it can be used to heat various metal parts (replace removable induction coil as per different operating switches).


3. Easy installation: it can be used once it is connected with power source, induction coil as well as water supply pipe and rising pipe; it is small in size and light in weight.


4. Easy operation: you can learn to operate it within several minutes.


5. Fast start-up: it can be started to perform heating operation on condition that water and power supply is available.


6. Low power consumption: As compared with conventional vacuum tube high frequency equipments, it can save the power by approximately 70%. The smaller the size of the work piece is, the lower power consumption would be.


7. High effectiveness: it has such features as uniform heating (it is applicable to adjust the spacing of the induction coil to ensure the appropriate temperature as required by each part of work piece), fast warming and limited oxic horizon, and can guard against any waste after annealing.


8. Comprehensive protection: it has such functions as overpressure, over-current, overheat and water shortage alarm indications as well as automatic control and protection.


9. Controllable temperature: it is applicable to control the temperature for heating work pieces as per the preset heating time, and thereby control the heating temperature at a certain technical point.


10. Comprehensive full load design: it can work continuously for 24 hours.


11. Small size and light weight: it has a weight of only several dozens of kilograms, of which, the limited floor space can effectively save the workshop space.


12. Elimination of high voltage: it requires no step-up transformer which may produce approximately ten thousand voltage, and thus can ensure the maximum safety.


160KW Induction Heat Treatment Machine For Stainless Steel Online Annealing 3

stainless online annealing


160KW Induction Heat Treatment Machine For Stainless Steel Online Annealing 5

Our services

Pre-sale service.

  • Inquiry and consulting service
  • recommend the most suitable for our customers according to their requirements
  • Sample testing support
  • working videos available
  • View our factory

In-sale service.

  • Strictly manufacture the machine, according to relevant technical standards.
  • Take run test, according to relevant equipment test run regulations.
  • Strictly check up the machine, before delivery
  • Delivery on time.

After-sale service.

  • Warranty time: 1year Warranty.
  • Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
  • If any big quality problems occurs out of the guarantee period, we will send maintenance
  • technician to provide visiting service after checking with the customer and charge for a favorable price.
  • We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
  • The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
