DSP 100KW Industrial Induction Heating Equipment For Soldering Quenching

1 set
DSP 100KW Industrial Induction Heating Equipment For Soldering Quenching
Features Gallery Product Description Request A Quote
Features: Energy Saving, Safer, More Efficient, Environmentally,
Product Name: Induction Heat Treatment Machine
Frequency: 1-10KHZ
Power: 100KW
Heating Principle: Magnetic Field Induction Heating
After-sales Service Provided: Engineer On-site Service, Online Support, Video Technical Support
Work Time: Non Stop, 24 Hours A Day
Application: Induction Soldering, Induction Quenching, Induction Annealing, Induction Forging
High Light:

100KW Industrial Induction Heating Equipment


DSP Industrial Induction Heating Equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, SGS, ROHS
Model Number: GYM-100AB
Payment & Shipping Terms
Packaging Details: wooden boxes
Delivery Time: 5-8 workdays after payment
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

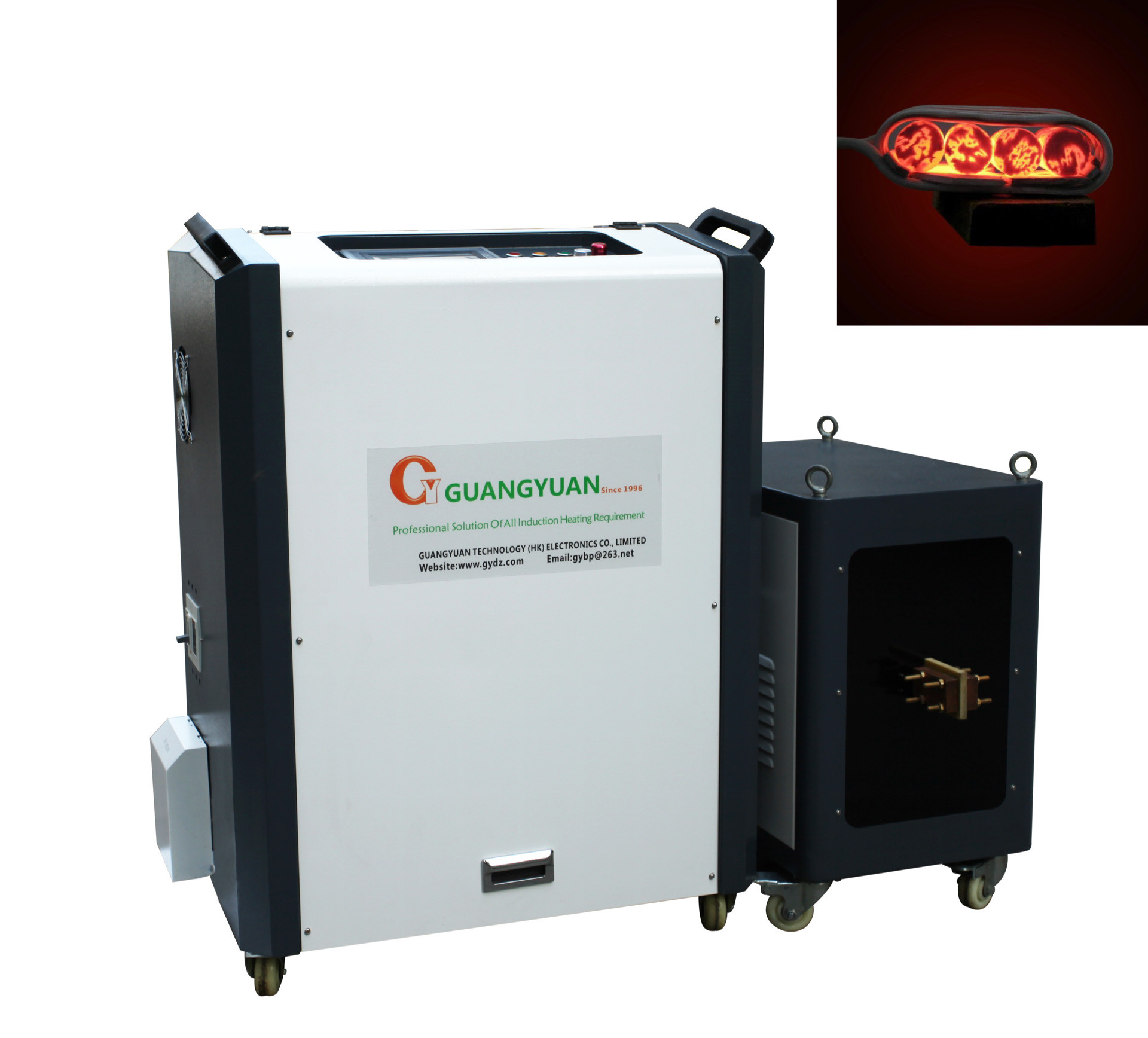

DSP Rapid Heating Induction Heat Treatment Machine For Metal Surface Heating


DSP 100KW Industrial Induction Heating Equipment For Soldering Quenching 0




Surface induction heat treatment in which the workpiece is heated locally by induction current. This induction heat treating process is often used for surface induction hardening, local induction annealing or induction tempering, and sometimes for overall induction hardening and tempering. In the early 1930s, the United States and the Soviet Union began to apply induction heating methods for parts surface induction hardening. With the development of industry, induction heating and induction heat treatment technology has been improved and its application has been expanded.


DSP 100KW Industrial Induction Heating Equipment For Soldering Quenching 1


Model GYMD-100AB (Three phase)
Work power 340v-430v
Maximum input current 150A
Output power 100KW
Fluctuating frequency 1-10KHZ
The flow rate of cooling water 0.15-0.3Mpa 10L/Min
Water temperature protection point 40C
Product size main :874x520x1100 mm
transformer :870x430x750 mm
Net weight main : 115 kg
transformer : 76.5 kg


DSP 100KW Industrial Induction Heating Equipment For Soldering Quenching 2

induction heating machine


DSP 100KW Industrial Induction Heating Equipment For Soldering Quenching 4



Induction shrink fitting technology is widely used in the industries such as aerospace, automotive, and rail industries for all kinds of bearings, gears, bushings, and other metal interference parts for rapid heating assembly, and the loosen hot removal of stuck nuts or bolts. GY induction shrink fitting equipment has the characteristics of automatic temperature control, automatic alarm, automatic demagnetization, fast heating, no damage, no annealing, simple operation, convenience, and so on. It can be assembled in three minutes after electrification. Induction shrink fitting is mainly used for heating various types of metal parts such as bearings, gears, coupling joints, wheel cores, and wheels of railway locomotives, so as to expand them to meet the needs of interference assembly or disassembly. Our portable induction heating machine are used for shrink assembly tasks on ships and offshore platforms, and increasingly for mounting and removing giant nuts and bolts in power station turbines, as well as bearings and shafts in wind turbines.

induction heating machine

DSP 100KW Industrial Induction Heating Equipment For Soldering Quenching 6



As a leading induction heat treating machine manufacturer in China, we have done thousands of induction heat treating solutions since established. And the advantages of the induction heat treating machine are as followings:

Surface induction heat treating:

  • Surface induction quenching makes the workpiece have a hard shell and a tough core. Therefore, it can replace part of the carburizing, induction hardening and tempering, and oxidation processes to save the alloying elements of the material. Due to the heating period, the oxide scale is very small and the deformation is also small.

Local induction heat treating:

  • It can precisely heat the parts where the workpiece needs to be quenched, especially in the case of magnetic conductors and high power densities.

Energy-saving heat treatment:

  • Its energy consumption and carburizing, oxidation, induction hardening, and tempering compared with a great advantage, when the quenching part of the workpiece quality and the overall quality of the greater the difference, its advantage is also more significant. Induction heat treatment often has high added value.

Rapid induction heat treatment:

  • Induction hardening heating time in seconds, generally within 2~10s, the production cycle is also short, especially in the use of self-tempering or random induction tempering, this process is similar to the machining process. For this purpose, modern induction quenching equipment has been arranged in the production line or automatic line.

Clean induction heat treatment:

  • The induction hardening liquid used for induction quenching is generally water or water solution with additives. When induction hardening, there is almost no oil smoke and the working environment is good.

Convenient for mechanization and automation:

  • Mass production of induction hardening parts, generally equipped with step feeding, manipulator to take the workpiece, and robot control sensors and other devices to reduce physical labor.


DSP 100KW Industrial Induction Heating Equipment For Soldering Quenching 7


Pre-sale service.

  • Inquiry and consulting service
  • recommend the most suitable for our customers according to their requirements
  • Sample testing support
  • working videos available
  • View our factory

In-sale service.

  • Strictly manufacture the machine, according to relevant technical standards.
  • Take run test, according to relevant equipment test run regulations.
  • Strictly check up the machine, before delivery
  • Delivery on time.

After-sale service.

  • Warranty time: 1year Warranty.
  • Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
  • If any big quality problems occurs out of the guarantee period, we will send maintenance
  • technician to provide visiting service after checking with the customer and charge for a favorable price.
  • We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
  • The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
