Magnetic Induction Heat Treatment Machine Furnace Environmentally

1 set
Magnetic Induction Heat Treatment Machine Furnace Environmentally
Features Gallery Product Description Request A Quote
Features: Energy Saving, Safer, More Efficient, Environmentally,
Product Name: Induction Heat Treatment Machine
Frequency: 1-10KHZ
Power: 60KW
Heating Principle: Magnetic Field Induction Heating
After-sales Service Provided: Engineer On-site Service, Online Support, Video Technical Support
Work Time: Non Stop, 24 Hours A Day
Application: Induction Soldering, Induction Quenching, Induction Annealing, Induction Forging
High Light:

Induction Heat Treatment Machine Furnace


Magnetic Induction Heat Treatment Machine


Environmentally induction heat treatment furnace

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, SGS, ROHS
Model Number: GYS-60AB
Payment & Shipping Terms
Packaging Details: wooden boxes
Delivery Time: 5-8 workdays after payment
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

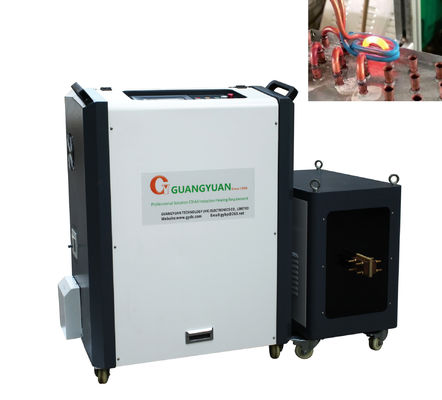

60KW Environmentally Metal Heat Touch Screen Induction Heat Treatment Machine


Magnetic Induction Heat Treatment Machine Furnace Environmentally 0




Induction heating applies electromagnetic induction to conductive materials, like steel, copper, silver, and gold. Coils create electromagnetic fields that cycle through the metal at varying frequencies. Sometimes multiple coils cast multiple fields, creating interconnected eddies of electromagnetism. The rapid cycling of the fields builds up heat inside the material until the integrity of the material fails, and heat build-up changes the properties of the metal.

Magnetic Induction Heat Treatment Machine Furnace Environmentally 1

Magnetic Induction Heat Treatment Machine Furnace Environmentally 2


Model GYS-60AB (Three phase)
Work power 340v-430v
Maximum input current 90A
Output power 60kw
Fluctuating frequency 10-50khz
Output current 400-2400A
The flow rate of cooling water 0.08-0.16Mpa 9L/Min
Water temperature protection point 50C
Product size main :690x640x1060 mm
transformer : 870x430x750 mm
Net weight main : 95 kg
transformer : 79.5kg


Magnetic Induction Heat Treatment Machine Furnace Environmentally 3

induction heating machine


Magnetic Induction Heat Treatment Machine Furnace Environmentally 5



Induction Hardening

Hardens steel parts. Most automotive part casings go through induction hardening and tools like axes and shovels.


Induction Brazing

Joins two pieces of metal together. For example, copper pipes and fitting are heated by brazing during manufacturing until the outside metals fuse.


Induction Melting

Melts metal to precise temperatures. Gold, silver, and copper used in jewelry, circuit board, and other manufacturing is melted to the desired temperature to prevent the loss of alloys


Induction Forging

The metal billet is induction heated prior to the forging process so that it is easily deformed.


Induction Annealing

Increases the flexibility of metal. Induction annealing is used to heat aluminum and steel tubing for coiling.

stainless steel annealingstainless steel annealing

induction weldinginduction quenching

Magnetic Induction Heat Treatment Machine Furnace Environmentally 10


Fast and Repeatable: Induction heating is a high-speed, precise, controlled, and repeatable process, producing metal products that are cleaner and more environmentally friendly. As a result, induction heating plays an integral part in the emerging connected industrial landscape.

Energy Saving and Environmentally :As induction heating is much more efficient and environmentally sound than other heating alternatives, this technology is growing in prominence. It transfers far more energy per square millimeter than a flame, induction takes much less time, heats just one defined material region, and uses much less power for the same work.

Safe and Efficient: The main advantages to using the induction heat procedure for this process are dramatically greater power and material efficiencies, and higher levels of safety, compared with other additive manufacturing methods.

Easy to Operate and Automate: Jobs such as fittings can be done reliably, unit by unit, with no skilled operator required. It has higher heating quality and is easier to automate the production process.

Magnetic Induction Heat Treatment Machine Furnace Environmentally 11


Pre-sale service.

  • Inquiry and consulting service
  • recommend the most suitable for our customers according to their requirements
  • Sample testing support
  • working videos available
  • View our factory

In-sale service.

  • Strictly manufacture the machine, according to relevant technical standards.
  • Take run test, according to relevant equipment test run regulations.
  • Strictly check up the machine, before delivery
  • Delivery on time.

After-sale service.

  • Warranty time: 1year Warranty.
  • Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
  • If any big quality problems occurs out of the guarantee period, we will send maintenance
  • technician to provide visiting service after checking with the customer and charge for a favorable price.
  • We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
  • The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
