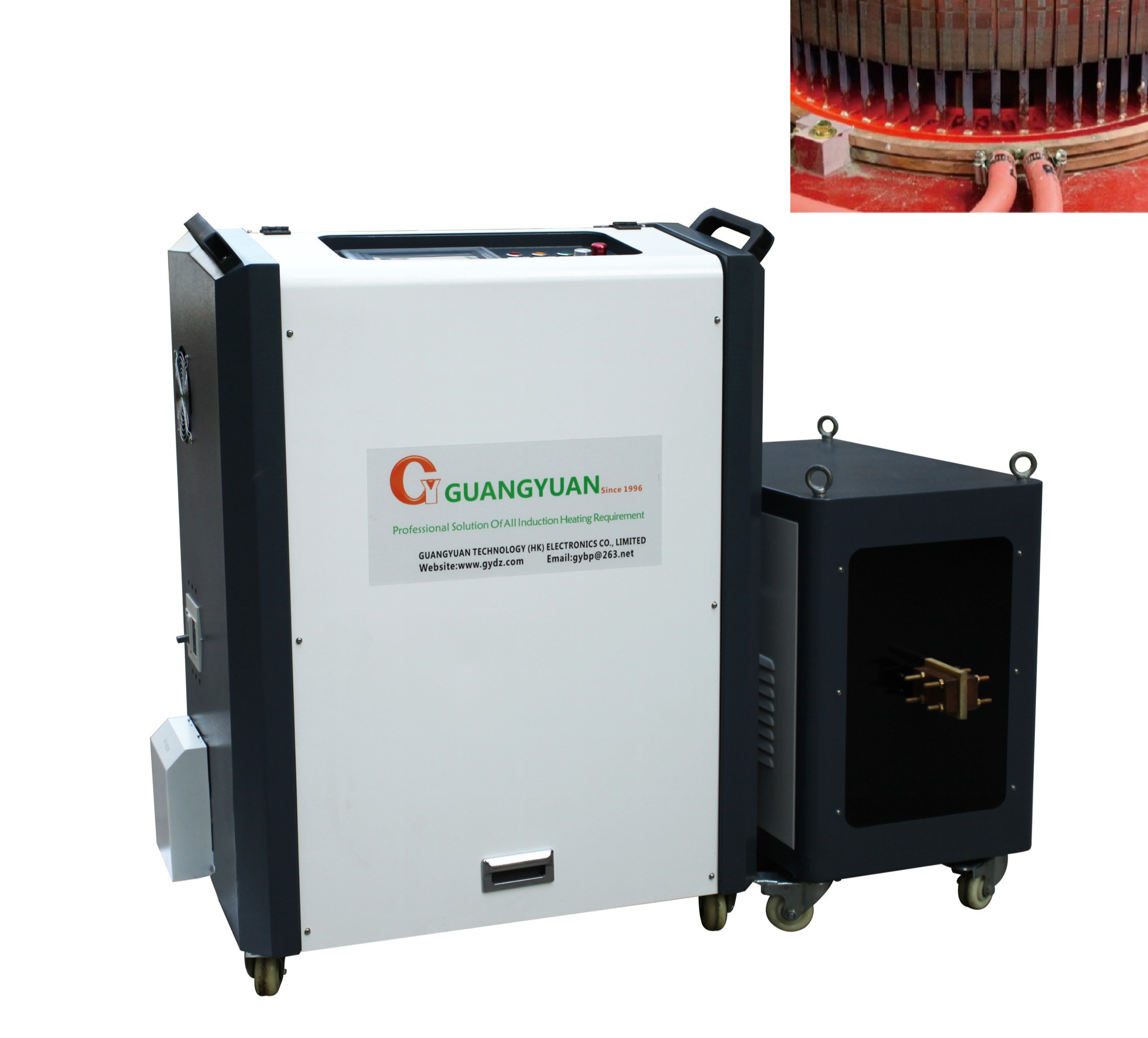

15-1000KW Touch Screen Digital Display Induction Heating Unit with Air Cooling

15-1000KW Touch Screen Digital Display Induction Heating Unit with Air Cooling
Features Gallery Product Description Request A Quote
Material: All Kinds Of Metals
Temperature Range: 0-1800℃
Cooling Method: Air Cooling
Temperature Control Accuracy: ±1℃
Control Mode: IGBT System
Voltage: 180-430V
Safety Protection: Over-temperature, Over-current, Leakage Protection
Display Mode: Touch Screen Digital Display
Basic Infomation
Place of Origin: China
Brand Name: GY
Certification: CE, FCC, ROHS, SGS
Payment & Shipping Terms
Packaging Details: Wooden boxes
Delivery Time: 7 workdays
Payment Terms: 100% TT before shipment
Supply Ability: 500 Sets/month
Product Description

Product Description:

Induction heating is a form of non-contact heating for conductive materials. When alternating current flows through the induced coil, a varying electromagnetic field is generated around the coil, inducing eddy currents in the workpiece. Heat is then produced as these eddy currents flow against the resistivity of the material.


This type of heating is a very fast, efficient, precise and repeatable heat treatment method for metals and other electrically-conductive materials such as steel, iron, brass, aluminum, alloy, copper, stainless steel, tungsten, nickel, precious metals, silver, zinc, gold, silicon carbide, carbon and graphite.


Due to solid-state transistor technology, induction heating is a much more cost-effective option for various applications, such as soldering, induction brazing, heat treating, melting, forging, annealing, quenching, and shrink-fitting. Moreover, its effects are kept under control as the coil itself doesn't get hot.



This heating device has many advantages, including the following:

  • Fast heating: The minimum rate of heating is less than 1 second (rate of heating is available for adjustment and control).
  • Wide coverage of heating: It can be used to heat various metal parts (replace removable induction coil as per different operating switches).
  • Easy installation: It can be used once it is connected to a power source, induction coil as well as water supply pipe and rising pipe; it is small in size and light in weight.
  • Easy operation: You can learn to operate it within several minutes.
  • Fast start-up: It can be started to perform heating operation on condition that water and power supply is available.
  • Low power consumption: As compared with conventional vacuum tube high-frequency equipment, it can save power by approximately 70%. The smaller the size of the workpiece is, the lower the power consumption would be.
  • High effectiveness: It has such features as uniform heating (it is applicable to adjust the spacing of the induction coil to ensure the appropriate temperature as required by each part of the workpiece), fast warming, and limited oxic horizon, and can guard against any waste after annealing.
  • Comprehensive protection: It has such functions as overpressure, over-current, overheat and water shortage alarm indications as well as automatic control and protection.
  • Controllable temperature: It is applicable to control the temperature for heating work pieces as per the preset heating time, and thereby control the heating temperature at a certain technical point.
  • Comprehensive full load design: It can work continuously for 24 hours.
  • Small size and light weight: it has a weight of only several dozens of kilograms, of which, the limited floor space can effectively save the workshop space.
  • Elimination of high voltage: It requires no step-up transformer which may produce approximately ten thousand volts, and thus can ensure maximum safety.

Technical Parameters:

Parameter Value
Display Mode Touch Screen Digital Display
Material All Kinds Of Metals
Voltage 180-430V
Heating Method Induction Heating
Safety Protection Over-temperature, Over-current, Leakage Protection
Control Mode IGBT System
Temperature Range 0-1800℃
Temperature Control Accuracy ±1℃
Cooling Method Air Cooling
Power 15-1000KW



Hot forging is a metalworking process that involves the fabrication of workpieces of different temperatures (dependent on the material) into other shapes using a forging press, along with punch presses, forging machines, or similar equipment. Examples of items commonly formed by hot forging include watch cases and flans, handles, mold accessories, kitchen/tableware, hardware, standard components, fasteners, machine parts, locks, rivets, steel pins, and pins.

Hot fitting is a process that involves the connection of different metals, or of metals and nonmetals, for which heat is used to establish the union. Examples of such unions include welding the copper core of a computer radiator and an aluminum sheet, a steel and plastic tube, an aluminum foil (toothpaste tube) motor rotor, and a tubular electric heating element.

Smelting is the process of melting a metal - typically iron, steel, copper, aluminum, or zinc, plus some noble metals - with heat. It is generally used in large-scale metalworking.


Heat Treatment

Heat treatment is used in the manufacture of hardware tools, such as pliers, wrenches, hammers, axes, and screw and shear tools, as well as for automobile and motorcycle parts, such as crankshafts, connecting rods, piston pins, chain wheels, and lightweight aluminum wheels, as well as electrical tools, for which gears and axes may be employed. Heat treatment is further used in the production of machine-tool components, such as lathe decks and guide rails, hardware metals parts, mold accessories, molds, and machined parts, such as shafts, cams, and chuck and clamp parts.



Braze welding, silver soldering, and brazing are welding techniques utilized for various hardware cutting tools, such as diamond instruments, abrasive tools, drills, alloy saw blades, hard metal cutters, milling cutters, reamers, cutters, and solid pith bits. Welding is also used to connect metals of the same variety or different varieties, for instance, hard toilet and kitchen parts, refrigeration copper fittings, light decorations, mold accessories, hardware handles, egg beaters, alloy steel and steel, steel and copper, and copper and copper. The pot bottom welding technique is mainly employed for welding plain pot bottoms in circular, square, and other irregular shapes, and is also applicable to plain welding of various metals. Braze welding is also utilized for the electric hot-water kettle heating disc, comprising stainless steel flat bases and tubular electric heating elements of various forms.



Annealing is a process used on various stainless steel products, such as basins, cans, folded edges, sinks, and tubes. Other metals may also be annealed, including golf ball heads, cues, locks, kitchen knife handles, blades, pans, pails, and radiators, made of aluminum. Fastener products like screws, half-screws, and steel pins with and without heads can also be annealed. Modulation is used on copper core winding components, such as electric coils, electromagnetic polarities, and insulation tubes.

induction queching

Support and Services:

Induction Heat Treatment Machine Technical Support and Service

Our technical support and service for induction heat treatment machines ensure that your machines are running at their optimal performance. Our experienced technicians are available to help you with any technical questions or issues you may have.

We provide a range of services, including:

  • Installation and commissioning of new machines
  • Regular maintenance and service checks
  • Troubleshooting and repairs
  • On-site technical support
  • On-site training for operators
  • Advice and recommendations for machine optimization

Our team of experts is committed to providing you with the best technical support and service in the industry. Contact us today to find out more about our services and how we can help you with your induction heat treatment machine.


Packing and Shipping:

Packaging and Shipping for Induction Heat Treatment Machine
The Induction Heat Treatment Machine should be packaged in a strong cardboard box. It should be secured firmly inside the box and surrounded by cushioning material such as bubble wrap. All of the accessories should also be included in the box. The box should be clearly labeled with the product name and address of the recipient. A tracking number should be obtained for the shipment. The box should then be shipped using a reputable courier service.
