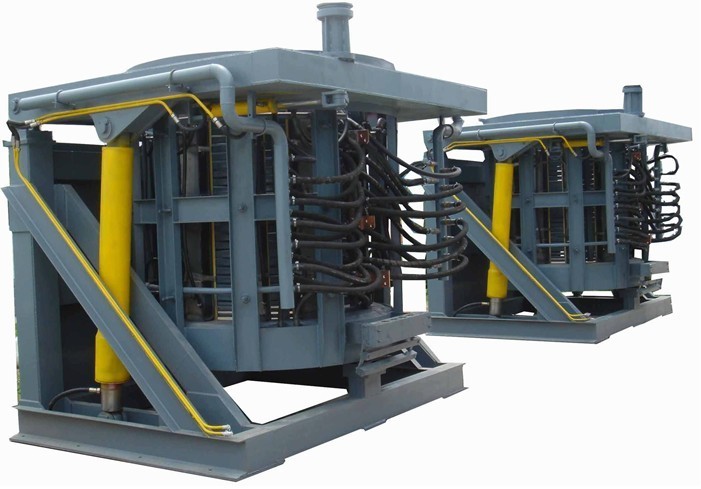

480V All Metals Water Cooling Induction Melting Machine With Crucible

480V All Metals Water Cooling Induction Melting Machine With Crucible
Features Gallery Product Description Request A Quote
Max. Temperature: 1800℃
Melting Furnace: Crucible
Heating Mode: Induction Heating
Safety System: Emergency Stop/Interlock/Ground Fault
Max. Melting Capacity: 10-1000kg/h
Cooling Mode: Water Cooling
Power Supply: 220V/380V/415V/440V/480V
Protection System: Over-Current/ Over-Voltage/ Over-Temperature/ Short-Circuit
High Light:

water cooling induction melting machine


480v induction melting machine


water cooling induction melting furnace

Basic Infomation
Place of Origin: China
Brand Name: GY
Certification: CE, ROHS, SGS, FCC
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 7 workdays
Payment Terms: 100% TT before shipment
Supply Ability: 500set per month
Product Description

Product Description:

Induction melting describes the process that melts metal into liquid in an induction furnace for casting workpieces.

The induction melting furnace is based on the electromagnetic induction heating principle to work. Through electromagnetic induction, it generates heat quickly. Unlike regular heating equipment that heats by container, the induction melting furnace is designed for direct induction heating of material. With an intermediate frequency induction melting furnace for example, the metal material is placed in a quartz crucible as it has no electrical resistance; then when intermediate frequency alternating current passes through the induction coil, it creates dense magnetic field lines, cuts the metal materials held in the crucible, and instantaneously heats and melts the metal.

The significant advantage of induction melting is its high-quality results. The process is free of impurities and uniform, and it also keeps safety and efficiency in mind - the automated induction melting line avoids industrial accidents in operation miss and makes the heating process stable and effective.

Induction melting has been widely used in industry, especially for casting. Our induction melting solutions can be customized for different types of metals - steel, iron, stainless steel, aluminum, brass, and other Non-ferrous metals.



Medium Frequency Induction Melting Machine

The medium frequency induction heating machine is equipped with solid-state IGBT frequency conversion control technologies and provides signals under conditions of overcurrent, water shortage, overheating, over-voltage, short circuit, and phase missing. This greatly improves its reliability.

The machine has functions to display the current, voltage, and timing, which make it easier to understand the working condition and give guidance to induction coil design and capacitance control.

The melting machine is featured by small size, lightweight, only requiring not more than Isqm of space, movable, continuous heating ability of up to 24 hours, and low power consumption, with electromagnetic grinding capability that provides uniform smelting with better heating penetration and even temperature inside the melting metal. Generally, the melting time is within 30-50 minutes per furnace, which takes 50-60 minutes to heat up when the furnace is fully cooled, and around 20-30 minutes when the furnace is already hot.


Main Characteristics

The melting furnace is environmentally friendly and has more uniform melting. It is intelligent and can diagnose itself comprehensively, with independent protection. It requires less energy and is 10-30% more energy-efficient than traditional induction heating equipment. It is fairly easy to install and simple to operate, with a ready-to-use design and instant start. As it provides voltage output at just half of traditional induction heating devices, the heating effect is better, but safer and more efficient.


Technical Parameters:

VS Resistance heated furnace:

It is known for its high heat efficiency and fast melting process. While its smaller size provides more energy saving, up to 30%, the resistance and silicon carbide stock are prone to be damaged easily.


VS Coal, Gas, diesel furnace:

This type of furnace is beneficial to the adjustment of solution composition and temperature. The foundry bubble can be reduced from 1/3 to 1/4, which also results in the reject rate going down from 1/2 to 2/3. It also has better mechanical strength compared with other furnaces. The use of coal and gas furnaces can lead to oxidation of burning as well as the addition of impurities in aluminum alloy due to the use of cast-iron crucibles. Induction melting can overcome those two problems by melting scrap and small pieces of material and reducing environmental pollution.


VS SCR or Frequency Melting Furnace:

Similar to resistance melting furnaces, this kind of furnace also has the advantage of high heat efficiency and small size, which provides more energy savings (above 20%). The electromagnetic stirring effect is slight, so the service life of the crucible is also extended. It can even adjust the frequency to achieve power regulation, which causes its faster melting speed and the reduction of burning loss. It is especially suitable for heating of stainless steel, copper, silicon, aluminum, and other non-magnetic materials.

Such as equipment 70KW melting aluminum, cost of melting IT:

For such 70KW melting aluminum, the cost of melting is 70% for a resistance melting furnace, 70% for a frequency melting furnace, 60% for a diesel melting furnace, and 80% for an SCR melting furnace.



Metals Melting:

GY induction melting equipment is capable of melting any type of metal for various industrial applications. We are often contacted by Foundries, Metals Manufacturers, Mining and Metalworking Companies, as well as for other large-scale custom induction melting applications.


Precious Metals Melting & Refining:

We offer a range of specialized induction melting equipment for the Jewelry, Mining, and Refining industries



Smelting is an essential process for the production of metal. Our smelting equipment helps successfully extract all types of metals from ores in a fast and efficient way.


Custom Melting Projects:

You can contact GY for a custom induction melting solution. Our equipment can be manufactured and automated for both small and large-scale projects.


How to Choose the Suitable Melting Crucible:

In order to improve the silver melting furnace’s working efficiency and serving life, we will choose durable crucibles to save you a lot. Below I will show you how to choose a suitable induction melting crucible:

  • Magnesia crucible: It is mainly used for smelting iron and steel.
  • Graphite crucible: It is mainly used for the smelting of non-ferrous metals such as copper, aluminum, silver, gold, and silver crucible with pure graphite.
  • Whitestone crucible: It is mainly used for high melting point metal melting such as titanium alloy, and nickel alloy.
  • Clay-bonded graphite crucible: It is suitable for smelting aluminum alloy and copper alloy.
induction melting


GY is a leading manufacturer of induction melting machines, providing you with Induction Melting Devices, Induction Melting Systems, and Melting Systems for Induction with reliable performance and high quality. Our induction melting machines are certified with CE, ROHS, SGS, and FCC, and come with a minimum order quantity of 1 SET. The price is negotiable and the packaging details are wooden boxes. We guarantee a 7-workday delivery after your payment and can provide 500 sets per month. The maximum melting capacity of our induction melting machines is 10-1000kg/h, and its maximum temperature is 1800℃. The power supply is 220V/380V/415V/440V/480V, and it has water cooling mode and touch screen display system.


Support and Services:

We provide technical support and services for our induction melting machine. Our technical support team will provide customers with product information, maintenance tips, troubleshooting guidance, and other related services. We also provide regular maintenance and repair services for our induction melting machine. Our experienced technicians can inspect and diagnose any problems and provide necessary repairs and replacements. If necessary, our technicians can also provide on-site repair services. We are committed to providing our customers with the highest level of service and support to ensure their satisfaction.
