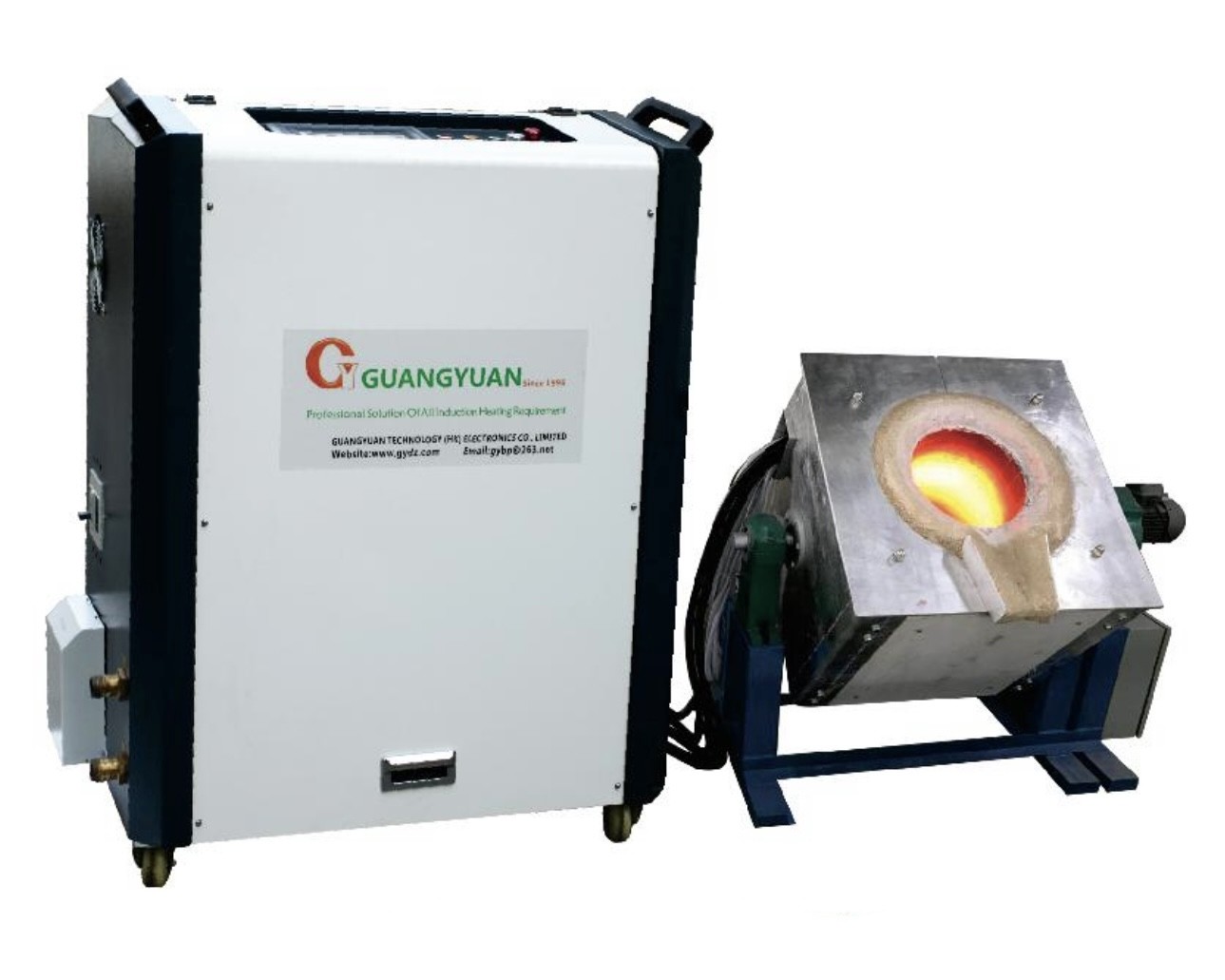

DSP Full Digital Control Induction Melting Machine 100KW Medium Frequency
INDUCTION MELTING FURNACE:
Induction melting machine mainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to the melting of iron, steel, copper, aluminum, zinc as well as various noble metals.
The overall structure design is reasonable, the control form is simple and easy to operate, the equipment allows the matching of the load and the power supply to be flexible, and there is no need to consider the influence of the inverter output distributed inductance on the control,and there is no need to bare back pressure, and no need to bear the part caused by this factor which damage cost of the components avoids the failure rate from the source.
The energy loss of current-type resonant power supply mainly includes: induction coil copper loss, additional loss of power supply equipment, furnace lining heat loss, radiation heat loss, etc.; the unique circuit design of voltage-type resonant power supply can reduce the current in the inductance coil and improve the efficiency. Line power factor, which plays an important role in reducing energy consumption,and truly highlights the advantages of energy saving.
Therefore, voltage-type resonant DSP+FPGA fully digitally controlled forging induction heating equipment will have obvious advantages in this field.
MAIN CHARACTERISTICS OF THE MELTING FURNACE:
SIX PROTECTION:
THE PARAMETERS OF THE INDUCTION MELTING MACHINE GYMD-100KW:
| Model | GYMD-100KW (Three phase) |
| Work power | 340v-430v |
| Maximum input current | 150A |
| Output power | 100KW |
| Fluctuating frequency | 1-10KHZ |
| The flow rate of cooling water | 0.15-0.3Mpa 10L/Min |
| Water temperature protection point | 40C |
| Product size | main :874x520x1100 mm |
| Net weight | main : 115 kg |
ABOUT GY:
We have established an R&D system. It is supported by advanced engineers and professional workers, who are especially engaged in researching and developing the machinery of middle or high frequency induction heating and high frequency inverter electrolysis and galvanization power supply. Since we owned strong technique development capability, our factory has been insisting on producing new product and new craftwork to assure our leading position on technique in this field.
Under the effort of several years, our factory has produced series of high quality products in various categories. We can also exclusively produce these products on your requirement to meet you need. Our middle or high frequency induction heating equipment is produced for special voltage condition of some countries. For instance, there is single-phase 110V, three-phase 220V induction heating equipment for America and Japan and three-phase 415V, 440V induction heating equipment for such southwestern Asia countries as Malay and Thailand.
