IGBT Medium Frequency Induction Melting Furnace For Steel Iron Silver Melting

IGBT Medium Frequency Induction Melting Furnace For Steel Iron Silver Melting
Features Gallery Product Description Request A Quote
Product Name: Induction Melting Machine
Control Method: Full Digital Precision Control
Melting Materail: Gold, Platinum, Palladium, Sliver
Key Point: Energy Saving,HIgher Output
Voltage: 340V-430V
Warranty: 12 Months
After Sale Service: Online Technical Support, Door To Door Service
Application: Melting Steel, Iron, Sliver, Gold, Copper And Other Metals.
High Light:

IGBT Medium Frequency Induction Melting Furnace


Steel Medium Frequency Induction Melting Furnace


Silver medium frequency induction furnace

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, SGS, ROHS
Model Number: GYMD-160KW
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 5-8 workdays
Payment Terms: T/T
Supply Ability: 500 SETS per month
Product Description

IGBT Transistor High Energy Saving Induction Melting Machine For Metals Melting

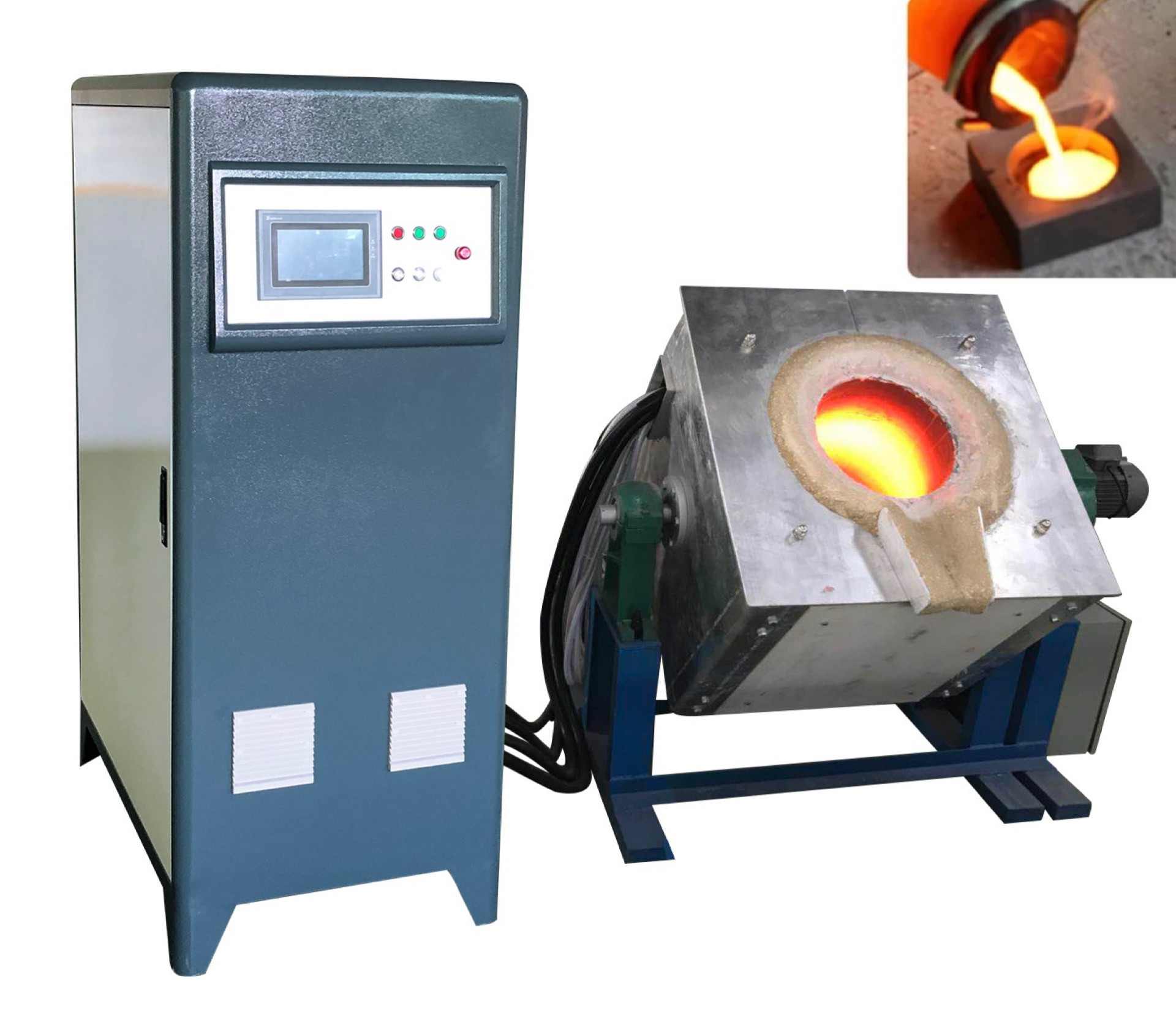

IGBT Medium Frequency Induction Melting Furnace For Steel Iron Silver Melting 0



IGBT intermediate frequency IGBT induction melting furnace is a series resonant medium frequency induction melting furnace, its inverter component is a new type of IGBT module (insulated gate bipolar transistor, Germany production), it is mainly used for melting ordinary carbon steel, alloy steel, cast steel, non-ferrous metals. It has the advantages of fast melting speed, energy saving, and low harmonic pollution.


IGBT Medium Frequency Induction Melting Furnace For Steel Iron Silver Melting 1
The parameters of the 160KW  Induction Melting Machine For Metal Melting :

Model: GYMD-160KW

Max output power: 160KW

Smelting weight of steel, iron: 100kg

Smelting weight of aluminum, bronze, and other precious metals: 200kg


Specification Smelting weight of steel and iron Smelting weight of alumium, bronze, and other precious metals
GYM-40KW 20KG 40KG
GYM-60KW 30KG 60KG
GYM-100KW 50KG 100KG
GYM-160KW 100KG 200KG
GYM-200KW 150KG 300KG
GYM-250KW 200KG 400KG


The parameters of the GYMD-160KW:


Model GYMD-160KW (Three phase)
Work power 340V-430V
Maximum input current 240A
Output power 160KW
Fluctuating frequency 1-10KHZ
The flow rate of cooling water 0.08-0.16Mpa 12L/Min
Water temperature protection point 50C
Product size 1090x650x1610 mm
Net weight 265 kg


How to choose a induction melting furnace?


When melting different kinds of materials will choose the different induction melting systems, in total, you can refer to the following standards to choose the suitable induction melting furnace.

The relative power of high melting point in metal materials is larger, and the relative power of low melting point is smaller; Low resistivity selection of power, high resistivity selection of power is small. Also, the longtime continues working time, the larger the induction melting power should choose. The faster the heating speed requests, the need to choose larger induction melting furnace power levels.

You can please let our team know your melting material and melting speed requests so that we can suggest you the complete induction melting systems. Thanks.

IGBT Medium Frequency Induction Melting Furnace For Steel Iron Silver Melting 2

induction melting furnace


IGBT Medium Frequency Induction Melting Furnace For Steel Iron Silver Melting 4


  • Non-ferrous metal induction melting: mainly used in induction smelting steel, alloy steel, special steel, cast iron, and other ferrous metal materials as well as stainless steel, zinc, and other non-ferrous metal materials smelting, can also be used for copper, aluminum and other non-ferrous metal smelting and heating, heat preservation, and can be operated in tandem with the blast furnace.
  • Used to induction forging heating: used in bar, round steel, square steel, steel plate of the heating, temperature, quenching material on-line heating, local heating, metal forging online (such as connecting rod, gears, half shaft bearing forging), extrusion, hot rolling, shear heating, heat spraying, in front of the hot assembly and overall metal materials of tempering, annealing, tempering, etc.

Induction melting


IGBT Medium Frequency Induction Melting Furnace For Steel Iron Silver Melting 6



Product startup performance is very good:

  • IGBT induction melting furnace adopts series resonant circuit to completely solve the problem of SCR if starting difficulty. the power supply is using IGBT power imports components, more integration, miniaturization, The effective output power reaches more than 90%, saving energy, saving 40% energy than the traditional SCR medium frequency! Melting time 30-40 minutes per furnace

The IGBT induction melting furnace produces almost no high harmonics:

  • It will not pollute the power grid, transformers, switches do not heat, and will not interfere with the operation of electronic equipment in the factory.

The product has high reliability:

  • The main components are all the components produced by the world-famous factory, IGBT transistor is produced by Siemens in Germany.

High energy-saving functions, the IGBT induction melting furnace water circulation system adopts a water heat exchanger and internal and external water circulation system. The internal circulation is distilled water, in long-term use, the water in the equipment does not scale and does not block, greatly reducing the fault, and save maintenance costs.


The product can always maintain constant power output in the induction smelting process.

  • Thyristor medium frequency power supply by regulating the power, and energy-saving IGBT transistor intermediate frequency power supply using frequency and power, it is not affected by how much burden and lining thickness, keep constant power output in the whole smelting process, especially for the production of stainless steel, copper, aluminum, etc when not in permeable material, more show its superiority, fast melting speed, burning less burden element, reduce the casting cost.


IGBT Medium Frequency Induction Melting Furnace For Steel Iron Silver Melting 7


GY Technology Corporation History


GY Technology Corporation was founded in 1996. The company was started with the main objective of providing superior service and innovative products for the induction melting and heating industry. GY had developed many years of research and is committed to providing customers with all kinds of medium frequency, high frequency, super audio frequency,ultrahigh frequency induction heating equipment, and automation equipment. We provide solutions for project planning, development, design, manufacturing and comprehensive after-sales service according to your needs. One-stop solutions for customer heat treatment needs.The lates t DSP+FPGA all-digital control system products provide more professional, more accurate solutions and personalized high-quality products for many users on the road of innovation, transformation and transformation break throughs.


How your business can benefit from our services


Implementing an GY induction solution will help reduce manufacturing costs, increase energy efficiency, improve safety and meet lean manufacturing objectives. Our technical support and maintenance services include preventative maintenance, equipment start-up and training, on-site or in-house repairs, and extended warranties. Above all, our team will help find solutions for the most complex heating applications and manufacturing system requirements.
