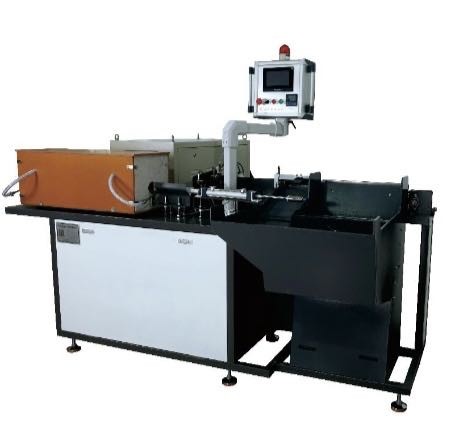

380V Magnetic Induction Forging Machine Equipment Energy Saving

380V Magnetic Induction Forging Machine Equipment Energy Saving
Features Gallery Product Description Request A Quote
Product Name: Induction Forging Machine
Heating Principle: Induced Magnetic Field To Heating
Feeding System: Pulling Feeder Machine
Forging: Brass, Copper, Steel Bar Forging
Frequency: Medium Frequency 1-20khz
Warranty: 1 Year
After Sale Service: Online Technical Support, Door To Door Service
Feature: Fast Heating,Environmentally Friendly,Energy Saving
High Light:

380V Induction Forging Machine


Magnetic Induction Forging Machine


Energy Saving induction forging equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, SGS, ROHS
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 5-8 workdays
Payment Terms: T/T
Supply Ability: 500 SETS per month
Product Description

1-20KHZ Medium Frequency Induction Forging Machine For Steel Bar Rod


380V Magnetic Induction Forging Machine Equipment Energy Saving 0

Induction forging is a quick and energy-efficient process used to heat materials using induction heating prior to forming them to your desired shape. Whether it be billet, bar, slab, or other, the induction forging processes delivers superior productivity, part quality, equipment reliability, and work cell flexibility.

Your productivity is improved due to rapid heating, instant startup, optional hold features, ease of integration into an existing process, reduced down-time, reduction of parts in process, and by the fact that the machine can control production rate, not the operator. Induction forging can dramatically improve the consistency of part quality, with significantly reduced scale. With this reduced scale comes substantial decreases in steel (or other metals) consumption and increased die life. The strong reliability factor of induction heating systems is a major advantage, as is the flexibility to often fit within existing work cells.

380V Magnetic Induction Forging Machine Equipment Energy Saving 1



  • Wide frequency range: 1KHZ-20KHZ, according the diameter of working piece to choose suitable frequency.


  • When heating a whole piece of material, the length of induction coil can be made from 500mm -1m, when heating multiple pieces, better penetrating results can be guaranteed.


  • It adopts continuously heating method, with uniform load in induction coil, it can solve the problem of great voltage change in output power during heating process when the temperature of work piece reach 1100°C from room temperature, by this way, actual output power can be always above 95% efficiency, thus the machine is effectively used.


  • When heating bronze, aluminum and other nonferrous metal, by suitable design of induction coil and capacitance, the actual output power of machine can be above 85% efficiency than calculated.


  • Compare with controllable silicon frequency machine, our equipment is of small size, easy maintenances, and can save power by approximately 15--20%.




The equipment includes medium frequency induction heating machine, worktable, induction coil, feeding machine, infrared tempreature detector and some other parts.



380V Magnetic Induction Forging Machine Equipment Energy Saving 2

Bar Diameter 15~30(mm) 15~50(mm) 20~50(mm) 20~50(mm) 25~80(mm) 25~100MM 25~110MM 40~120(mm) 40~140(mm)
Production Rates 0.1~0.12(T/h) 0.2~0.25(T/h) 0.2~0.25(T/h) 0.2~0.3(T/h) 0.3~0.37(T/h) 0.4~0.6(T/h) 0.4~0.65(T/h) 0.7~0.8(T/h) 0.8~0.9(T/h)
Output Power 40KW 80KW 100KW 120KW 160KW 200KW 250KW 300KW 400KW
Input Current 60A 120A 150A 180A 240A 300A 375A 450A 600A
Work Frequency 1~20KHZ
Work Power 380V/50~60HZ 3phases
Duty Cycle 24Hours non-stop
Dimension Customs Design depends on bar size



380V Magnetic Induction Forging Machine Equipment Energy Saving 3




1. Much shorter heating times, minimizing scaling and oxidation

2. Easy and accurate temperature temperature control. Parts at temperatures outside specifications can be detected and removed

3. No time lost waiting for the furnace to ramp up to the required temperature

4. Automated induction heating machines require minimal manual labor

5. Heat can be directed to one specific point, which is highly important for parts with only one forming area.

6. Greater thermal efficiency – heat is generated in the part itself and does not need to be heated in a large chamber.

7. Better working conditions. The only heat present in the air is that of the parts themselves. The working conditions are much more pleasant than with a fuel furnace.


380V Magnetic Induction Forging Machine Equipment Energy Saving 4



Induction forging bar and billet furnace is widely used in various industries. The following are some of the applications of induction forging:

1. Automotive industry: Induction forging is used in the production of automotive parts such as gears, axles, and crankshafts.

2. Aerospace industry: Induction forging is used in the production of components for aerospace vehicles like aircraft, space shuttles and satellites.

3. Construction industry: Induction forging is used in the production of reinforcing bars, bolts, and nuts used in construction.

Induction forging


380V Magnetic Induction Forging Machine Equipment Energy Saving 6

We have established an R&D system. It is supported by advanced engineers and professional workers, who are especially engaged in researching and developing the machinery of middle or high frequency induction heating and high frequency inverter electrolysis and galvanization power supply. Since we owned strong technique development capability, our factory has been insisting on producing new product and new craftwork to assure our leading position on technique in this field.


Under the effort of several years, our factory has produced series of high quality products in various categories. We can also exclusively produce these products on your requirement to meet you need. Our middle or high frequency induction heating equipment is produced for special voltage condition of some countries. For instance, there is single-phase 110V, three-phase 220V induction heating equipment for America and Japan and three-phase 415V, 440V induction heating equipment for such southwestern Asia countries as Malay and Thailand.


380V Magnetic Induction Forging Machine Equipment Energy Saving 7
