Temperature Controlled Induction Melting Machine For Gold, Platinum, Palladium, Silver
INDUCTION MELTING MACHINE:
Induction melting is the process of heating metal using an induction melting furnace to bring the temperature to its melting point and finally melting the metal. An induction melting furnace usually includes an induction heating power supply and crucible. Induction heating power supplies provide heating energy. Metal is then placed inside the crucible. Metals that can be melted include ferrous metals (iron, steel) and non-ferrous metals (copper, aluminum, gold, silver, lead, tin, etc.).
Induction melting solves complex industrial problems, such as using high melting-temperature alloys, like titanium, nickel-based alloys, and stainless steel. Faster than traditional fusion, induction melting ovens require as little as an hour. Single-touch operations considerably cut the cost of human labor and cycle time.

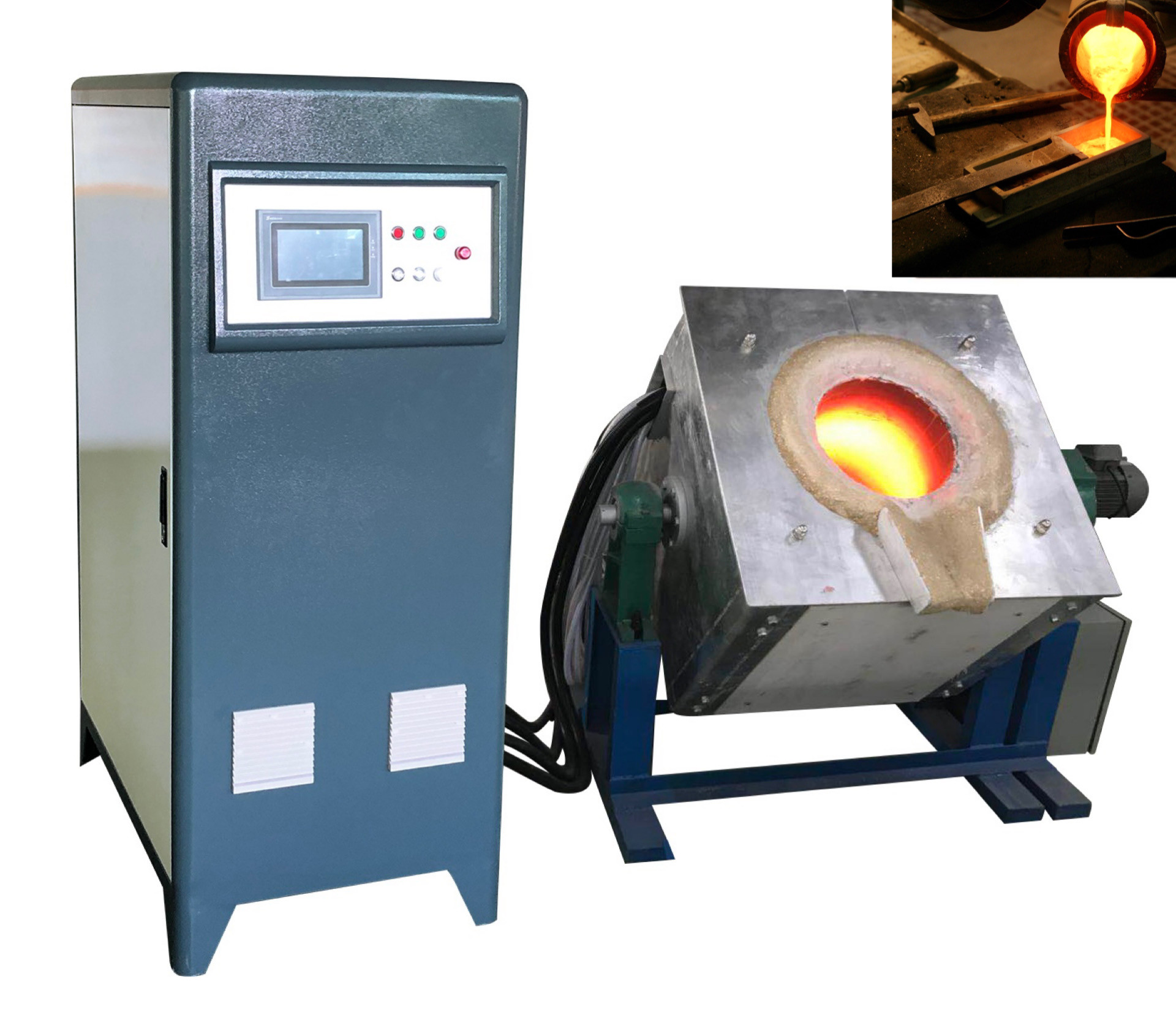

The parameters of the 160KW Induction Melting Machine For Metal Melting :
Model: GYMD-160KW
Max output power: 160KW
Smelting weight of steel, iron: 100kg
Smelting weight of aluminum, bronze, and other precious metals: 200kg
| Specification | Smelting weight of steel and iron | Smelting weight of aluminum, bronze, and other precious metals |
| GYM-25KW | 8KG | 20KG |
| GYM-40KW | 20KG | 40KG |
| GYM-60KW | 30KG | 60KG |
| GYM-100KW | 50KG | 100KG |
| GYM-160KW | 100KG | 200KG |
| GYM-200KW | 150KG | 300KG |
| GYM-250KW | 200KG | 400KG |
The parameters of the GYMD-160KW:
| Model | GYMD-160KW (Three phases) |
| Work power | 340V-430V |
| Maximum input current | 240A |
| Output power | 160KW |
| Fluctuating frequency | 1-10KHZ |
| The flow rate of cooling water | 0.08-0.16Mpa 12L/Min |
| Water temperature protection point | 50C |
| Product size | 1090x650x1610 mm |
| Net weight | 265 kg |
APPLICATIONS OF INDUCTION MELTING:
Jewelry – GY’s Induction melting equipment meets the requirements of major manufacturers in the Jewelry Industry and can produce casts in all precious metals–gold, platinum, palladium, silver–as well as nonprecious metals such as stainless steel, titanium, and other metallic alloys.
Academic & Research – High-frequency induction heating devices are typically preferred choices for academic research applications. At GY, our R&D teams help meet your requirements by considering every parameter of your project.
Foundries & Metalworking – Induction melting is this industry’s favored technique, providing a safe, energy-efficient, and cleaner process. Induction melting provides fast, effective, and repeatable results.
Semiconductor & Crystal Growing – In the manufacturing of semiconductors and crystal growth applications, the stability of induction melting has been a favorite technique in various crystal growing processes.
Aerospace and Defense – The aerospace and defense industries have specifications that make induction melting a preferred solution to many of their production requirements. GY has a wealth of experience developing the most challenging Induction Heating applications and manufacturing system requirements.
THE ADVANTAGES OF THE INDUCTION MELTING FURNACE:
GY Technology Corporation History
GY Technology Corporation was founded in 1996. The company was started with the main objective of providing superior service and innovative products for the induction melting and heating industry. GY had developed many years of research and is committed to providing customers with all kinds of medium frequency, high frequency, super audio frequency, ultrahigh frequency induction heating equipment, and automation equipment. We provide solutions for project planning, development, design, manufacturing, and comprehensive after-sales service according to your needs. One-stop solutions for customer heat treatment needs. The latest DSP+FPGA all-digital control system products provide more professional, more accurate solutions and personalized high-quality products for many users on the road of innovation, transformation, and transformation breakthroughs.
How your business can benefit from our services
Implementing a GY induction solution will help reduce manufacturing costs, increase energy efficiency, improve safety, and meet lean manufacturing objectives. Our technical support and maintenance services include preventative maintenance, equipment start-up and training, on-site or in-house repairs, and extended warranties. Above all, our team will help find solutions for the most complex heating applications and manufacturing system requirements.
