Product Name: Medium Frequency Induction Heating Machine
Control Method: Full Digital Precision Control
Work Time: Continuous 24 Hours Per Day
Frequency: 1-10KHZ Medium Frequency
Power: 500KW
Warranty: 1 Year
After Sale Service: Online Technical Support, Door To Door Service
Major Features: Fast Heating, High Output, Enviromental Friendly
High Light:

Medium Frequency Induction Heating Machine Hardening


500KW Medium Frequency Induction Heating Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, SGS, ROHS
Model Number: GYMD-500KW
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 5-8 workdays
Payment Terms: T/T
Supply Ability: 500 SETS per month
Product Description

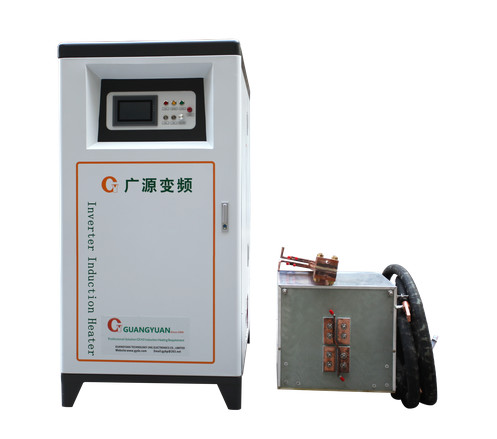

DSP Digital Control Medium Frequency Induction Hardening Machine For Hardening
500KW Industrial Medium Frequency Induction Heating Machine For Hardening 0



Induction heating, an applied energy process, is a selective, noncontact heating method that can be performed in air on the shop floor as well as under a protective atmosphere or in a vacuum furnace. Induction heating involves an electrically conductive material such as steel (the workpiece), an induction power source, an induction coil assembly (usually copper), and the ability to quench.

Induction heating requires a power source. A coil assembly is attached to the power source, and the workpiece is placed inside the coil. Current from the power source flows through the coil, creating invisible lines of force that issue from the coil. These lines of force induce eddy currents in the workpiece, resulting in heat. Parts can be heated to a broad range of temperatures before quenching, depending on the desired outcome.

Most notably used in the automotive industry, induction heating has several key benefits. Long process times and high surface temperatures are not required, since heat is generated within the workpiece itself, not transferred by radiation or convection. Induction heating’s quick processing time is a significant advantage for heat treaters working with high-volume parts.

500KW Industrial Medium Frequency Induction Heating Machine For Hardening 1
THE PRAMETERS OF 500KW Industrial Medium Frequency Induction Heating Machine For Hardening:

Model GYMD-500KW
Work power 340V-430V
Max input current 750A
Max output power 500KW
Fluctuating frequency 1-10KHZ
The flow rate of cooling water 0.15-0.3Mpa 25L/Min
Water temperature protection point 40C
Product size 1750x850x1800 mm
Net weight 620 kg



Main Parts Introduction:

  • Germany SIEMENS INFINEON IGBT Module. ( oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )
  • Japan Nichicon electrolytic capacitor. ( filter capacitor )
  • Imported transistor integrated block.
  • All water pipe use thermostability, High pressure resistance best quality material.
  • Main card, signal circuit, drive circuit board,control circuit board and components are adopted:Toshiba, Hitachi,Motorola, China's top manufacturers.
  • International advanced all-solid-state semiconductor power devices.
  • Technical advantage:perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.
  • Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency

500KW Industrial Medium Frequency Induction Heating Machine For Hardening 2
DSP induction heating machine

500KW Industrial Medium Frequency Induction Heating Machine For Hardening 4



 1. Small size, light weight, no high pressure equipment, small footprint and movable operation;


 2. Less power consumption and saving cooling water;


 3. Fast heating and less oxide layer;


 4. According to the size of the power, the frequency band is divided into a variety of models, customers can be selected according to the process requirements, in order to obtain a satisfactory performance price ratio;


 5. The installation is simple, the operation is convenient, the user only needs to take ten minutes to learn the whole operation process;


6. Fault detection and protection functions are complete: The perfect fault detection and protection circuit monitors the faults of water shortage, overheating, over-voltage, over-current and lack of faults in real time, and responds quickly. The fault causes are displayed on the display in real time and synchronized with the indicator light. In addition, it can also be output by the output port. Relay signal for external system coordination work.


7. Resonant frequency automatic tracking system: It completely solves the shortcomings of analog system frequency tracking and ensures the stability of IGBT resonant system; it can keep the output current or power unchanged even if the power grid fluctuates, and ensure that IGBT always works at zero current switch (ZCS) under any working condition. In the state, the IGBT is in the best working state, the power consumption is the smallest, and the whole machine is the most efficient;


8. Friendly man-machine interface: Human-computer interaction can be selected in a variety of ways, LED indicator or digital tube display, touch screen display and control, text screen display, customers can choose as needed; from the function realization and operation settings, the traditional mechanical button panel is fully covered. Make operation and maintenance easier, more intuitive and more convenient;


9. Hardware isolation interface: It is compatible with existing PLC on the market, which is beneficial to customers' functional transformation of existing PLC systems and further expansion of automation systems.


10. Remote communication interface: With RS-232/RS-485/CAN communication interface, it can realize multi-machine network monitoring and control. The default RS485 adopts the common MODBVS communication protocol; 4-20MA or 0-10V interface can support closed-loop control with external system, such as temperature Closed loop control system.


11. Zero power start: zero voltage output of start and standby, no need for false load support.


12. Working mode: you can choose constant current, or constant power, you can also do constant voltage source output.


13. The device is equipped with a striking red emergency stop button: When an emergency occurs, you can quickly press this button.

Stop the work of the equipment and use it to achieve protection measures.


14. The internal components of the equipment are reasonably laid out, and the main control circuit board is placed on the weak current side to avoid interference of the strong electricity to the control circuit and improve the control precision;


15, Electromagnetic induction heating power supply should have remote control function, and use digital circuit control, power adjustment can be adjusted from 0% to 100% resolution using 0.1% level or 0. 01% level output stability can reach 0. 3% or 0. 025%; At the same time, the digital PID temperature control module can be configured to preset the target temperature of the ( (the temperature measurement method is infrared temperature measurement or thermocouple temperature measurement), automatically complete the power adjustment during heating, and control the temperature. The precision is + 1 ℃ .


GuangYuan series new DSP series Medium frequency, Super-audio frequency, High frequency and Ultrahigh frequency induction heating equipment adopts DSP+FPGA structure with all-digital high-efficiency and precise control technology, which can automatically track the resonant frequency and ensure that IGBT is always in any situation. ZCS or ZVS is the soft-switching state, which makes the IGBT work state optimal, its own power consumption is smaller, and the whole machine is more efficient. It completely solves the shortcomings of the analog circuit, and ensures the stability of the whole system. The external interface and simple human-machine interface make the connection between the equipment and the production line more convenient.


500KW Industrial Medium Frequency Induction Heating Machine For Hardening 5



The vigorous development of the auto industry has brought unprecedented development opportunities to the auto parts industry. Induction heating technology is also being used more and more widely in the field of automobile manufacturing.

In terms of smelting, casting is a metal processing method that is easy to shape. The casting method can be used to make parts of various sizes and complex shapes on automobiles. It can be said that the best use is made in the development of the automobile industry. Almost all casting processes can do their best in the automobile industry.

The main smelting processes used in the production of foundry auto parts at home and abroad are cupola smelting process, intermediate frequency induction electric furnace smelting process and cupola-medium frequency induction electric furnace dual smelting process. Induction melting furnaces are also gaining in the foundry industry due to their technical advantages.

In terms of heating, according to statistics, in the former Soviet Union, induction heat-treated parts in the automobile industry accounted for 40% to 45% of heat-treated parts. The application and development of induction heating technology is self-evident today.

500KW Industrial Medium Frequency Induction Heating Machine For Hardening 6

500KW Industrial Medium Frequency Induction Heating Machine For Hardening 7

GY Induction has been engaged in manufacturing of induction heating machine for 27years. At present, there are currently more than 10,000 GY induction heating machines working all over the world. GY induction heating machines are widely used in mechanical forging heating processing, industrial heat treatment manufacturing, tool induction brazing manufacturing, and other fields. Based on the principles of induction technological updates and customers' need, GY induction heating has always been strving to produce industrial induction heating machines with GY Induction Heating's own characteristics and independent core technologies in the induction heating industry. With the upgrading of induction heating equipment from generation to generation, as well as our rich experience in induction heating industrial applications, we serve end customers with high quality industrial induction heating machines all over the world. Taking "win-win with customers" as our value foundation, GY Induction Heating, with our complete R&D designs, project solutions, production team, and after-sales support, are looking forward to cooperating with you.
